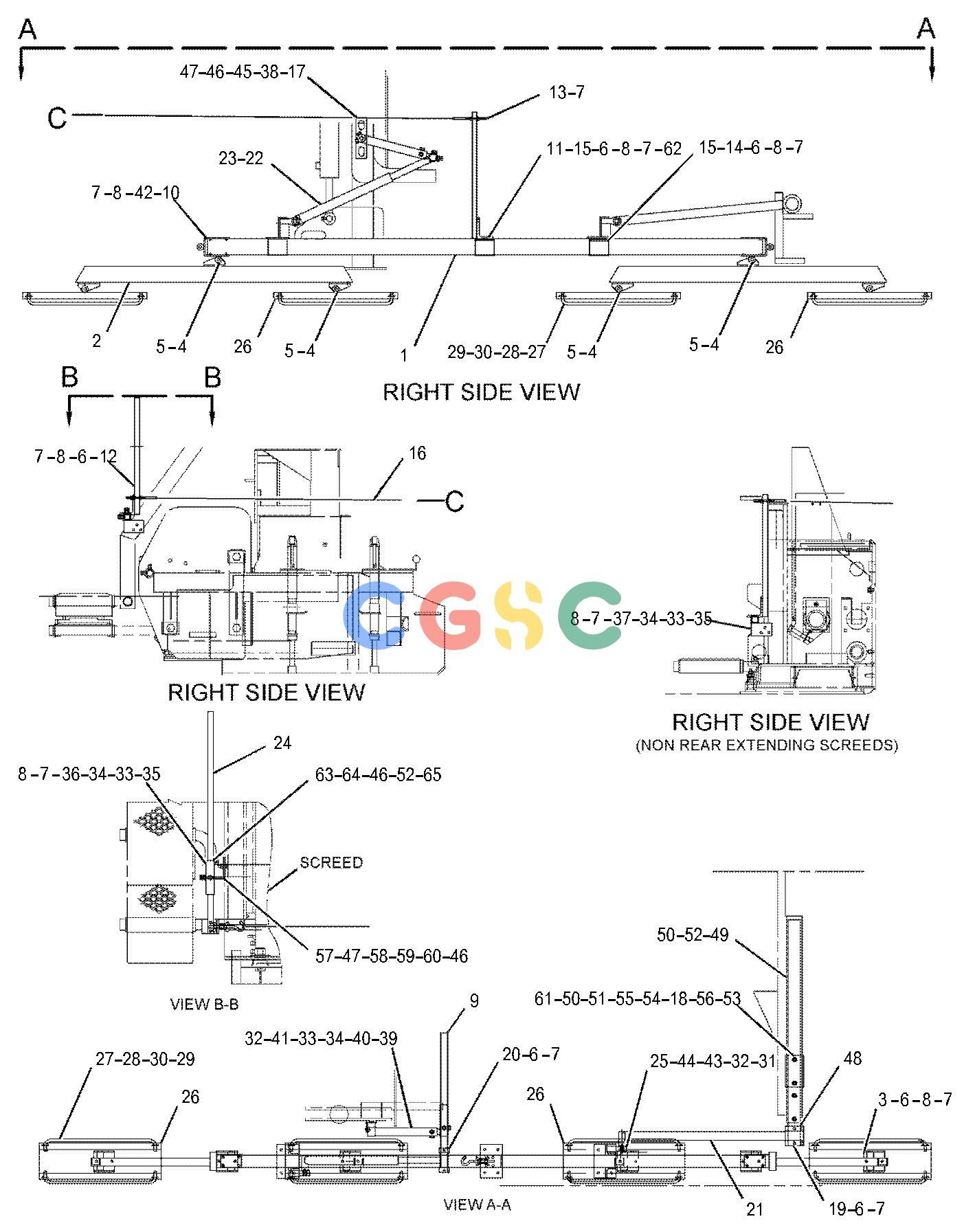

卡特零件查询（AP-1055E） 109-5624: LEVELER GP
广数供应链运营团队, 16 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 167-9632 | [1] | BEAM | |
| 2. | 081-9638 | [2] | CHANNEL | |
| 3. | 081-7209 | [6] | BRACKET | |
| 4. | 7X-0334 | [6] | BOLT(1/2-13X5-IN) | |
| 5. | 9X-0941 | [6] | LOCKNUT(1/2-13-THD) | |
| 6. | 9B-7237 | [32] | BOLT(3/8-16X1.25-IN) | |
| 7. | 6V-8801 | [48] | NUT(3/8-16-THD) | |
| 8. | 8T-4896 | [46] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 9. | 109-5659 | [1] | SHAFT | |
| 10. | 167-1314 | [2] | PLATE AS | |
| 11. | 172-5628 | [1] | TUBE AS | |
| 12. | 109-5635 | [1] | TUBE AS | |
| 13. | 109-5641 | [2] | EYEBOLT(3/8-16-THD) | |
| 14. | 169-0173 | [2] | PLATE AS | |
| 15. | 169-0171 | [3] | PLATE | |
| 16. | 9N-8909 | [1] | STRINGLINE | |
| 17. | 122-1153 | [2] | SUPPORT AS-GUIDE | |
| 18. | 7X-2554CM | [4] | BOLT(M16X2X70-MM) | |
| 19. | 109-5649 | [2] | COLLAR | |
| 20. | 140-8793 | [2] | COLLAR | |
| 21. | 109-5651 | [1] | ARM AS | |
| 22. | 109-5634 | [1] | TUBE AS | |
| 23. | 109-7798 | [1] | ROD AS | |
| | 109-7807 | [1] | BAR | |
| 24. | 113-9125 | [1] | BAR | |
| 25. | 167-4290 | [2] | EYEBOLT(3/4-10-THD) | |
| 26. | 109-5629 | [4] | SHOE AS | |
| 27. | 109-5632 | [8] | RUNNER | |
| 28. | 119-5915 | [16] | U-BOLT(1/4-20-THD) | |
| 29. | 6V-8185 | [32] | NUT(1/4-20-THD) | |
| 30. | 8T-4205 | [32] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 6V-8182 | [4] | NUT(3/4-10-THD) | |
| 32. | 8T-4994 | [3] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 33. | 8T-8917 | [10] | BOLT(1/2-13X1.25-IN) | |
| 34. | 6V-8188 | [10] | NUT(1/2-13-THD) | |
| 35. | 109-5660 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 36. | 8T-8915 | [4] | BOLT(3/8-16X3.25-IN) | |
| 37. | 4L-9337 | [4] | BOLT(3/8-16X1.5-IN) | |
| 38. | 7X-0443 | [4] | BOLT(1-8X5.5-IN) | |
| 39. | 122-1104 | [1] | ROD AS | |
| 40. | 122-1150 | [1] | TUBE AS | |
| 41. | 8T-9397 | [1] | BOLT(3/4-10X1.25-IN) | |
| 42. | 7X-0292 | [8] | BOLT(3/8-16X4.5-IN) | |
| 43. | 9L-9132 | [2] | WASHER(10.2X25.5X2.5-MM THK) | |
| 44. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 45. | 231-1393C | [2] | PLATE AS | |
| 46. | 8T-4121C | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 47. | 8T-4195CM | [14] | BOLT(M10X1.5X30-MM) | |
| 48. | 106-4604C | [1] | TUBE | |
| 49. | 199-4198C | [1] | TUBE AS | |
| 50. | 8T-4244CM | [6] | NUT(M12X1.75-THD) | |
| 51. | 8T-4139CM | [4] | BOLT(M12X1.75X30-MM) | |
| 52. | 8T-4183CM | [6] | BOLT(M12X1.75X40-MM) | |
| 53. | 293-1022C | [2] | MOUNT AS | |
| 54. | 8T-4122C | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 55. | 8T-4132CM | [4] | NUT(M16X2-THD) | |
| 56. | 8T-4193CM | [4] | BOLT(M16X2X50-MM) | |
| 57. | 318-8747 | [2] | PLATE | |
| 58. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 59. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 60. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 61. | 432-2435 | [2] | MOUNT AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 62. | 416-1187 | [1] | TUBE AS | |
| 63. | 450-5685 | [2] | SUPPORT AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 64. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 65. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
