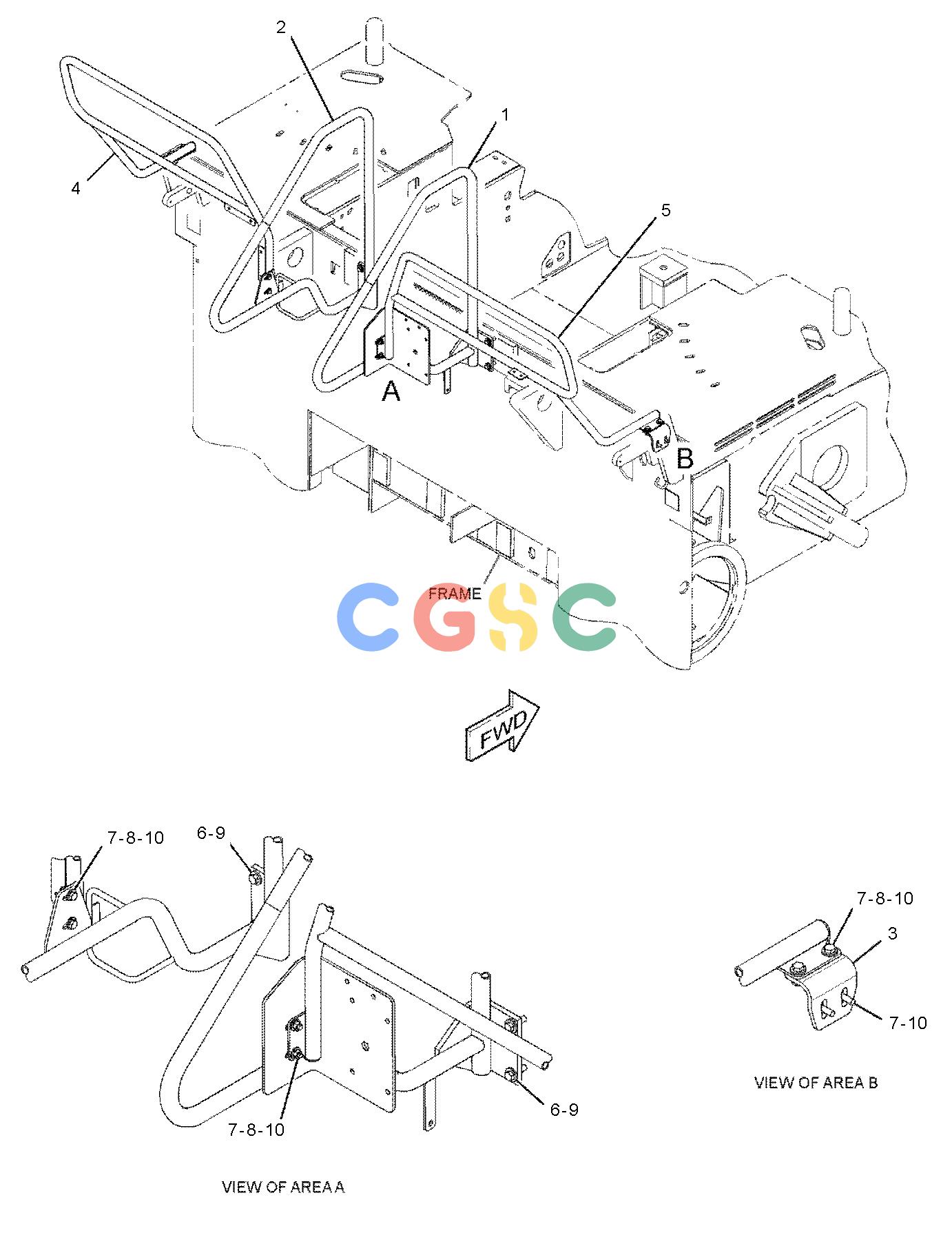

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 315-2620 | [1] | HANDRAIL AS(RH) | |
| 2. | 371-5990 | [1] | HANDRAIL AS(LH) | |
| 3. | 334-3369 | [2] | BRACKET AS | |
| 4. | 338-8494 | [1] | HANDRAIL AS(LH) | |
| 5. | 338-8495 | [1] | HANDRAIL AS(RH) | |
| 6. | 5P-1076B | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 7X-7729 | [20] | WASHER(11X25X3-MM THK) | |
| 8. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 9. | 8T-4183BM | [4] | BOLT(M12X1.75X40-MM) | |
| 10. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
