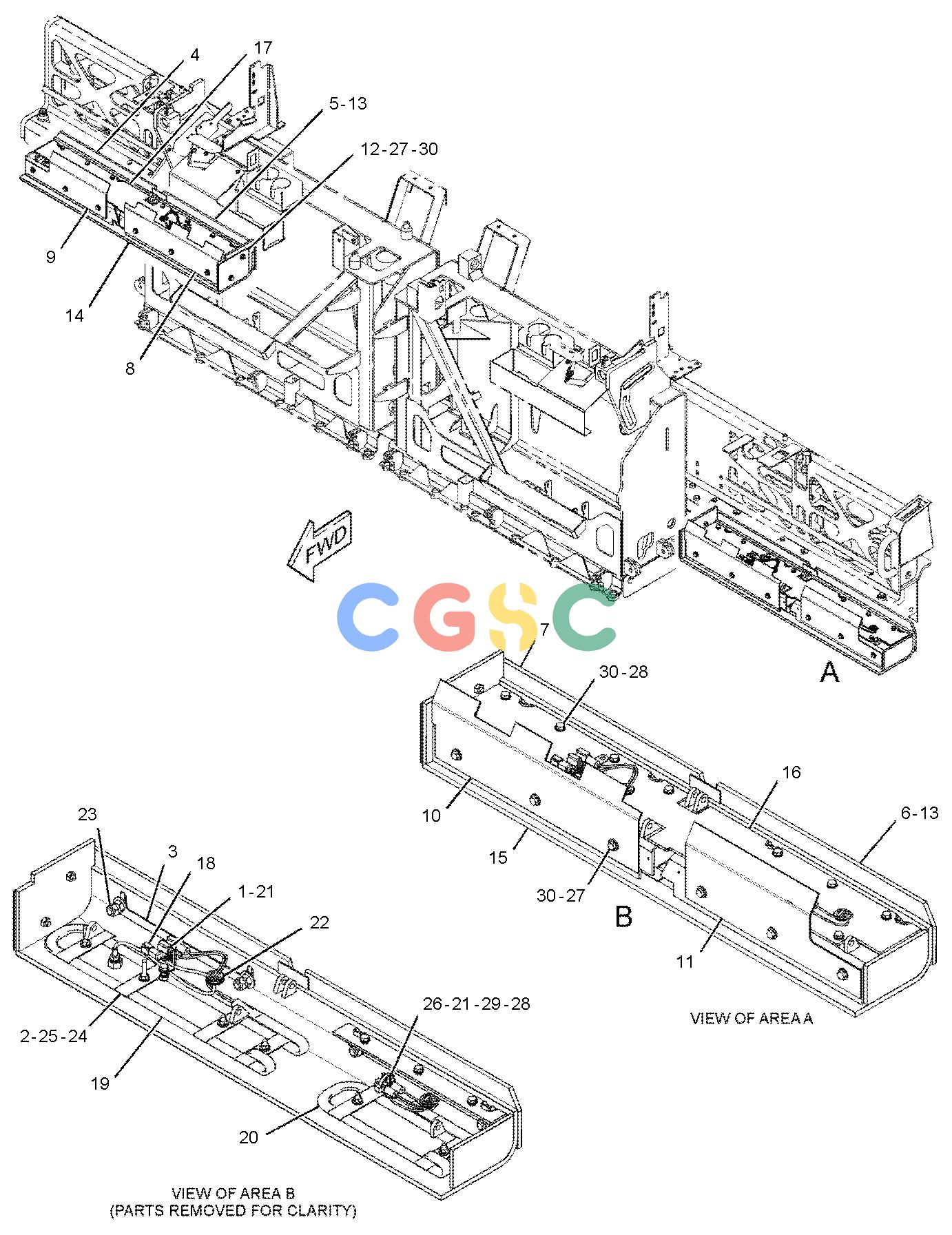

卡特零件查询（AP-1055E） 328-3549: PLATE & HEATER GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
502 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 254-3797 | [12] | CLAMP | |
| 3. | 276-4551 | [4] | PLATE AS | |
| 4. | 276-4871 | [1] | PLATE | |
| 5. | 276-4872 | [1] | PLATE | |
| 6. | 276-4873 | [1] | PLATE | |
| 7. | 276-4875 | [1] | PLATE | |
| 8. | 281-2882 | [1] | COVER | |
| 9. | 281-2883 | [1] | COVER | |
| 10. | 281-2884 | [1] | COVER | |
| 11. | 281-2885 | [1] | COVER | |
| 12. | 281-8266 | [2] | PLATE | |
| 13. | 288-1190 | [8] | SCREW(5/8-11X2.5-IN) | |
| 14. | 335-1817 | [1] | PLATE AS-SCREED(LH) | |
| 15. | 335-1818 | [1] | PLATE AS-SCREED(RH) | |
| 16. | 335-1819 | [1] | COVER AS(RH) | |
| 17. | 335-1820 | [1] | COVER AS(LH) | |
| 18. | 336-2012 | [2] | SENSOR GP-TEMPERATURE(SCREED HEAT) | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 19. | 349-3019 | [2] | HEATER AS(240-VOLT, 2160-WATT) | |
| 20. | 349-3020 | [2] | HEATER AS(240-VOLT, 1476-WATT) | |
| | | | (EACH HEATER AS INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 21. | 132-5789 | [4] | CLIP(LADDER) | |
| 22. | 3D-6209 | [4] | GROMMET | |
| 23. | 3K-2889 | [8] | LOCKNUT(5/8-11-THD) | |
| 24. | 5P-1075 | [12] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 25. | 6V-8801 | [12] | NUT(3/8-16-THD) | |
| 26. | 7K-1181 | [2] | STRAP-CABLE | |
| 27. | 7X-7729 | [16] | WASHER(11X25X3-MM THK) | |
| 28. | 8T-4121 | [30] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 30. | 8T-4195M | [44] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
