卡特零件查询（AP-1055E） 348-3782: DISPLAY GP-MONITOR
广数供应链运营团队, 16 02月, 2025，浏览：
608 次

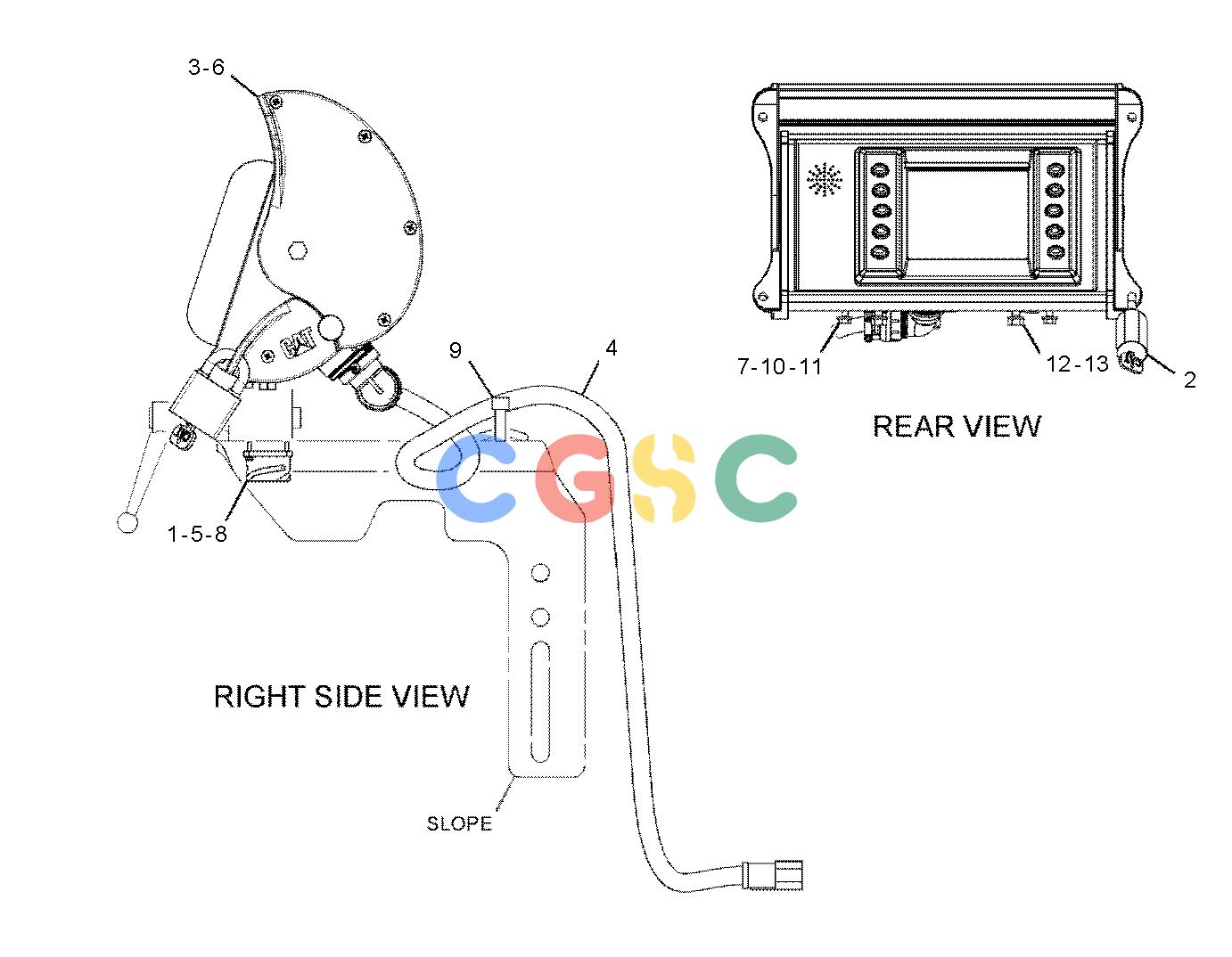

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9B-1117 | [2] | LOCKWASHER | |
| 2. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 330-6558Y | [1] | DISPLAY GP-MONITOR | |
| 4. | 330-8586 | [1] | HARNESS AS-MONITOR | |
| | 126-1767 | [10] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | | | -OR- |
| | 9X-3401 | [10] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 332-6698 | [1] | PLUG AS | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 332-6699 | [1] | RECEPTACLE-CONNECTOR | |
| 6. | 351-8709Y | [1] | ELECTRONICS GP-MONITOR(GRADE CONTROL DISPLAY) | |
| 7. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 8. | 6V-9671M | [2] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 9. | 7K-1181 | [1] | STRAP-CABLE | |
| 10. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 11. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 13. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
