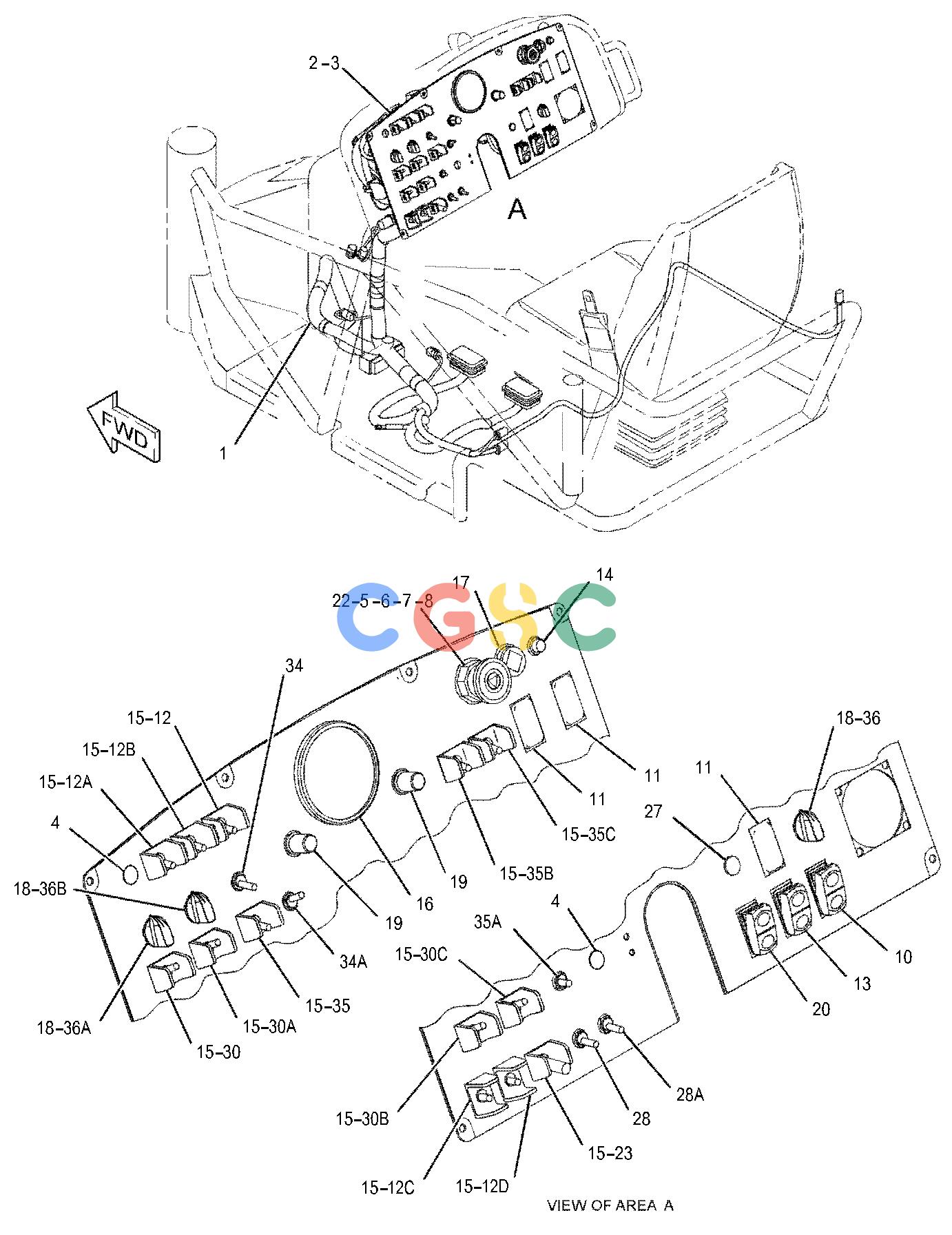

| 1. | 3V-4694 | [2] | PLUG-BUTTON | |
| 2. | 116-5270 | [1] | LAMP(24-VOLT) | |
| 3. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(EMERGENCY STOP) | |
| 4. | 116-5277 | [1] | BLOCK(CONTACT) | |
| 5. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| | 8L-9801 | [1] | LAMP(12-VOLT) | |
| 6. | 172-9200 | [2] | SUPPRESSOR-ARC | |
| 7. | 222-7890 | [1] | SWITCH AS-ROCKER(PARKING BRAKE) | |
| 8. | 228-6089 | [2] | PLUG(ROCKER SWITCH) | |
| 9. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER, RH) | |
| 9A. | 246-8912 | [1] | SWITCH GP-TOGGLE(APRON FOLD) | |
| 9B. | 246-8912 | [1] | SWITCH GP-TOGGLE(HOPPER, RH) | |
| 9C. | 246-8912 | [1] | SWITCH GP-TOGGLE(HOPPER, LH) | |
| 9D. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER, LH) | |
| | | | (EACH SWITCH AS-TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 10. | 249-5481 | [1] | SWITCH AS-ROCKER(24-VOLT)(THROTTLE) | |
| 11. | 250-2299 | [1] | LAMP AS-LED(24-VOLT, GREEN) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 13. | 265-9984 | [13] | BRACKET | |
| 14. | 316-5717 | [3] | KNOB AS | |
| 15. | 316-6409 | [2] | LAMP AS(LED)(CONSOLE) | |
| | | | (EACH INCLUDES) |
| | 5P-5694 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX(11/16-27-THD) | |
| 16. | 327-0366 | [1] | SWITCH AS-ROCKER(PANEL) | |
| 17. | 327-5707 | [1] | PANEL AS | |
| 18. | 328-7024 | [1] | FILM-IDENTIFICATION(INSTRUMENT PANEL) | |
| 19. | 329-2629 | [1] | SWITCH AS-ROCKER(24-VOLT)(TRANSMISSION) | |
| 20. | 347-8607 | [1] | KNOB(PARKING BRAKE) | |
| 21. | 348-6593 | [1] | SWITCH AS-ROCKER(BEACON) | |
| 22. | 370-9003 | [1] | HARNESS AS-PANEL | |
| | 274-3774 | [1] | CAP-CONNECTOR | |
| | 9X-3401 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 202-5397 | [38] | PLUG | |
| | 9X-4391 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 9X-1054 | [1] | PLUG AS-CONNECTOR(4-PIN) | |
| | 147-1444 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1445 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS-CONNECTOR INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2260 | [6] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [6] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [4] | KIT-CONNECTING PLUG(4-PIN) | |
| | 245-7434 | [8] | KIT-CONNECTING PLUG(10-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [137] | PLUG-SEAL | |
| | 102-8802 | [5] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8803 | [3] | KIT-RECEPTACLE(3-PIN) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-1951 | [1] | RECEPTACLE-CONNECTOR(9-PIN) | |
| | 169-0705 | [2] | SEAL | |
| | 185-1861 | [43] | SEAL-WIRE | |
| | 160-2244G | | SLEEVE-ABRASION(22-IN) | |
| | 180-9340 | [215] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 283-8106 | [4] | SOCKET-CONNECTOR(20-GA) | |
| | 162-4171 | [53] | TERMINAL AS(18-GA TO 20-GA) | |
| | | | (EACH INCLUDES) |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(4-CM) | |
| | 5P-4571 | [5] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 7N-7978 | [4] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-2321 | [12] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 131-1492 | [1] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 2L-8071 | [3] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| | 2L-8081 | [1] | TERMINAL-RING(14-GA TO 16-GA, 1/2-IN SCREW) | |
| | 5P-3059 | [5] | TERMINAL-FORK(18-GA TO 22-GA, NO. 6 SCREW) | |
| | 204-1297 | [42] | TERMINAL AS-BLADE(18-GA TO 20-GA) | |
| | | | (EACH INCLUDES) |
| | 235-4123 | [1] | TERMINAL(18-GA TO 20-GA) | |
| | 9X-1056 | [4] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(130-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 23. | 109-7187 | [1] | SWITCH AS-TOGGLE(SCREED HOIST) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 24. | 130-5300 | [5] | CLIP | |
| 26. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 27. | 3V-5349 | [1] | PLUG-BUTTON | |
| 28. | 4D-1836 | [1] | SWITCH-TOGGLE(GENERATOR) | |
| 28A. | 4D-1836 | [1] | SWITCH-TOGGLE(VIBRATORY CONTROL) | |
| 28B. | 4D-1836 | [1] | SWITCH-TOGGLE(COUNTERBALANCE) | |
| 29. | 7K-1181 | [6] | STRAP-CABLE | |
| 30. | 7N-8008 | [1] | SWITCH AS-TOGGLE(LIMP HOME, RH) | |
| 30A. | 7N-8008 | [1] | SWITCH AS-TOGGLE(LIMP HOME, LH) | |
| | | | (EACH SWITCH AS TOGGLE INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 31. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, LH) | |
| 31A. | 8C-9812 | [1] | SWITCH AS-TOGGLE(CONVEYOR, RH) | |
| 31B. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, LH) | |
| 31C. | 8C-9812 | [1] | SWITCH AS-TOGGLE(AUGER, RH) | |
| | | | (EACH SWITCH AS TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 32. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 34. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 35. | 9D-3721 | [1] | SWITCH-TOGGLE(SINGLE POLE)(CONVEYOR REVERSE) | |
| 36. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL, LH) | |
| 36A. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL, RH) | |
| 36B. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER REVERSE) | |
| 36C. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER CONTROL) | |
| | | | (EACH SWITCH AS TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 37. | 378-3321 | [1] | POTENTIOMETER AS(PROPEL SPEED DIAL) | |
| 37A. | 378-3321 | [1] | POTENTIOMETER AS(CONVEYOR CONTROL, LH) | |
| 37B. | 378-3321 | [1] | POTENTIOMETER AS(CONVEYOR CONTROL, RH) | |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
