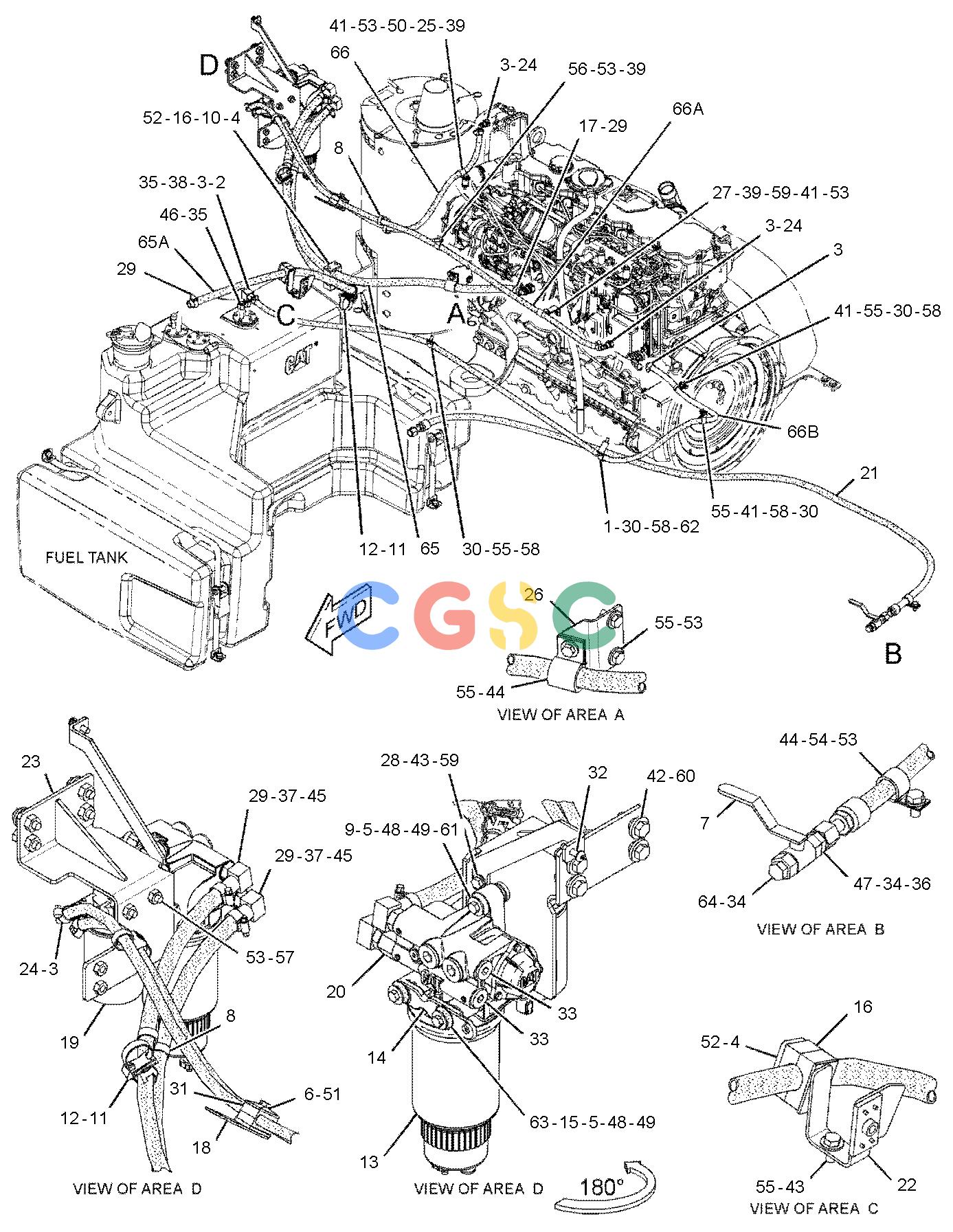

卡特零件查询（AP-1055E） 366-5073: LINES GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
418 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-7627 | [1] | SPACER(11X19X37-MM THK) | |
| 2. | 5E-9315 | [1] | FITTING-HOSE | |
| 3. | 5P-4961 | [6] | CLAMP-HOSE | |
| 4. | 7V-5628 | [2] | PLATE(TOP) | |
| 5. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 6. | 102-8703 | [1] | PLATE-COVER | |
| 7. | 124-6809 | [1] | VALVE-BALL(FUEL SHUTOFF) | |
| 8. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 9. | 191-1782 | [1] | SPACER(8.5X12.7X38.2-MM THK) | |
| 10. | 196-4205M | [2] | BOLT-STACKING(M6X1X44-MM) | |
| 11. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 12. | 204-2281 | [4] | STRAP-CABLE | |
| 13. | 212-3657Y | [1] | PUMP GP-FUEL PRM & WATER SEP(ELECTRIC) | |
| 14. | 232-1374 | [1] | BRACKET | |
| 15. | 232-1376 | [2] | SPACER(8.5X12.7X139.1-MM THK) | |
| 16. | 239-3291 | [6] | CLAMP-HALF | |
| 17. | 264-3518 | [1] | CONNECTOR-RECEPTACLE | |
| 18. | 344-2270 | [1] | BRACKET AS | |
| | 102-8704 | [1] | PLATE | |
| 19. | 346-0523Y | [1] | FILTER AS-FUEL(ULTRA HIGH EFFICIENCY) | |
| 20. | 353-5142 | [1] | ADAPTER AS | |
| | 219-8136 | [1] | ADAPTER | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 21. | 354-0845 | [1] | HOSE AS | |
| 22. | 354-0847 | [1] | BRACKET AS | |
| 23. | 354-0877 | [1] | BRACKET AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| | 130-5300 | [1] | CLIP | |
| 24. | 354-0878 | [4] | CONNECTOR-FUEL | |
| 25. | 354-7073 | [1] | TUBE | |
| 26. | 370-3777 | [1] | BRACKET AS | |
| 27. | 371-0033 | [1] | BRACKET | |
| 28. | 374-8275 | [1] | PLATE | |
| 29. | 124-6257 | [4] | CLAMP-HOSE | |
| 30. | 134-3988 | [4] | CLIP(LOOP) | |
| 31. | 156-3617 | [2] | CLAMP-HALF | |
| 32. | 166-1222M | [1] | SCREW-BUTTON HEAD(M8X1.25X30-MM) | |
| 33. | 201-4340 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-4589 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 34. | 214-7568 | [2] | SEAL-O-RING | |
| 35. | 228-7089 | [2] | SEAL-O-RING | |
| 36. | 228-7090 | [1] | SEAL-O-RING | |
| 37. | 238-5081 | [2] | SEAL-O-RING | |
| 38. | 297-7976 | [1] | ELBOW AS | |
| | 6V-9850 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 39. | 4I-4655 | [3] | CLIP | |
| 41. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 42. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 43. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 6D-4244 | [2] | CLIP(LOOP) | |
| 45. | 6V-9208 | [2] | ELBOW | |
| 46. | 6V-9829 | [1] | CAP | |
| 47. | 6V-9873 | [1] | CONNECTOR | |
| 48. | 7X-0579 | [3] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 49. | 7X-0613 | [3] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 50. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 51. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 52. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 53. | 8T-4121 | [11] | WASHER-HARD(11X21X2.5-MM THK) | |
| 54. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 55. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 56. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 57. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 58. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 59. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 60. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 61. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 62. | 8T-7329M | [1] | BOLT(M8X1.25X55-MM) | |
| 63. | 8T-7352M | [2] | BOLT(M8X1.25X160-MM) | |
| 64. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 65. | 347-8647E | | HOSE(150-CM) | |
| 65A. | 347-8647E | | HOSE(190-CM) | |
| 66. | 347-8645E | | HOSE(136-CM) | |
| 66A. | 347-8645E | | HOSE(183-CM) | |
| 66B. | 347-8645E | | HOSE(244-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
