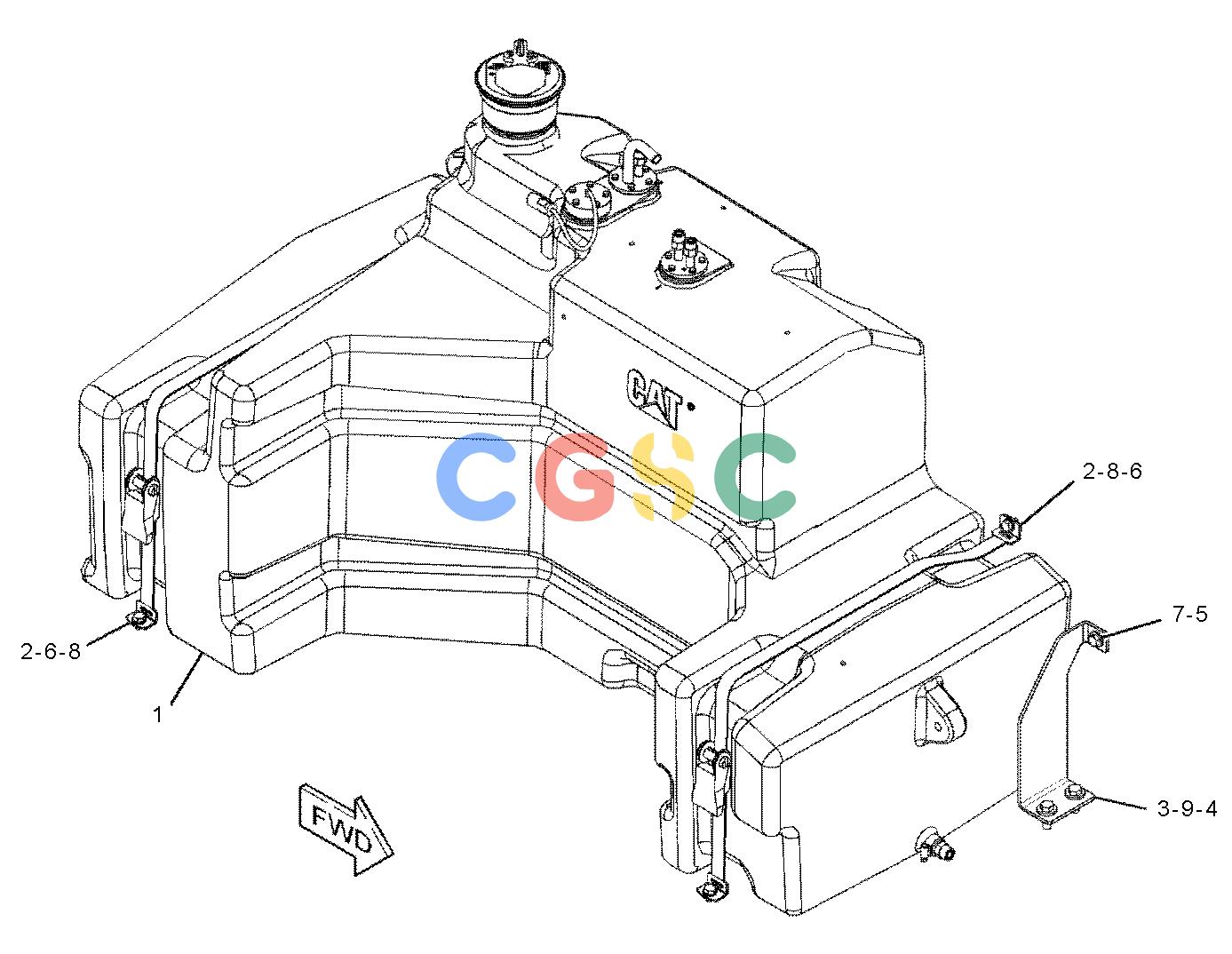

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 332-2652Y | [1] | TANK GP-FUEL | |
| 2. | 346-4831 | [2] | STRAP AS | |
| 3. | 376-2265 | [1] | BRACKET | |
| 4. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 5. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 9. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
