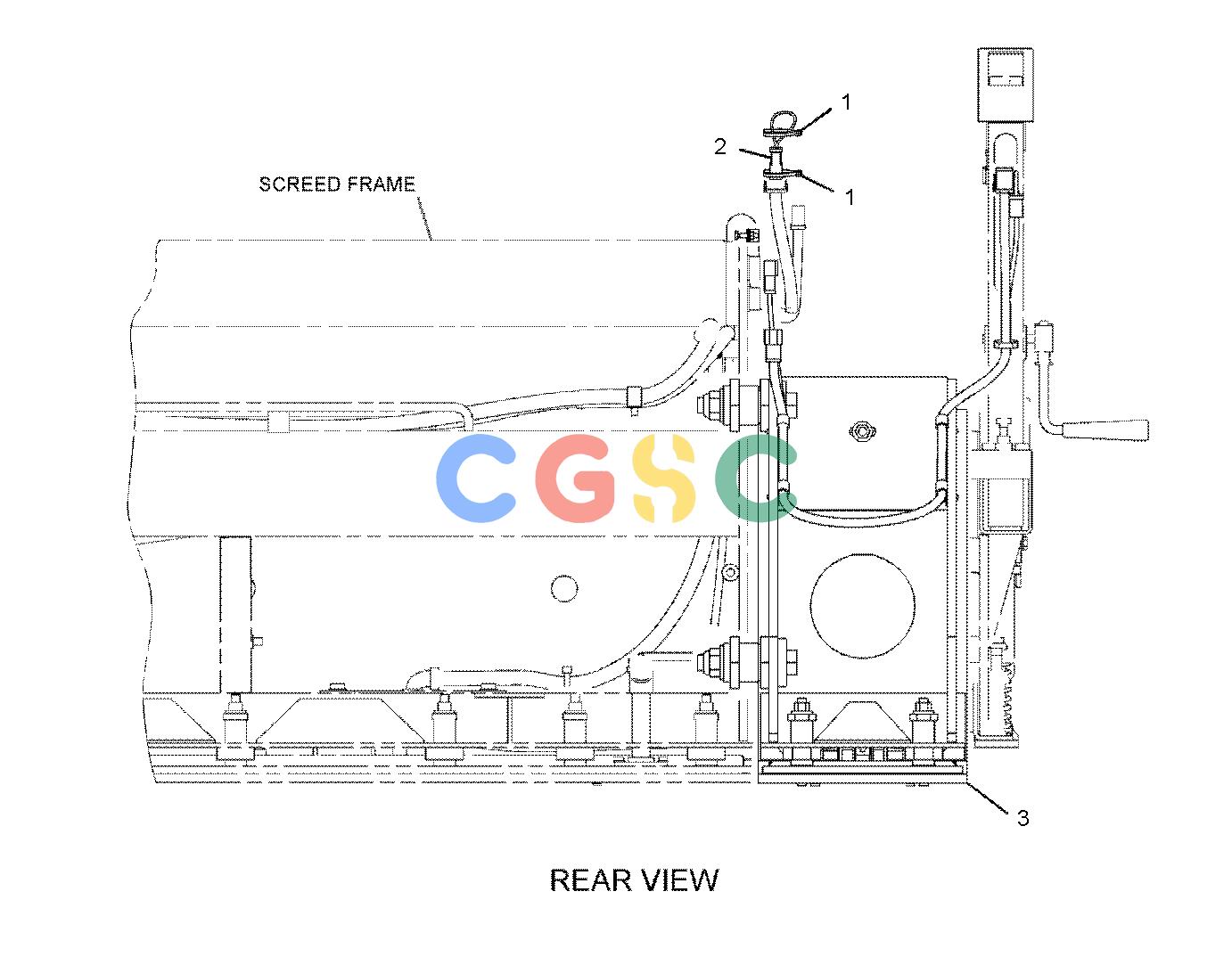

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3S-2093C | [2] | STRAP-CABLE | |
| 2. | 9U-3672 | [1] | PLUG AS | |
| 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 5P-5677D | WIRE(18-GA, BLACK)(0.2-M) | |||
| 5P-9799D | TUBE(HEAT SHRINK)(0.1-M) | |||
| 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| 3. | 292-0673Y | [1] | EXTENSION GP-SCREED | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| D | ORDER BY THE METER | |||
| Y | SEPARATE ILLUSTRATION | |||
