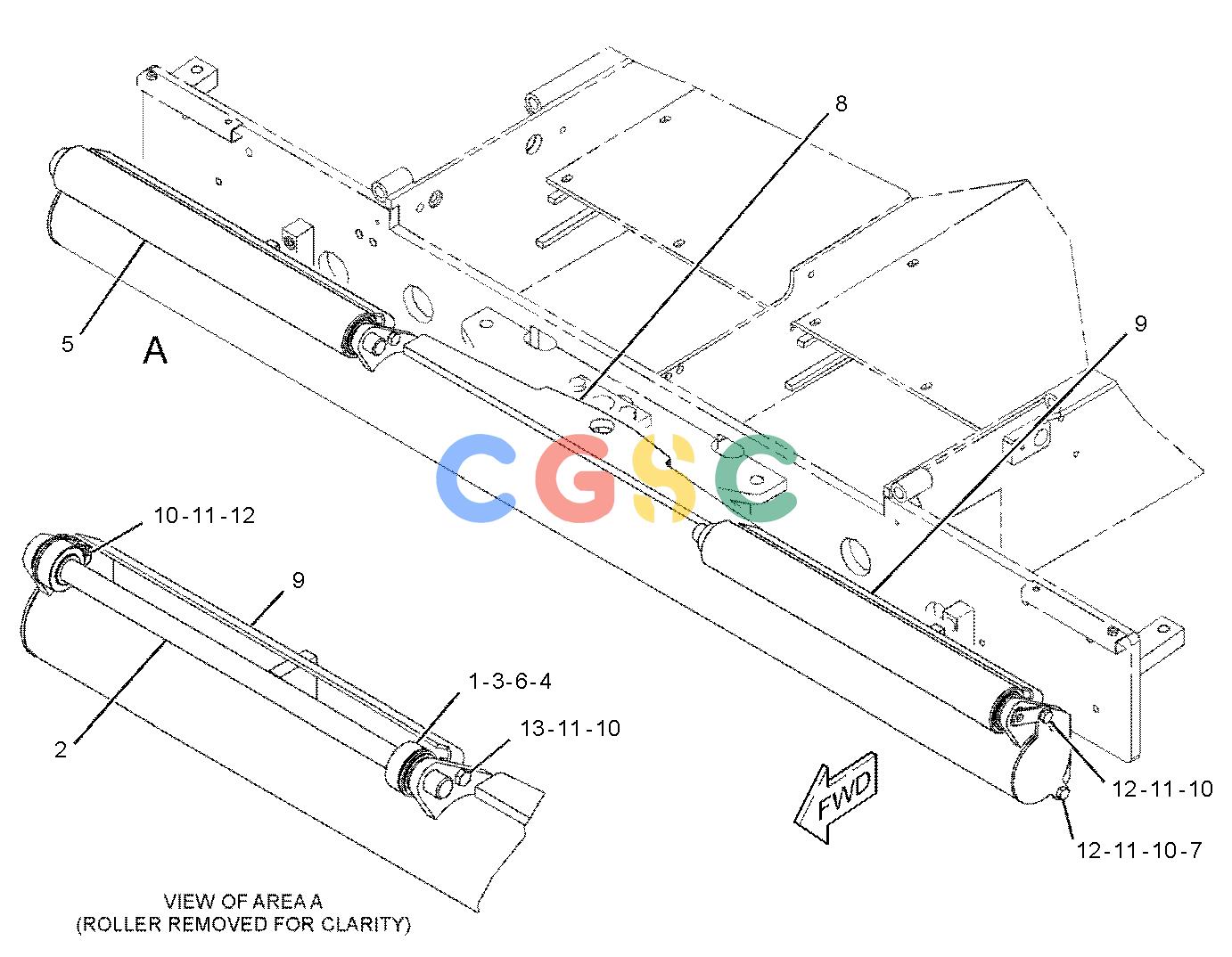

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 110-4821M | [4] | BOLT-SOCKET HEAD(M16X2X55-MM) | |
| 2. | 195-0408 | [1] | BAR | |
| 3. | 195-0409 | [1] | PIN AS | |
| 195-0408 | [1] | BAR | ||
| 4. | 292-0984 | [2] | BLOCK-STOP | |
| 5. | 339-2164Y | [1] | ROLLER GP-PUSH(LIGHT WEIGHT) | |
| 6. | 6V-9829 | [2] | CAP | |
| 7. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 8. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
