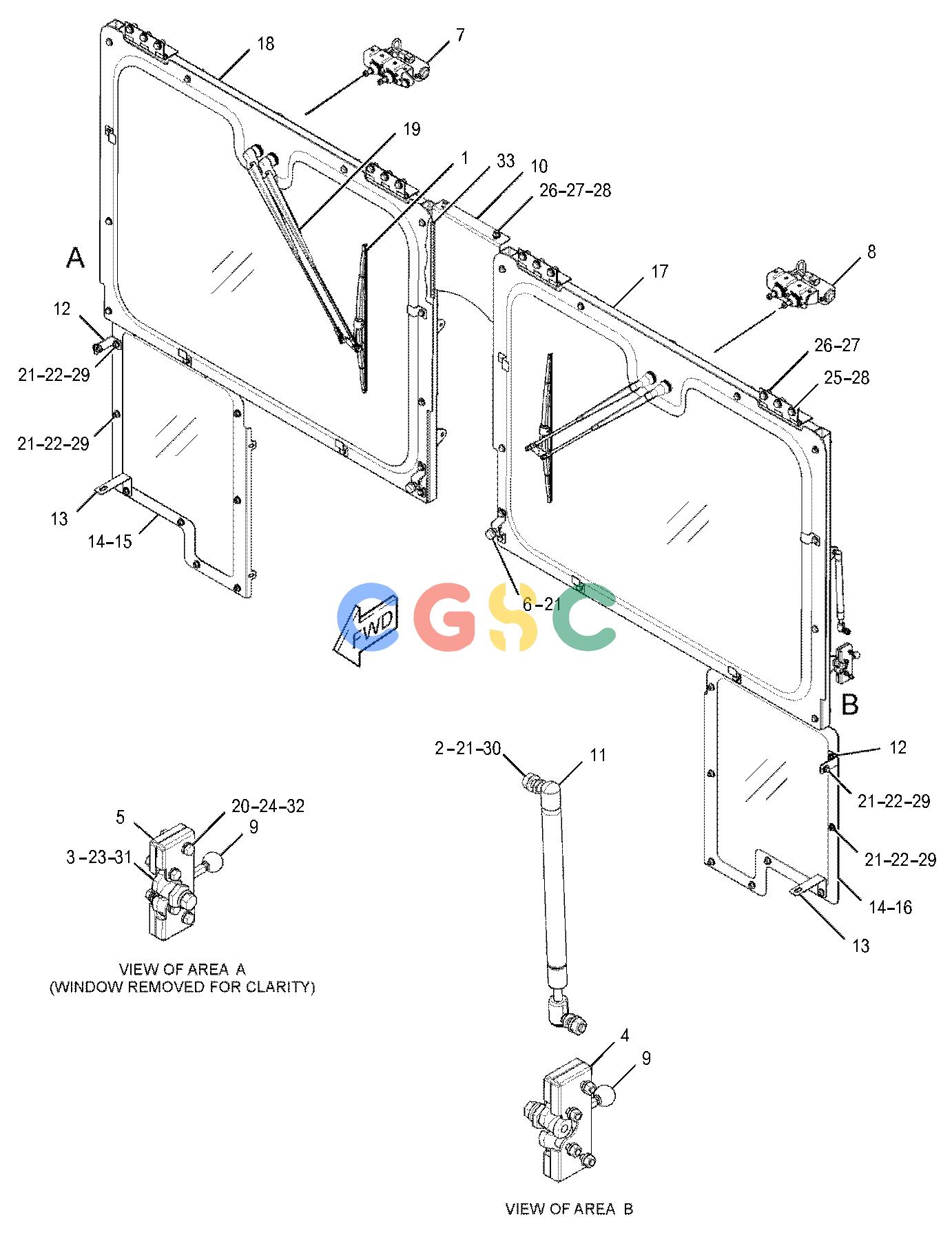

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 439-7166 | [4] | BRACKET | |
| 2. | 370-6309 | [1] | WINDOW | |
| 3. | 370-6310 | [1] | PLATE | |
| 4. | 370-6311 | [1] | FRAME AS | |
| 5. | 370-9521 | [1] | BRACKET AS | |
| 6. | 5C-7261M | [13] | NUT(M8X1.25-THD) | |
| 7. | 5P-4116 | [26] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 8T-6869M | [13] | BOLT(M8X1.25X60-MM) | |
| 9. | 3E-9413E | SEAL(415-CM) | ||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
