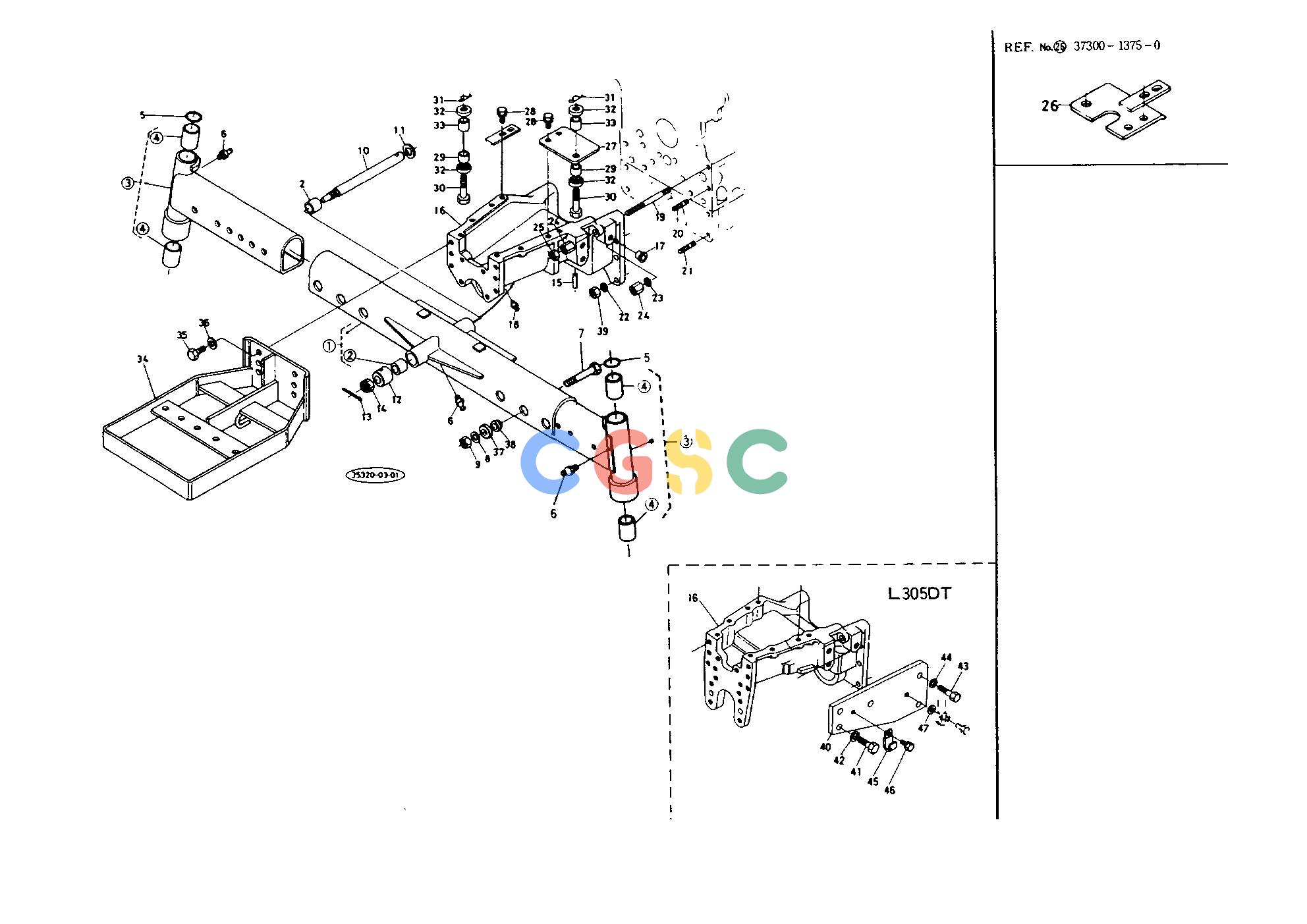

久保田零件查询T02200 FRONT AXLE BRACKET FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
1019 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 016. |
3535044710
|
[1] |
BRACKET FRONT AXLE
|
0.0000(lbs); 0.000
|
| 019. |
3534013640
|
[2] |
STUD
|
0.1672(lbs); 0.076
|
| 019. |
H353013640
|
[2] |
STUD
|
0.1672(lbs); 0.076
|
| 020. |
0151951030
|
[1] |
STUD
|
0.0550(lbs); 0.025
|
| 021. |
0157451232
|
[4] |
STUD
|
0.0858(lbs); 0.039
|
| 022. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 023. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 024. |
3730014190
|
[3] |
NUT
|
0.0198(lbs); 0.009
|
| 025. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 026. |
3534013750
|
[1] |
SUPPORT RADIATOR RH
|
0.7260(lbs); 0.330
|
| 027. |
3730013760
|
[1] |
SUPPORT RADIATOR LH
|
0.7920(lbs); 0.360
|
| 028. |
0113051020
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 029. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 030. |
1510872380
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 031. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 032. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 033. |
1511172190
|
[2] |
CUSHION
|
0.0352(lbs); 0.016
|
| 034. |
3530013810
|
[1] |
BUMPER
|
27.5000(lbs); 12.500
|
| 035. |
0117351225
|
[6] |
BOLT
|
0.0726(lbs); 0.033
|
| 036. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 037. |
3511471830
|
[4] |
COLLAR
|
0.1430(lbs); 0.065
|
| 038. |
3731013180
|
[4] |
SPACER
|
0.0770(lbs); 0.035
|
| 039. |
0217650120
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
3535044720
|
[1] |
PLATE PROTECTON
|
3.1680(lbs); 1.440
|
| 041. |
0117351430
|
[3] |
BOLT
|
0.1144(lbs); 0.052
|
| 042. |
0451250140
|
[3] |
WASHER SPRIANG
|
0.0220(lbs); 0.010
|
| 043. |
0117651235
|
[2] |
BOLT
|
0.0902(lbs); 0.041
|
| 044. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 045. |
3415029390
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 046. |
0112050814
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 047. |
0401150120
|
[1] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
