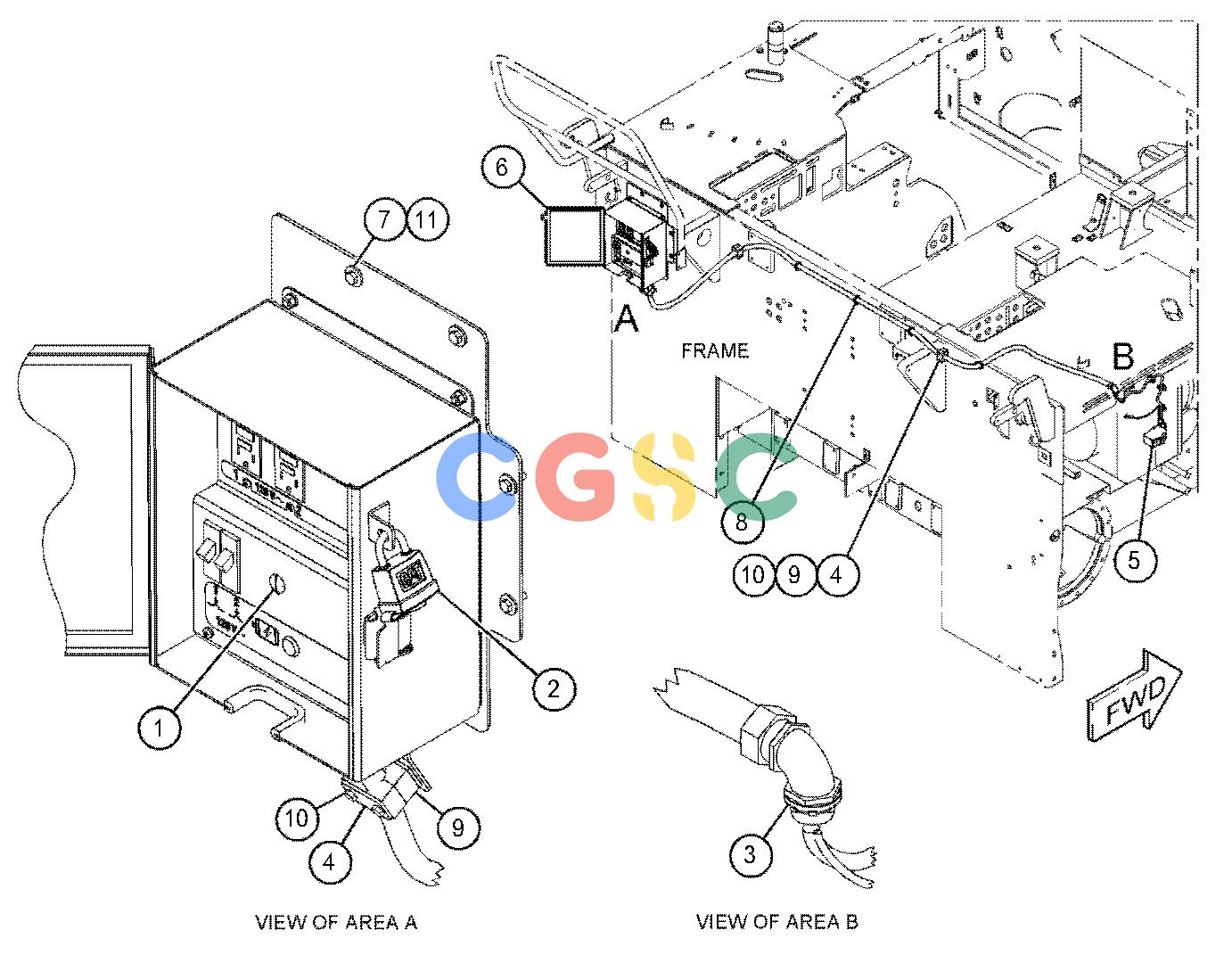

卡特零件查询（BG1055E） 449-7802: WIRING GP-POWER RECEPTACLE
广数供应链运营团队, 16 02月, 2025，浏览：
272 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3V-4694 | [1] | PLUG-BUTTON | |
| 2. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 6Y-6815 | [1] | GASKET AS(CONNECTOR) | |
| 4. | 7V-5628 | [3] | PLATE(TOP) | |
| 5. | 353-8835 | [1] | CIRCUIT BREAKER AS(30-AMPERE) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 6. | 449-7803Y | [1] | PANEL GP-POWER | |
| 7. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 8. | 7K-1181 | [7] | STRAP-CABLE | |
| 9. | 7R-7908 | [6] | CLAMP | |
| 10. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 11. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
