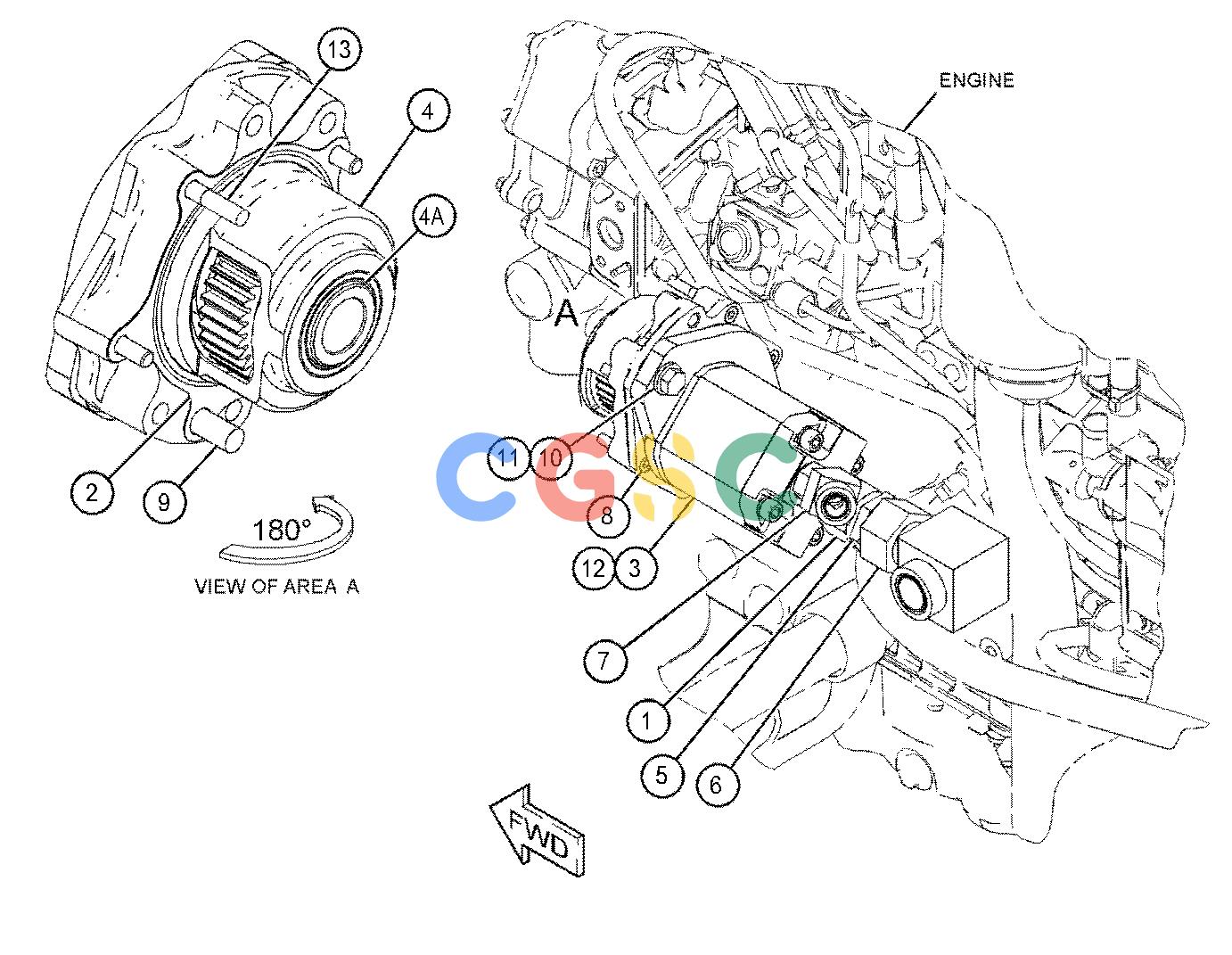

卡特零件查询（BG1055E） 459-9048: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
961 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 304-8018 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-5258 | [1] | ADAPTER | |
| 2. | 330-1714 | [1] | GASKET | |
| 3. | 340-6354Y | [1] | PUMP GP-GEAR | |
| 4. | 359-9185 | [1] | ADAPTER AS | |
| 4A. | 291-6526 | [1] | BEARING-NEEDLE | |
| | 326-9259 | [1] | GEAR | |
| | 330-9799 | [1] | CLIP | |
| | 330-9800 | [1] | CLIP | |
| 5. | 148-8333 | [1] | CONNECTOR AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-7927 | [1] | CONNECTOR | |
| 6. | 148-8387 | [1] | ELBOW AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 6V-9855 | [1] | ELBOW | |
| 7. | 153-6244 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-5389 | [1] | ELBOW | |
| 8. | 257-8465M | [3] | BOLT(M8X1.25X40-MM) | |
| 9. | 8T-0273M | [1] | BOLT-SOCKET HEAD(M12X1.75X40-MM) | |
| 10. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 12. | 9H-8872 | [1] | GASKET | |
| 13. | 9X-6154M | [1] | BOLT-SOCKET HEAD(M8X1.25-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
