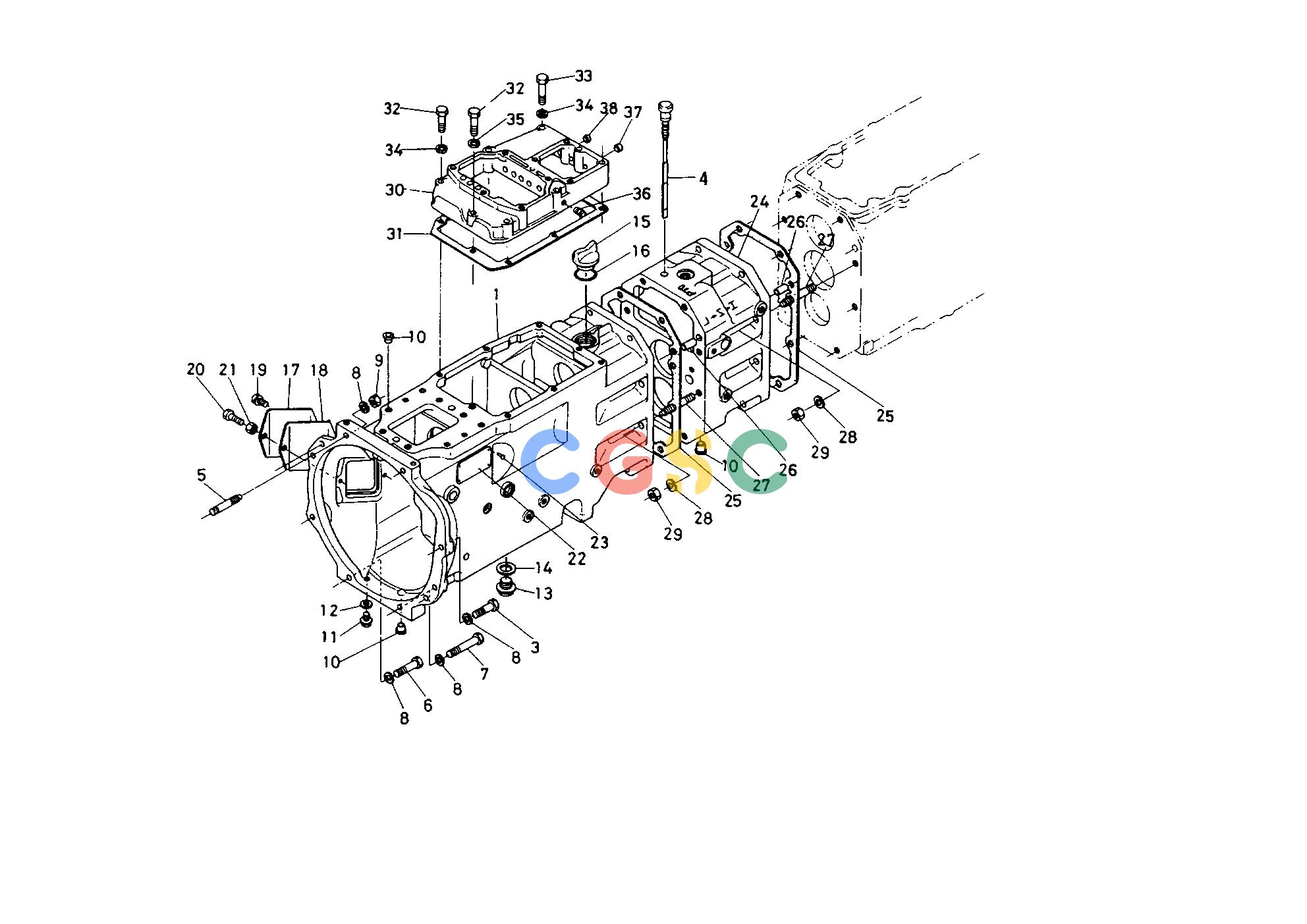

久保田零件查询T02500 CLUTCH HOUSING TRANSMISSION/CLUTCH/REAR AXLEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534014110
|
[1] |
HOUSING CLUCTH
|
107.8000(lbs); 49.00
|
| 003. |
0117351040
|
[4] |
BOLT
|
0.0616(lbs); 0.028
|
| 004. |
3534014190
|
[1] |
GAUGE OIL
|
0.0440(lbs); 0.020
|
| 005. |
3730014130
|
[2] |
STUD
|
0.7590(lbs); 0.345
|
| 006. |
0117351050
|
[1] |
BOLT
|
0.0770(lbs); 0.035
|
| 007. |
0117351070
|
[1] |
BOLT
|
0.0968(lbs); 0.044
|
| 008. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 009. |
3730014190
|
[2] |
NUT
|
0.0198(lbs); 0.009
|
| 010. |
3221027580
|
[10] |
PLUG
|
0.0022(lbs); 0.001
|
| 011. |
0631155010
|
[2] |
PLUG
|
0.0330(lbs); 0.015
|
| 012. |
0471701000
|
[2] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 013. |
3415014260
|
[1] |
PLUG DRAIN
|
0.2200(lbs); 0.100
|
| 014. |
0471702150
|
[1] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 015. |
3843021410
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
| 016. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 017. |
3415014160
|
[1] |
COVER HOUSING
|
0.3300(lbs); 0.150
|
| 018. |
3415014170
|
[1] |
GASKET HOUSING
|
0.0660(lbs); 0.030
|
| 019. |
0112050816
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 020. |
0115050825
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 021. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 022. |
3533019830
|
[1] |
LABEL
|
0.0220(lbs); 0.010
|
| 023. |
3415257920
|
[4] |
RIVET
|
0.0022(lbs); 0.001
|
| 024. |
3534014150
|
[1] |
CASE MID
|
32.7800(lbs); 14.900
|
| 025. |
3534014140
|
[2] |
GASKET
|
0.0220(lbs); 0.010
|
| 026. |
0501201018
|
[4] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 027. |
3534014180
|
[16] |
STUD
|
0.0000(lbs); 0.000
|
| 028. |
0451250120
|
[16] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 029. |
3534027360
|
[16] |
NUT
|
0.0330(lbs); 0.015
|
| 030. |
3715021210
|
[1] |
COVER SPEED CHANGE
|
2.5080(lbs); 1.140
|
| 031. |
3465059140
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 032. |
0115350840
|
[3] |
BOLT
|
0.0396(lbs); 0.018
|
| 033. |
0115350850
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 034. |
0451250080
|
[5] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 035. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 036. |
3415023960
|
[2] |
PLUG
|
0.0000(lbs); 0.000
|
| 037. |
3415021250
|
[5] |
PLUG
|
0.0044(lbs); 0.002
|
| 038. |
3426921250
|
[1] |
PLUG 12
|
0.0000(lbs); 0.000
|
