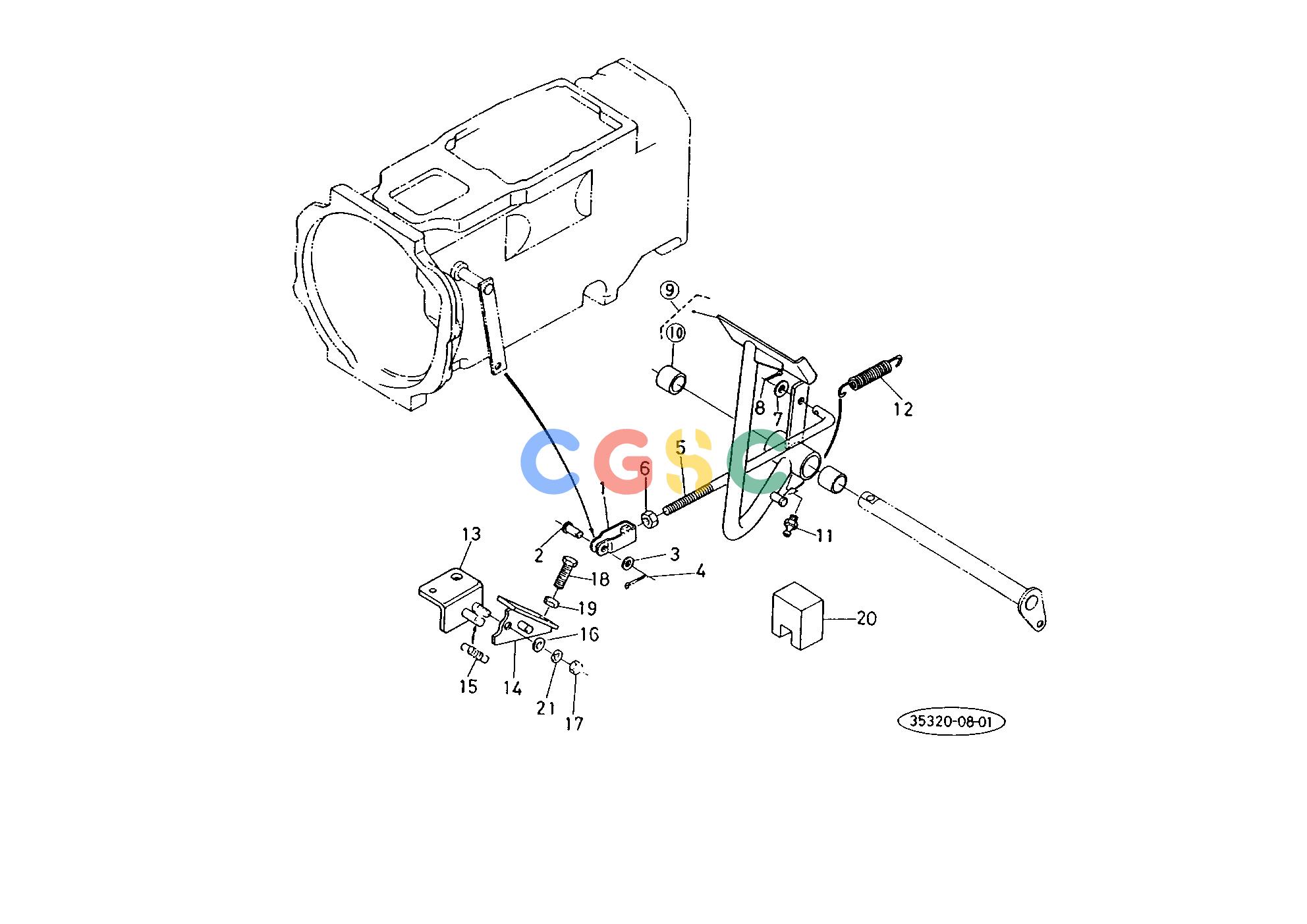

久保田零件查询T02700 CLUTCH PEDAL TRANSMISSION/CLUTCH/REAR AXLEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3415015630
|
[1] |
JOINT FORKED
|
0.2090(lbs); 0.095
|
| 002. |
0512250822
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 003. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 004. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 005. |
3534015640
|
[1] |
ROD CLUTCH
|
0.4620(lbs); 0.210
|
| 006. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 007. |
0401350120
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 008. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 009. |
3534015710
|
[1] |
PEDAL CLUTCH
|
3.5640(lbs); 1.620
|
| 010. |
3415028430
|
[2] |
BUSH
|
0.0880(lbs); 0.040
|
| 011. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 012. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
| 013. |
3535015750
|
[1] |
BRACKET CLUTCH STOPP
|
0.5390(lbs); 0.245
|
| 014. |
3534015760
|
[1] |
STOPPER CLUTCH
|
0.3850(lbs); 0.175
|
| 015. |
3437015770
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 016. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 017. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 018. |
0117051030
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 019. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 020. |
3534015950
|
[1] |
PIECE DISTANCE
|
0.0880(lbs); 0.040
|
| 021. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
