卡特零件查询（BG1055E） 328-3530: WIRING GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
920 次

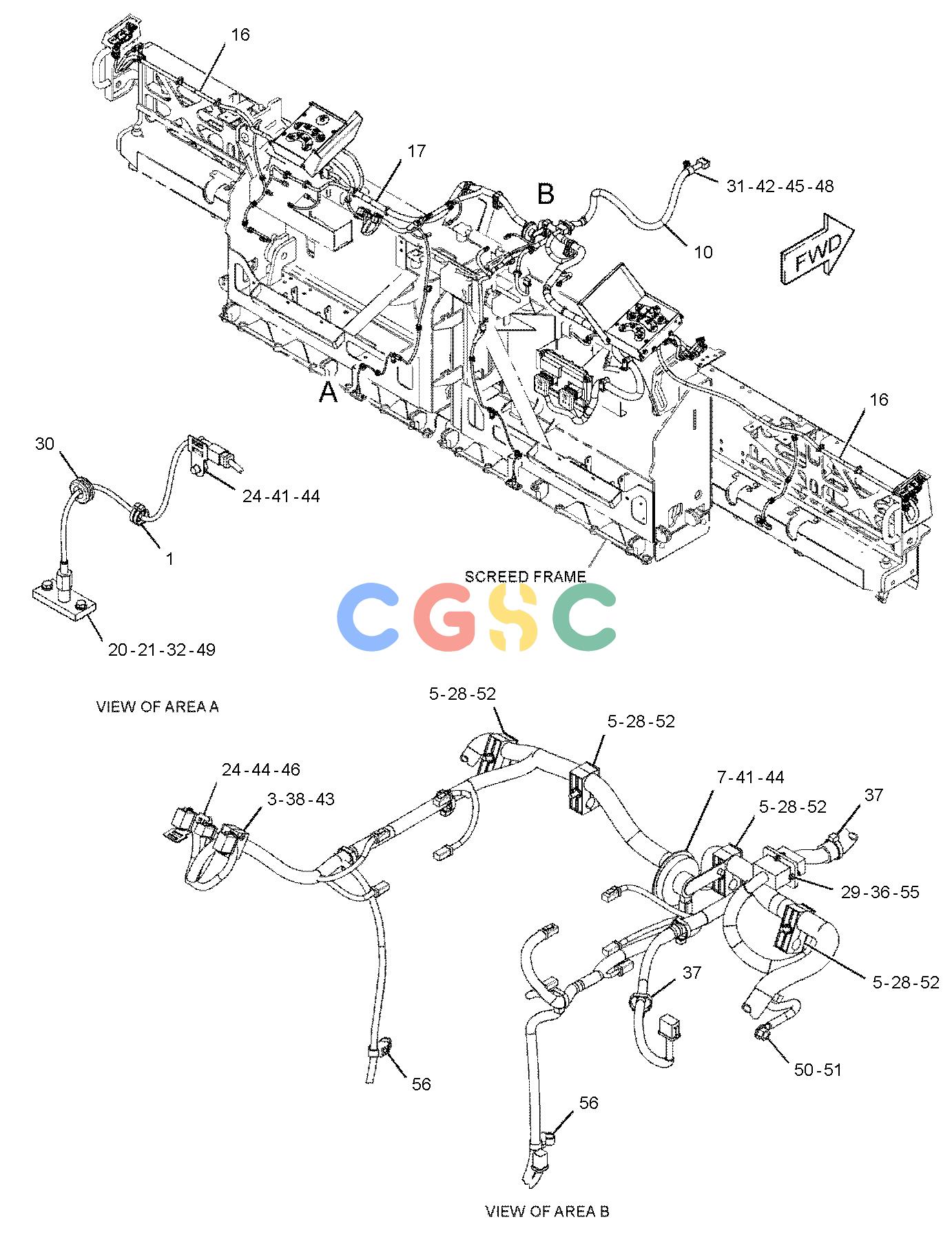

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [28] | STRAP-CABLE | |
| 2. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 3. | 7V-5628 | [3] | PLATE(TOP) | |
| 4. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 5. | 138-4572 | [4] | COVER | |
| 6. | 143-9644 | [2] | PLATE-RETAINER | |
| 7. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 8. | 169-5414 | [2] | CLIP | |
| 9. | 236-5149 | [4] | WASHER-NYLON(11.17X19.05X1.6MM THK) | |
| 10. | 257-4380Y | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| 11. | 276-4552Y | [2] | WIRING GP-SCREED(EXTENSION) | |
| 12. | 276-4615 | [2] | COVER | |
| 13. | 279-3556 | [2] | BOX AS | |
| 14. | 294-6003 | [2] | PLATE | |
| 15. | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED(SCREED) | |
| 16. | 328-3531Y | [2] | HARNESS AS-SCREED(EXTENDER) | |
| 17. | 433-6926CY | [1] | HARNESS AS-SCREED(MAIN) | |
| 18. | 328-3533Y | [1] | PANEL GP-CONTROL(RH) | |
| 19. | 328-3535Y | [1] | PANEL GP-CONTROL(LH) | |
| 20. | 336-2011 | [2] | SENSOR GP-TEMPERATURE(SCREED) | |
| | | | (EACH INCLUDES) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 21. | 347-1254 | [2] | PLATE | |
| 22. | 351-5775Y | [1] | ELECTRONICS GP-IMPLEMENT | |
| 23. | 061-8844 | [2] | GROMMET | |
| 24. | 130-5300 | [7] | CLIP | |
| 25. | 132-5789 | [2] | CLIP(LADDER) | |
| 26. | 1G-9959 | [2] | CLAMP | |
| 27. | 206-1511 | [4] | CLAMP-HALF | |
| 28. | 209-3118 | [8] | CLAMP-HALF | |
| 29. | 8T-0328C | [16] | WASHER-HARD(5.5X10X1-MM THK) | |
| 30. | 3P-5414 | [2] | GROMMET | |
| 31. | 4D-7388 | [1] | CLIP | |
| 32. | 4M-5281 | [4] | BOLT(1/4-20X0.75-IN) | |
| 34. | 4S-4455 | [1] | CLIP | |
| 35. | 5P-4116C | [5] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 36. | 6D-5801 | [8] | LOCKNUT(8-32-THD) | |
| 37. | 7K-1181 | [26] | STRAP-CABLE | |
| 38. | 7V-5626 | [2] | CLAMP | |
| 39. | 7V-6089 | [2] | CLAMP | |
| 40. | 297-1003M | [4] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 41. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 42. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 43. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 44. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 45. | 8T-4133M | [5] | NUT(M10X1.5-THD) | |
| 46. | 8T-4136M | [9] | BOLT(M10X1.5X25-MM) | |
| 47. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 48. | 8T-4195M | [5] | BOLT(M10X1.5X30-MM) | |
| 49. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 50. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 51. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 52. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| 53. | 9X-2042M | [12] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 54. | 9X-2480M | [4] | BOLT(M6X1X45-MM) | |
| 55. | 9X-8486 | [8] | SCREW-MACHINE(8-32X0.75-IN) | |
| 56. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
