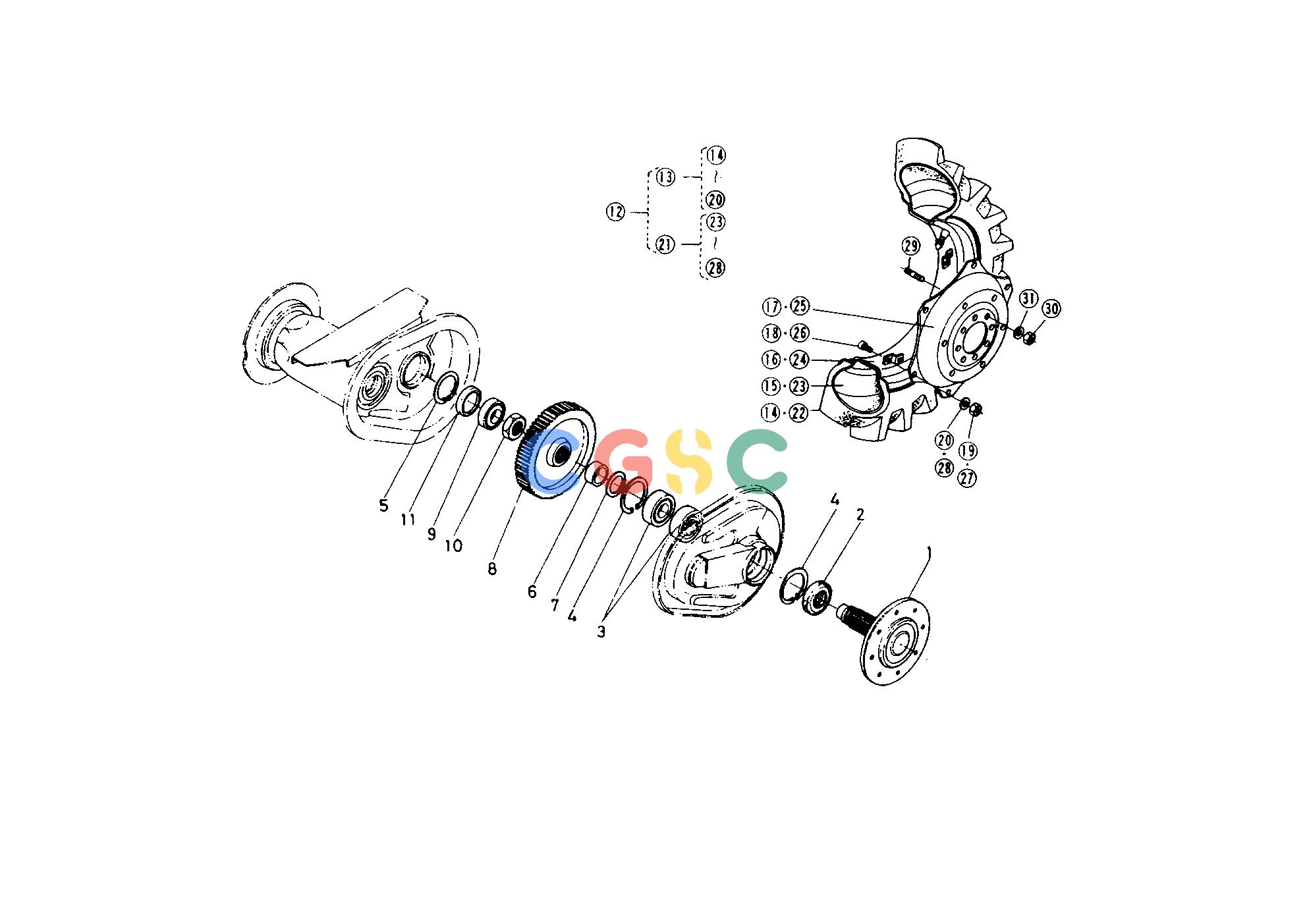

久保田零件查询T04200 REAR AXLE TRANSMISSION/CLUTCH/REAR AXLEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3534027110
|
[2] |
AXLE REAR
|
26.4000(lbs); 12.000
|
| 002. |
3730027560
|
[2] |
SEAL OIL
|
0.3784(lbs); 0.172
|
| 003. |
0810106211
|
[4] |
BEARING BALL
|
1.3200(lbs); 0.600
|
| 004. |
0461101000
|
[4] |
CIR-CLIP INTERNAL
|
0.0924(lbs); 0.042
|
| 005. |
0461100900
|
[2] |
CIR-CLIP INTERNAL
|
0.0682(lbs); 0.031
|
| 006. |
3534027140
|
[2] |
COLLAR
|
0.1210(lbs); 0.055
|
| 007. |
3435027150
|
[2] |
WASHER
|
0.0330(lbs); 0.015
|
| 008. |
3730026830
|
[2] |
GEAR 74
|
21.3400(lbs); 9.700
|
| 009. |
0810000028
|
[2] |
BEARING
|
1.4740(lbs); 0.670
|
| 009. |
H704152430
|
[2] |
BEARING
|
1.4740(lbs); 0.670
|
| 010. |
3730027280
|
[2] |
NUT 50
|
0.2970(lbs); 0.135
|
| 011. |
3730027290
|
[2] |
PLUG
|
0.1540(lbs); 0.070
|
| 012. |
3532027600
|
[1] |
ASSY REAR WHEEL (12.
|
0.0000(lbs); 0.000
|
| 013. |
7000000293
|
[1] |
ASSY REAR WHEEL LH (
|
0.0000(lbs); 0.000
|
| 013. |
3532027610
|
[1] |
ASSY REAR WHEEL LH (
|
0.0000(lbs); 0.000
|
| 014. |
7000000308
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 014. |
3726027620
|
[1] |
TIRE
|
77.0000(lbs); 35.000
|
| 015. |
7000000309
|
[1] |
TUBE
|
0.0000(lbs); 0.000
|
| 015. |
3726027630
|
[1] |
TUBE
|
5.5000(lbs); 2.500
|
| 016. |
7000000294
|
[1] |
RIM REAR
|
0.0000(lbs); 0.000
|
| 016. |
3726027640
|
[1] |
RIM REAR
|
0.0000(lbs); 0.000
|
| 017. |
7000000236
|
[1] |
DISK
|
0.0000(lbs); 0.000
|
| 017. |
3532027660
|
[1] |
DISK
|
31.9000(lbs); 14.500
|
| 018. |
7000000010
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 018. |
3122027680
|
[6] |
BOLT
|
0.1980(lbs); 0.090
|
| 019. |
7000000098
|
[6] |
NUT
|
0.0000(lbs); 0.000
|
| 019. |
0217450160
|
[6] |
NUT
|
0.0484(lbs); 0.022
|
| 020. |
0451250160
|
[6] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 021. |
7000000292
|
[1] |
ASSY REAR WHEEL RH (
|
0.0000(lbs); 0.000
|
| 021. |
3532027690
|
[1] |
ASSY REAR WHEEL RH (
|
0.0000(lbs); 0.000
|
| 022. |
7000000308
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 022. |
3726027620
|
[1] |
TIRE
|
77.0000(lbs); 35.000
|
| 023. |
7000000309
|
[1] |
TUBE
|
0.0000(lbs); 0.000
|
| 023. |
3726027630
|
[1] |
TUBE
|
5.5000(lbs); 2.500
|
| 024. |
7000000294
|
[1] |
RIM REAR
|
0.0000(lbs); 0.000
|
| 025. |
7000000236
|
[1] |
DISK
|
0.0000(lbs); 0.000
|
| 025. |
3532027660
|
[1] |
DISK
|
31.9000(lbs); 14.500
|
| 026. |
7000000010
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
3122027680
|
[6] |
BOLT
|
0.1980(lbs); 0.090
|
| 027. |
3726027640
|
[1] |
RIM REAR
|
0.0000(lbs); 0.000
|
| 027. |
7000000098
|
[6] |
NUT
|
0.0000(lbs); 0.000
|
| 027. |
0217450160
|
[6] |
NUT
|
0.0484(lbs); 0.022
|
| 028. |
0451250160
|
[6] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 029. |
3541049150
|
[16] |
STUD
|
0.1716(lbs); 0.078
|
| 030. |
3650049390
|
[16] |
NUT
|
0.0946(lbs); 0.043
|
| 031. |
3650049410
|
[16] |
SPRING
|
0.0484(lbs); 0.022
|
