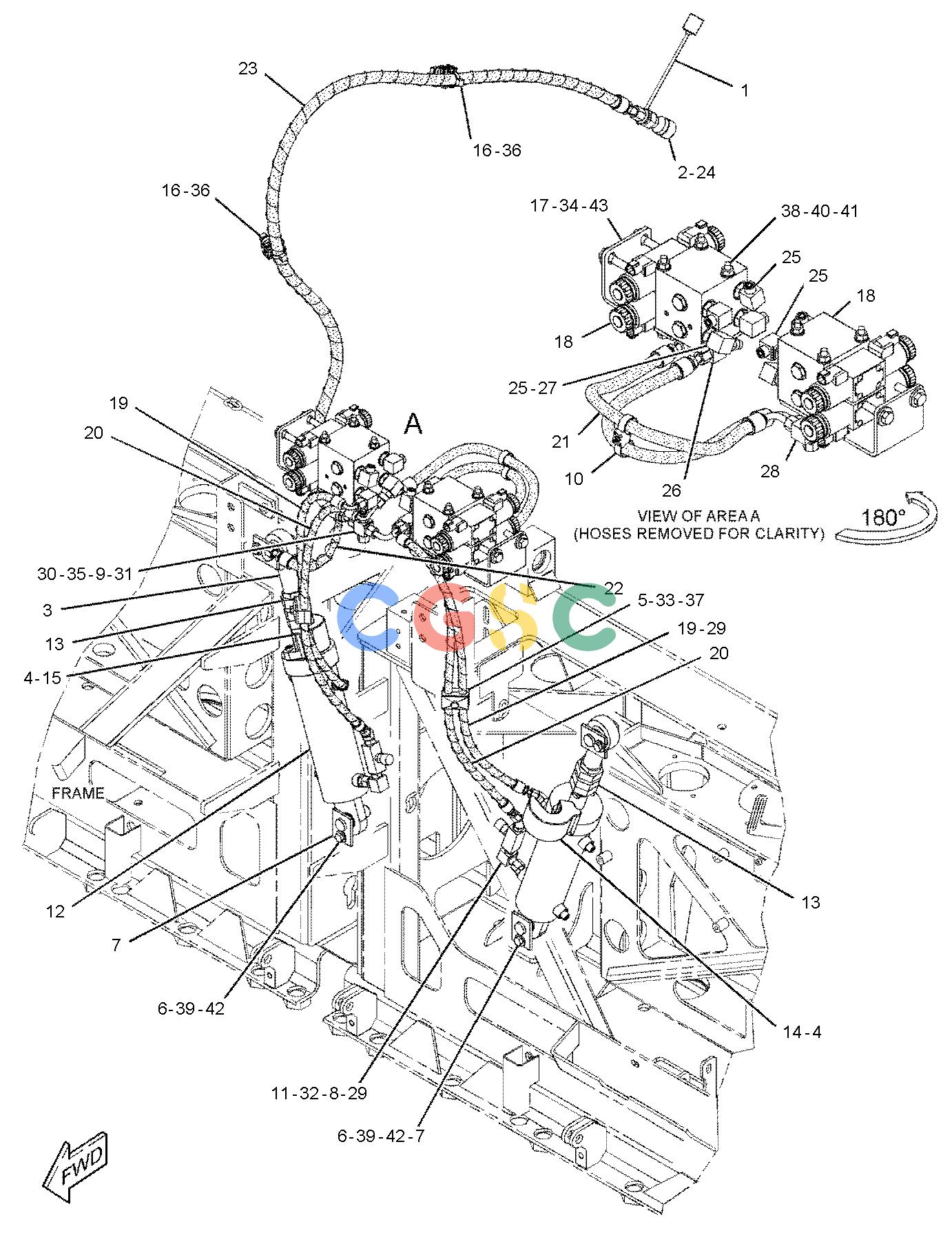

卡特零件查询（BG1055E） 328-3515: LINES GP-SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
140 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6301 | [1] | PLUG-DUST | |
| 2. | 5R-6307 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| 3. | 8C-1457 | [2] | BEARING | |
| 4. | 9D-8831 | [2] | BOLT-SPECIAL | |
| 5. | 102-8703 | [2] | PLATE-COVER | |
| 6. | 106-6340 | [4] | SPACER(10.74X17.14X7-MM THK) | |
| 7. | 108-2084 | [4] | PIN AS | |
| 8. | 149-0195 | [2] | VALVE-SHUTOFF(HYDRAULIC CYLINDER) | |
| 9. | 165-6365 | [1] | FITTING AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7W-7381 | [1] | FITTING-OUTLET | |
| 10. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 11. | 183-3399 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 12. | 197-9766Y | [2] | CYLINDER GP-HYDRAULIC(SLOPE) | |
| 13. | 197-9767 | [6] | NUT-JAM(1-1/4-12-THD) | |
| 14. | 197-9768 | [1] | SPACER | |
| 15. | 197-9769 | [1] | SPACER | |
| 16. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 17. | 366-4386 | [2] | BRACKET | |
| 18. | 332-1453Y | [2] | VALVE GP-SOLENOID(SLOPE) | |
| 19. | 338-0699I | [2] | HOSE AS | |
| 20. | 338-0700I | [2] | HOSE AS | |
| 21. | 338-0701I | [2] | HOSE AS | |
| 22. | 338-0702I | [1] | HOSE AS | |
| 23. | 338-0703I | [1] | HOSE AS | |
| 24. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 25. | 148-8374 | [10] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 26. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 27. | 148-8413 | [2] | REDUCER AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8934 | [1] | ADAPTER | |
| 28. | 148-8434 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9843 | [1] | TEE | |
| 29. | 150-3033 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 30. | 150-3069 | [1] | UNION AS | |
| | 6V-8397 | [4] | SEAL-O-RING | |
| | 7X-3406 | [1] | ADAPTER-CROSS | |
| 31. | 150-3070 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4I-6287 | [1] | COUPLING | |
| 32. | 150-4050 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8T-0788 | [1] | ELBOW | |
| 33. | 156-3617 | [4] | CLAMP-HALF | |
| 34. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 35. | 6V-9829B | [1] | CAP | |
| 36. | 7K-1181 | [4] | STRAP-CABLE | |
| 37. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 38. | 7X-2544M | [6] | BOLT(M10X1.5X140-MM) | |
| 39. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 40. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 42. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 43. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
