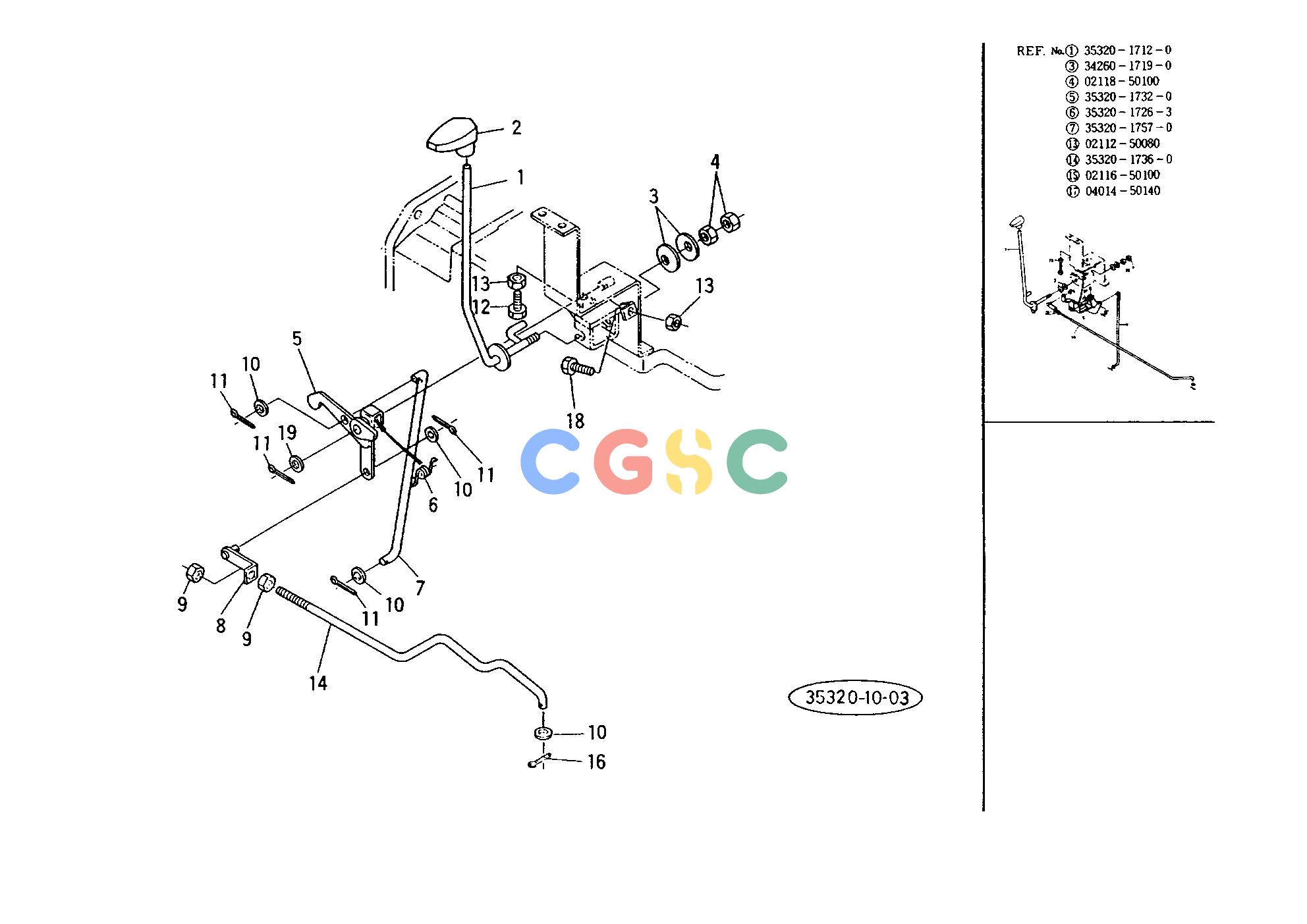

久保田零件查询T02900 HAND ACCEL SPEED CHANGE LEVER/BRAKEEPC Kubota online

广数供应链运营团队, 16 02月, 2025，浏览： 809 次

Pos.	Part No	Qty	Parts name	Comments
001.	3532017120	[1]	LEVER HAND ACCEL	; <=10514 0.7810(lbs); 0.355
001.	3517017120	[1]	LEVER HAND ACCEL	; =>10515 0.7590(lbs); 0.345
002.	3532017170	[1]	GRIP ACCEL	0.0396(lbs); 0.018
003.	3426017190	[2]	SPRING	; =>10515 0.0044(lbs); 0.002
004.	0211850100	[2]	NUT	; =>10515 0.0110(lbs); 0.005
005.	3532017324	[1]	LINK ACCEL	; <=10514 0.6930(lbs); 0.315
005.	3517017320	[1]	LINK ACCEL	; =>10515 0.2640(lbs); 0.120
006.	3532017260	[1]	SPRING	; <=10239 0.0000(lbs); 0.000
006.	3532017263	[1]	SPRING	; =>10001 0.0440(lbs); 0.020
006.	3415017260	[1]	SPRING	; =>10515 0.0220(lbs); 0.010
007.	3532017570	[1]	ROD ACCEL	; <=10514 0.1760(lbs); 0.080
007.	3730017570	[1]	ROD ACCEL	; =>10515 0.1650(lbs); 0.075
008.	3415017390	[1]	JOINT ROD	0.0550(lbs); 0.025
009.	0201250060	[2]	NUT	0.0044(lbs); 0.002
010.	0401250060	[5]	WASHER PLAIN	0.0022(lbs); 0.001
011.	0551150520	[5]	PIN SPLIT	0.0132(lbs); 0.006
012.	0115250830	[1]	BOLT	0.0308(lbs); 0.014
013.	0211250080	[2]	NUT	; =>10515 0.0066(lbs); 0.003
014.	3532017360	[1]	ROD ACCEL 3	; <=10514 0.3410(lbs); 0.155
014.	3532017363	[1]	ROD ACCEL 3	; =>10515 0.3740(lbs); 0.170
015.	0211650100	[1]	NUT	0.0088(lbs); 0.004
016.	0551151612	[1]	PIN SPLIT	0.0022(lbs); 0.001
017.	0401450140	[1]	WASHER PLAIN	0.0264(lbs); 0.012
018.	0115250840	[1]	BOLT	; =>10515 0.0000(lbs); 0.000
019.	0401250080	[1]	WASHER PLAIN	; =>10515 0.0022(lbs); 0.001
