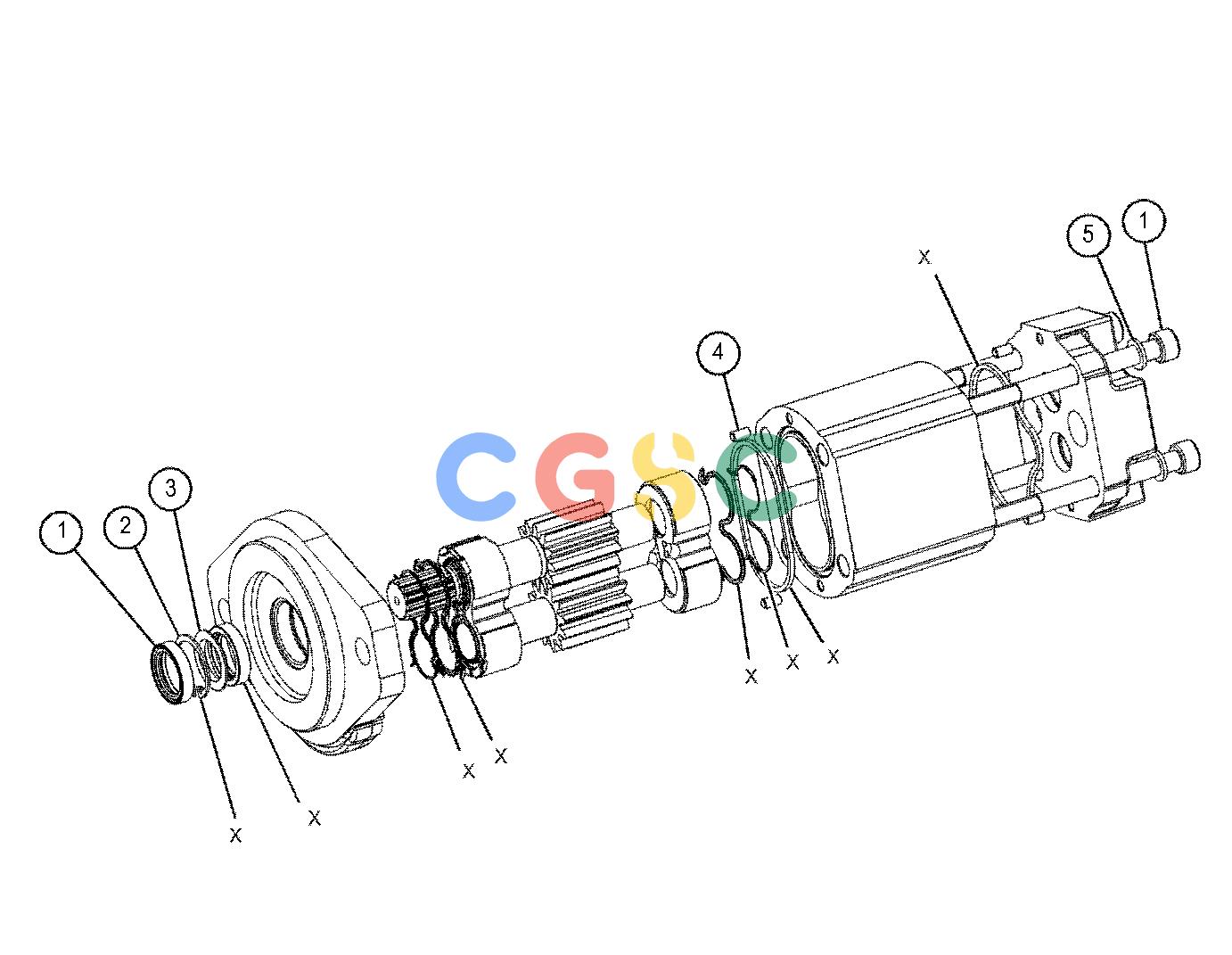

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 195-3042 | [4] | BOLT-SOCKET HEAD(M10X1.5X115-MM) | |
| 2. | 095-0936J | [1] | RING-RETAINING | |
| 3. | 442-6237 | [1] | WASHER-BACKUP | |
| 4. | 150-5785 | [4] | DOWEL | |
| 5. | 7X-0608 | [4] | WASHER-HARD(10.2X16X2-MM THK) | |
| AVAILABLE REPLACEMENT PART(S): | ||||
| 392-6525J | [1] | KIT-SEAL | ||
| ( KIT-SEAL INCLUDES PARTS MARKED 'X' IN THE GRAPHIC ) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
