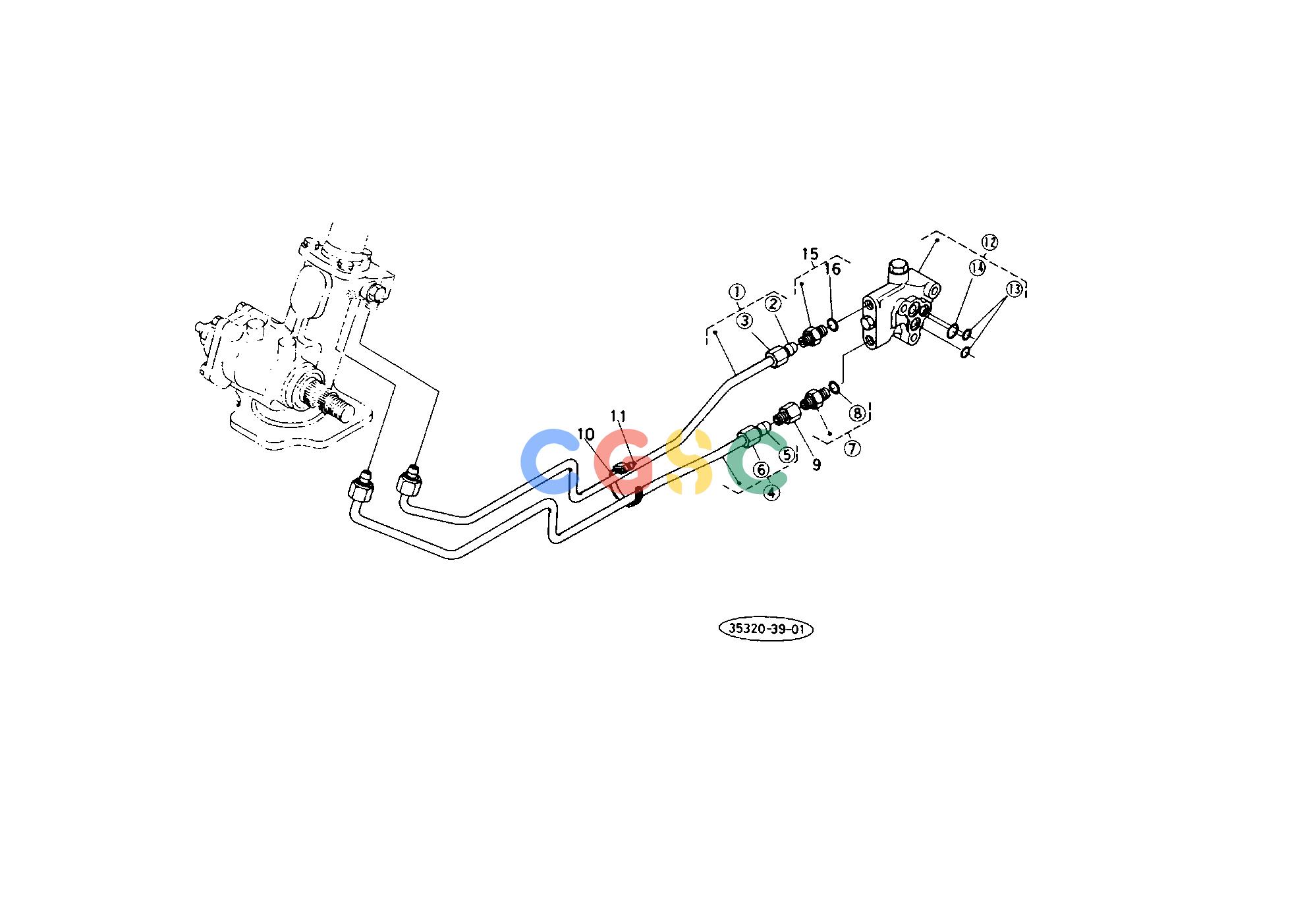

久保田零件查询T05800 FLOW PRIORITY VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3533016720
|
[1] |
ASSY PIPE 1
|
0.5500(lbs); 0.250
|
| 004. |
3533016760
|
[1] |
ASSY PIPE 2
|
0.5720(lbs); 0.260
|
| 007. |
3533016770
|
[1] |
ASSY CONNECTOR
|
0.1474(lbs); 0.067
|
| 008. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 009. |
3533016790
|
[1] |
NIPPLE
|
0.1100(lbs); 0.050
|
| 010. |
3715038950
|
[1] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 010. |
6711153771
|
[1] |
BAND PIPE
|
0.0000(lbs); 0.000
|
| 011. |
3343082760
|
[1] |
PIN
|
0.0088(lbs); 0.004
|
| 012. |
3532016710
|
[1] |
VALVE FLOW PRIORITY
|
4.1800(lbs); 1.900
|
| 013. |
0481000120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 014. |
0481000160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 015. |
3527016790
|
[1] |
JOINT 2
|
0.1100(lbs); 0.050
|
| 016. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
