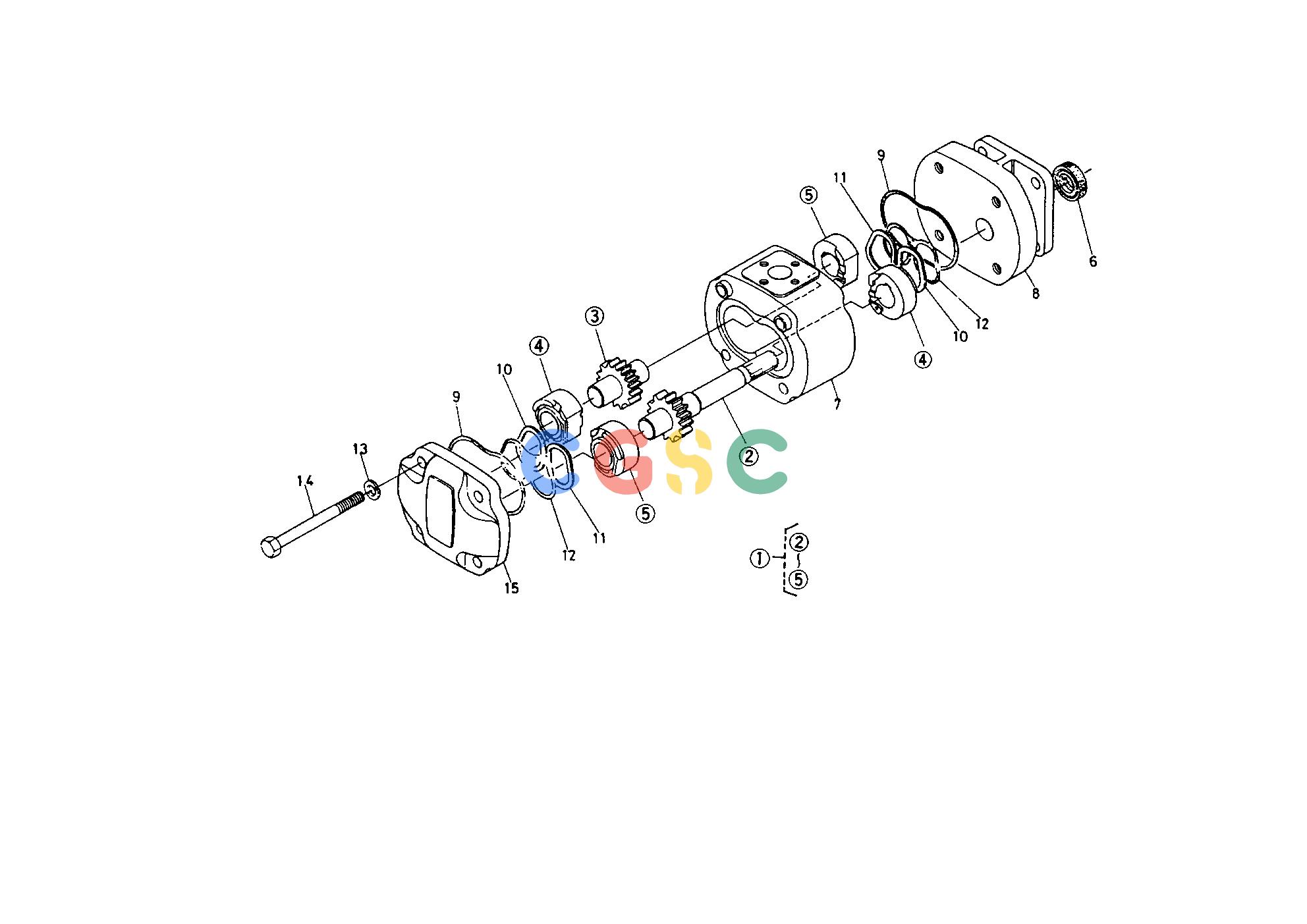

久保田零件查询T07500 OIL PRESSURE PUMP SECTION PARTSEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3532036200
|
[1] |
ASSY BUSH GEAR
|
1.5620(lbs); 0.710
|
| 006. |
3532036230
|
[1] |
SEAL OIL
|
0.0110(lbs); 0.005
|
| 009. |
3532036260
|
[2] |
SEAL BODY
|
0.0110(lbs); 0.005
|
| 010. |
3532036220
|
[2] |
RING GASKET L
|
0.0022(lbs); 0.001
|
| 011. |
3532036250
|
[2] |
RING GASKET R
|
0.0044(lbs); 0.002
|
| 012. |
3532036240
|
[2] |
SEAL BUSH
|
0.0110(lbs); 0.005
|
| 013. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 014. |
3532036310
|
[4] |
BOLT
|
0.1210(lbs); 0.055
|
| 016. |
3532036100
|
[1] |
PUMP OIL PRESSURE
|
6.1600(lbs); 2.800
|
