卡特零件查询（BG1055E） 342-7823: LINES GP-WATER
广数供应链运营团队, 16 02月, 2025，浏览：
499 次

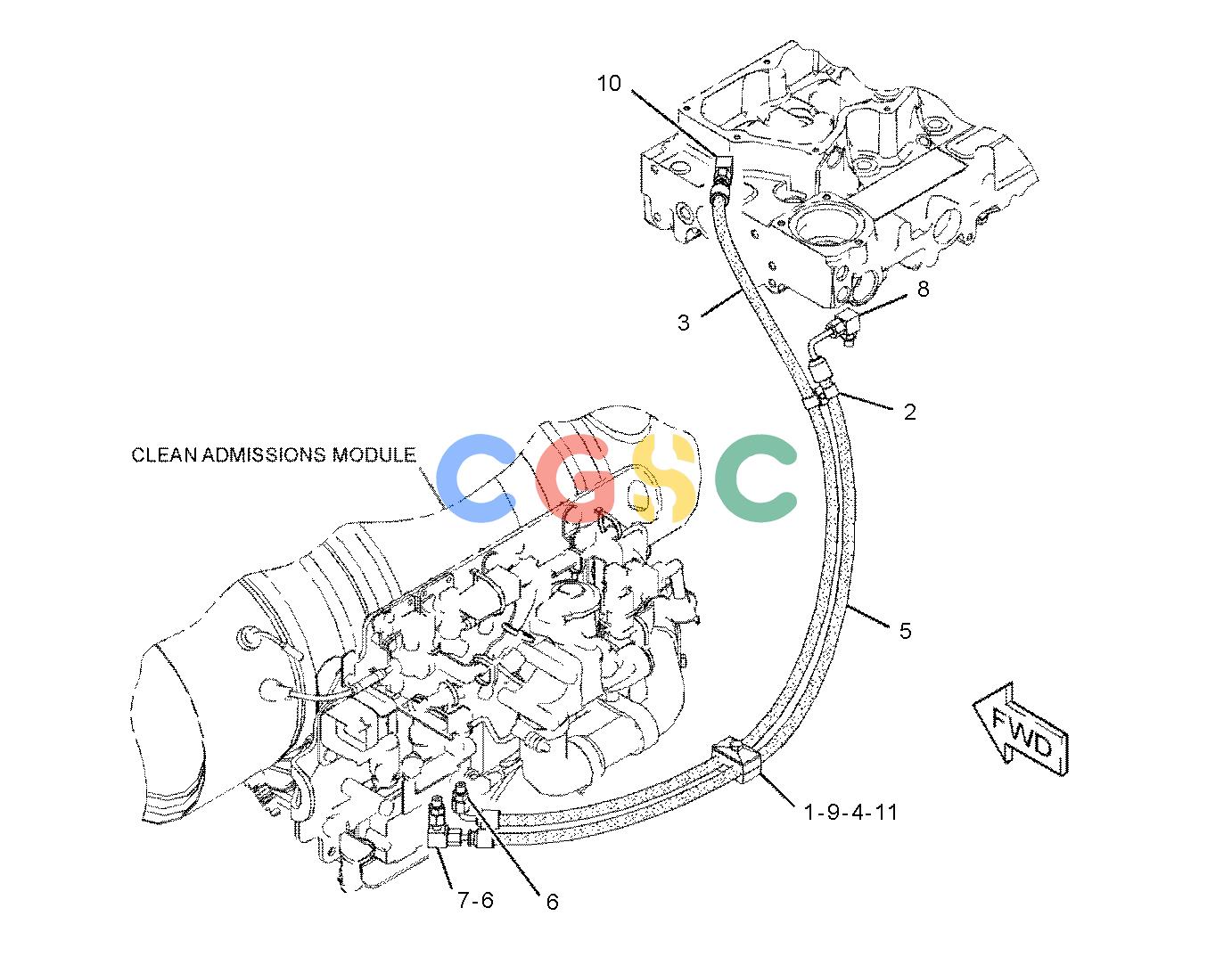

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8705 | [1] | PLATE(TOP) | |
| 2. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 3. | 187-7684I | [1] | HOSE AS | |
| 4. | 206-0452 | [1] | PLATE | |
| 5. | 304-2214I | [1] | HOSE AS | |
| 6. | 148-8316 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 7. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 8. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 9. | 154-4882 | [2] | CLAMP-HALF | |
| 10. | 304-7966 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9028 | [1] | SEAL-O-RING | |
| | 295-4107 | [1] | ELBOW | |
| 11. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
