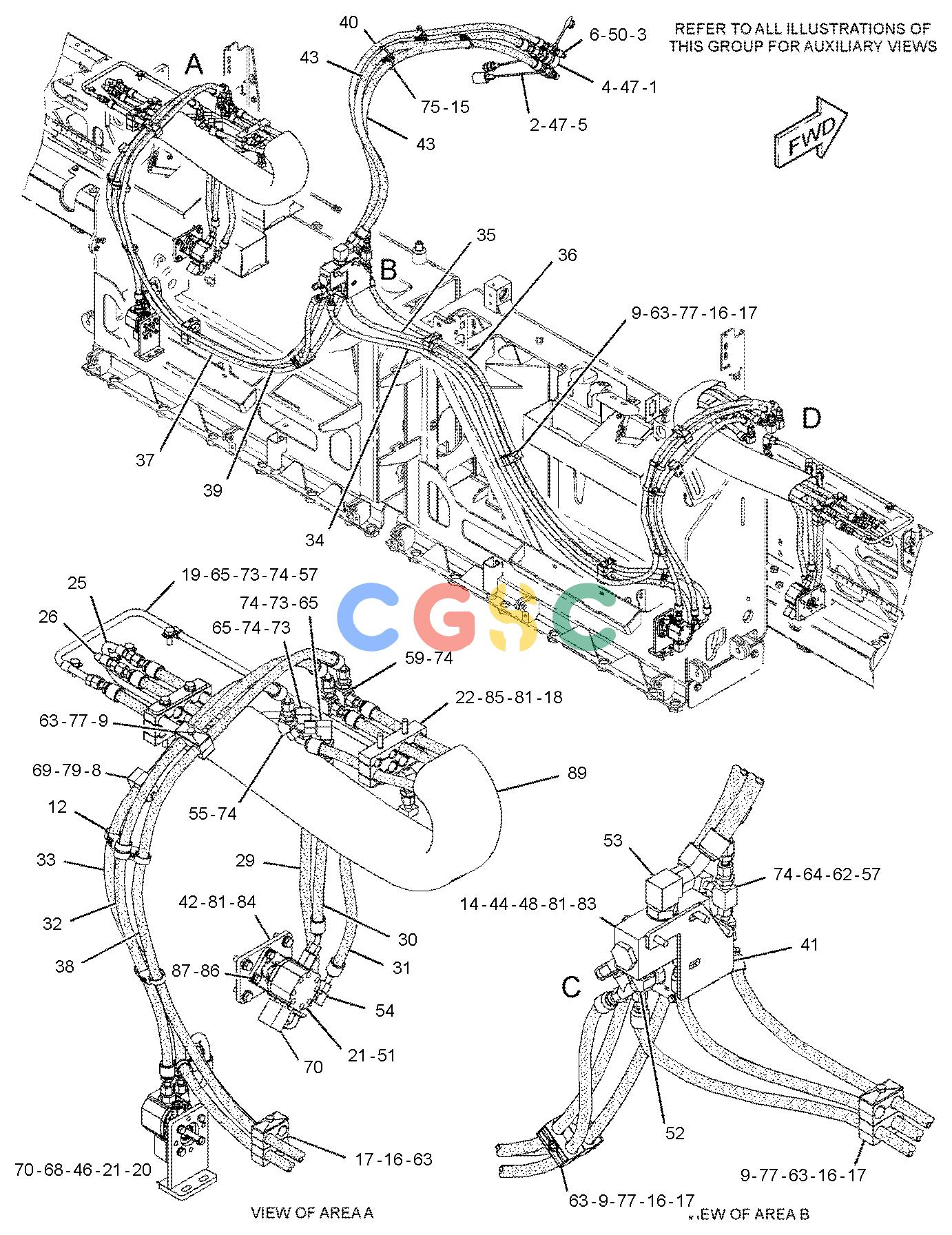

卡特零件查询（BG1055E） 328-3517: LINES GP-VIBRATORY_卡特彼勒Caterpillar_工程机械

Pos.	Part No	Qty	Parts name
1.	5R-5718	[1]	PLUG-DUST
2.	5R-5719	[1]	CAP-DUST
3.	161-2560C	[1]	CAP-DUST
4.	5R-6304	[1]	COUPLER AS-QUICK DISCONNECT(FEMALE)
	3S-9233	[1]	SEAL-O-RING
		[1]	RETAINER
5.	5R-6305	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
6.	153-2996C	[1]	FITTING AS(QUICK DISCONNECT, MALE)
7.	6V-0852	[1]	CAP-DUST
8.	7V-5628	[2]	PLATE(TOP)
9.	102-8705	[6]	PLATE(TOP)
10.	107-0003	[1]	MANIFOLD
11.	148-8424	[1]	TEE AS
	6V-8397	[1]	SEAL-O-RING
	8T-8902	[1]	ADAPTER-TEE
12.	177-2215B	[9]	STRAP-DUAL CLAMP
13.	183-3403	[1]	ELBOW AS
	214-7568	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
	8L-2779	[1]	SEAL-O-RING
14.	197-5273	[1]	VALVE GP-FLOW DIVIDER(VIBRATORY)
15.	200-6345	[3]	SADDLE-MOUNTING(DUAL SWIVEL)
16.	206-0451M	[6]	BOLT-STACKING(M8X1.25X44-MM)
17.	206-0452	[6]	PLATE
18.	289-8491	[4]	PLATE
19.	307-8413	[2]	TUBE AS
20.	308-0468	[2]	MOUNT AS
21.	308-2125Y	[4]	MOTOR GP-GEAR(VIBRATORY)
22.	308-5823	[4]	CLAMP AS
23.	309-0932	[1]	TUBE AS
24.	309-0934	[1]	TUBE AS
25.	309-1584	[1]	TUBE AS
26.	309-1616	[1]	TUBE AS
27.	338-9290I	[4]	HOSE AS
28.	338-9291I	[2]	HOSE AS
29.	338-9292I	[2]	HOSE AS
30.	338-9293I	[2]	HOSE AS
31.	338-9294I	[2]	HOSE AS
32.	338-9295I	[2]	HOSE AS
33.	338-9296I	[2]	HOSE AS
34.	338-9297I	[1]	HOSE AS
35.	338-9298I	[1]	HOSE AS
36.	338-9299I	[1]	HOSE AS
37.	338-9300I	[1]	HOSE AS
38.	338-9499I	[1]	HOSE AS
39.	338-9500I	[1]	HOSE AS
40.	338-9501I	[1]	HOSE AS
41.	338-9507	[1]	BRACKET
42.	341-8399	[2]	PLATE
43.	346-1987I	[2]	HOSE AS
44.	148-8309	[3]	ADAPTER AS
			(EACH INCLUDES)
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
45.	148-8318	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8634	[1]	CONNECTOR
46.	148-8319	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8715	[1]	CONNECTOR
47.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
48.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
49.	148-8339	[1]	CONNECTOR AS
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
50.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
51.	148-8343	[2]	CONNECTOR AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	9X-6550	[1]	CONNECTOR
52.	148-8353	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9001	[1]	ELBOW
53.	148-8360	[1]	ELBOW AS
	6V-9182	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
54.	148-8361	[2]	ELBOW AS(90-DEG)
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9200	[1]	ELBOW
55.	148-8366	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8987	[1]	ELBOW
56.	148-8367	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	6V-9850	[1]	ELBOW
57.	148-8371	[3]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
58.	148-8374	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8723	[1]	ELBOW
59.	148-8377	[4]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8980	[1]	ELBOW
60.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
61.	148-8411	[2]	PLUG AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
62.	153-6246	[1]	TEE AS
	6V-8397	[3]	SEAL-O-RING
	7X-0820	[1]	TEE
63.	154-6583	[24]	CLAMP-HALF
64.	155-3502	[1]	ADAPTER AS
	3E-7403	[1]	ADAPTER
	6V-8398	[1]	SEAL-O-RING
65.	162-3052	[6]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-0130	[1]	ELBOW
66.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
67.	164-5616	[1]	PLUG AS
	2S-4078	[1]	SEAL-O-RING
	9S-6130	[1]	PLUG
68.	173-7225	[2]	TEE AS
			(EACH INCLUDES)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-9161	[1]	TEE
69.	1G-9959	[4]	CLAMP
70.	205-3692	[4]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	9X-2134	[1]	ELBOW
71.	5C-2890BM	[3]	NUT(M6X1-THD)
72.	5C-7261M	[8]	NUT(M8X1.25-THD)
73.	6V-8397	[6]	SEAL-O-RING
74.	6V-9168	[13]	NUT(11/16-16-THD)
75.	7K-1181	[6]	STRAP-CABLE
76.	7X-0465M	[2]	BOLT(M6X1X100-MM)
77.	7X-0818M	[6]	BOLT(M8X1.25X45-MM)
78.	7X-2537M	[12]	BOLT(M8X1.25X35-MM)
79.	8C-8451M	[4]	BOLT(M6X1X40-MM)
80.	8M-2770	[8]	CLIP(LOOP)
81.	8T-4121	[26]	WASHER-HARD(11X21X2.5-MM THK)
82.	8T-4136M	[8]	BOLT(M10X1.5X25-MM)
83.	8T-4172M	[2]	BOLT(M10X1.5X80-MM)
84.	8T-4195M	[8]	BOLT(M10X1.5X30-MM)
85.	8T-4178BM	[8]	BOLT(M10X1.5X90-MM)
86.	8T-4200M	[8]	BOLT(M8X1.25X16-MM)
87.	8T-4224	[28]	WASHER-HARD(8.8X16X2-MM THK)
88.	9X-8256B	[5]	WASHER(6.6X12X2-MM THK)
89.	160-2252G		SLEEVE-ABRASION(31.5-IN EACH)
	B		USE AS REQUIRED
	C		CHANGE FROM PREVIOUS TYPE
	G		ORDER BY THE INCH
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
