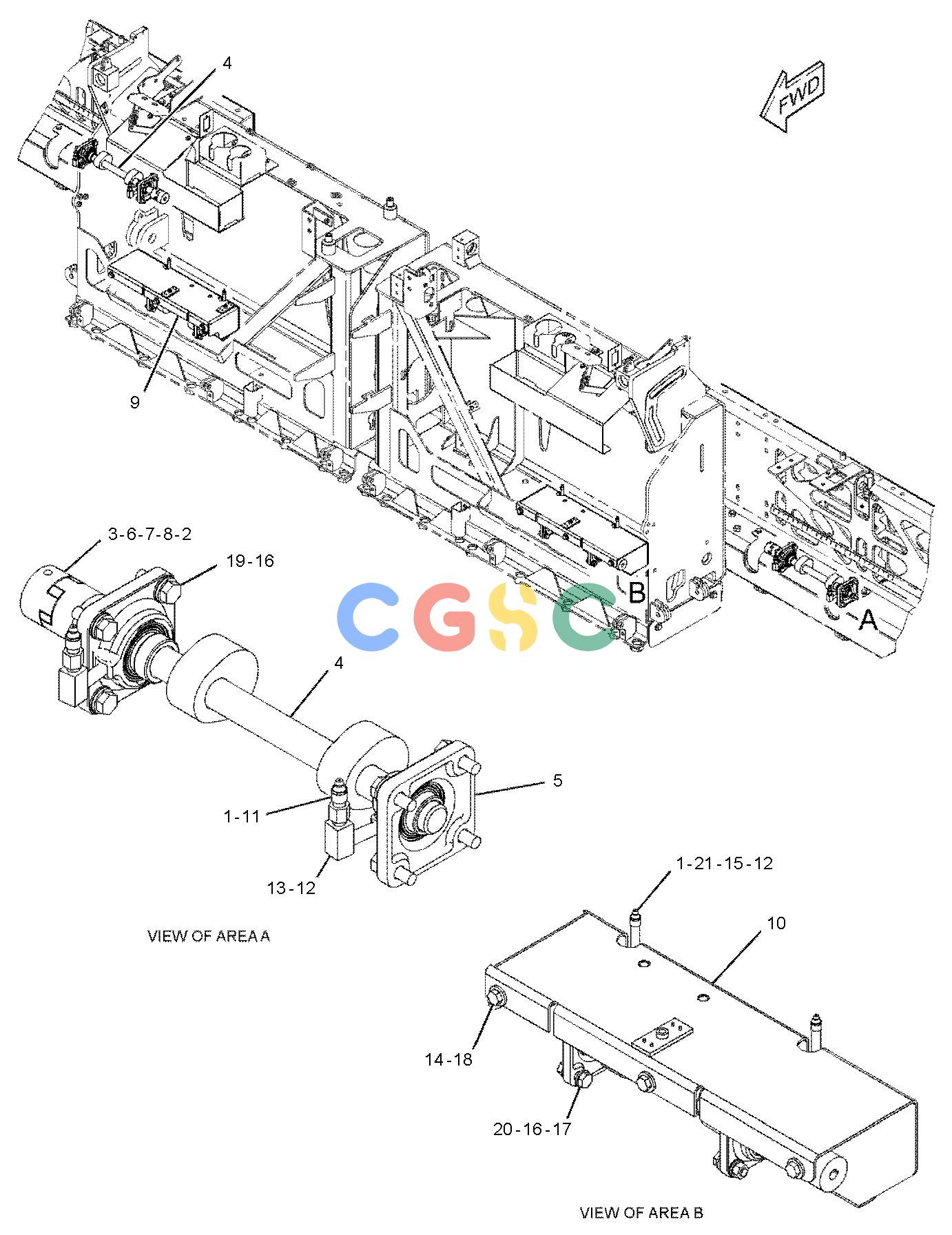

卡特零件查询（BG1055E） 328-3527: VIBRATORY GP
广数供应链运营团队, 16 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9982 | [8] | FITTING-GREASE | |
| 2. | 102-2739 | [4] | KEY-SQUARE | |
| 3. | 105-1533 | [4] | KEY-SQUARE | |
| 4. | 255-5343 | [4] | SHAFT AS-VIBRATORY | |
| 5. | 258-7574 | [8] | BEARING AS | |
| 6. | 310-6046 | [4] | COUPLER | |
| 7. | 310-6051 | [4] | SPIDER | |
| 8. | 310-6052 | [4] | COUPLER | |
| 9. | 333-3470 | [1] | COVER AS(LH) | |
| 10. | 333-3472 | [1] | COVER AS(RH) | |
| 11. | 002-0639 | [4] | ADAPTER-PIPE | |
| 12. | 3B-7733 | [8] | FITTING | |
| 13. | 4M-8973 | [4] | ELBOW | |
| 14. | 7X-7729 | [10] | WASHER(11X25X3-MM THK) | |
| 15. | 8B-4884 | [4] | ELBOW | |
| 16. | 8T-4121 | [48] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4133M | [16] | NUT(M10X1.5-THD) | |
| 18. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 19. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 20. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 21. | 9S-1812 | [4] | FITTING(NIPPLE-PIPE) | |
| | M | | METRIC PART |
