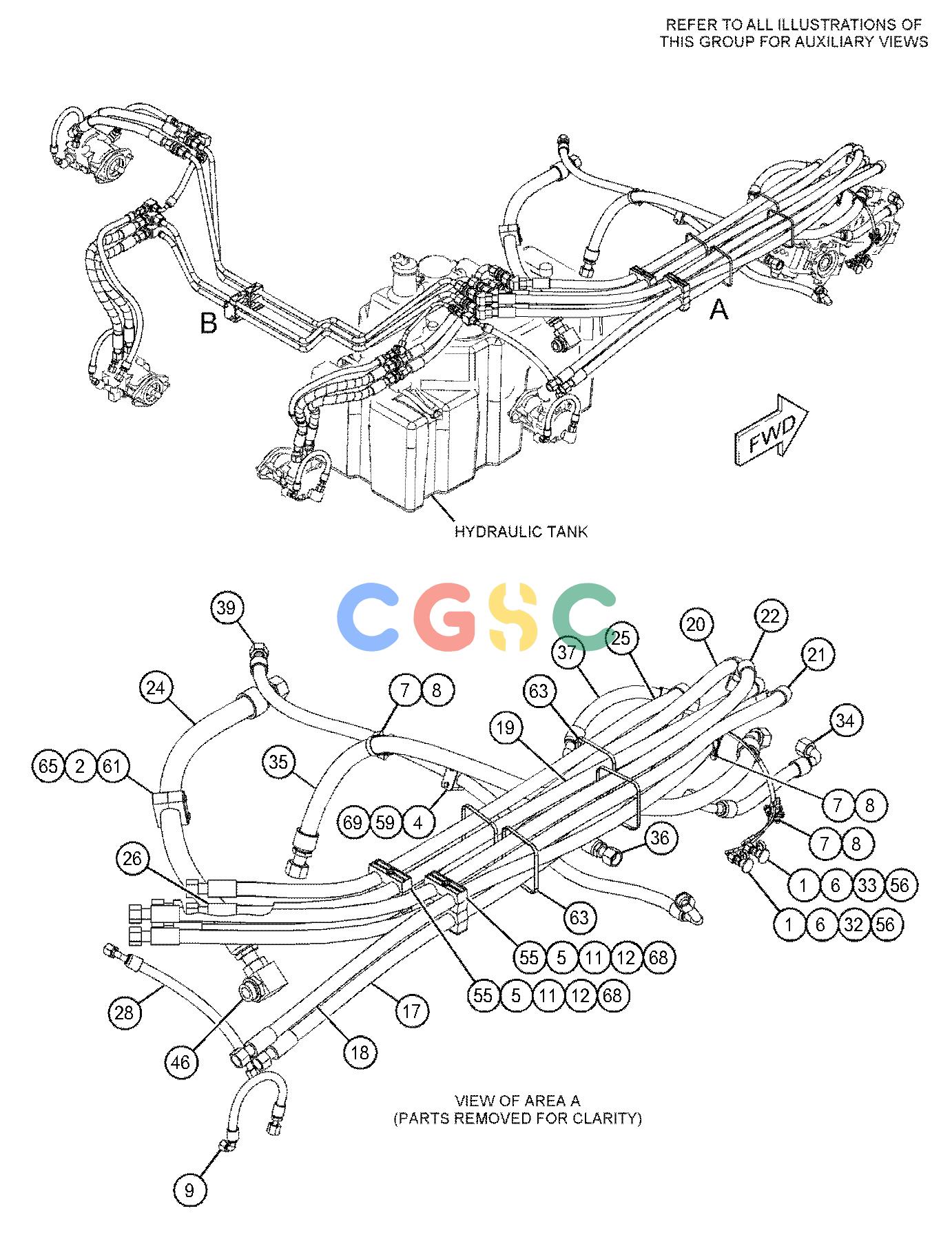

卡特零件查询（BG1055E） 332-1397: HYDRAULIC AR-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 333-2080Y | [1] | CYLINDER & MTG GP-AUGER | |
| | 333-1953Y | [1] | CYLINDER & MTG GP-HOPPER | |
| | 331-8954Y | [1] | CYLINDER & MTG GP-TOW POINT | |
| | 336-7903Y | [1] | LINES GP-BRAKE & SHIFT | |
| | 336-7901Y | [1] | LINES GP-CYLINDER | |
| | 336-7906Y | [1] | LINES GP-GRADE & SLOPE | |
| | 336-7900Y | [1] | LINES GP-HOPPER | |
| | 336-7904Y | [1] | LINES GP-PUMP | |
| | 336-7905Y | [1] | LINES GP-RETURN | |
| | 336-7899Y | [1] | LINES GP-SCREED | |
| | 336-7902Y | [1] | LINES GP-TRACK TENSION | |
| | 336-7894Y | [1] | PUMP & MTG GP-AUXILIARY | |
| | 336-7896Y | [1] | VALVE & MTG GP-AUXILIARY(HYDRAULIC OIL COOLER) | |
| | 336-7920Y | [1] | VALVE & MTG GP-AUXILIARY(SCREED EXTENSION) | |
| | 336-7895Y | [1] | VALVE & MTG GP-CONTROL(PARKING BRAKE MANUAL RELEASE) | |
| | 336-7898Y | [1] | VALVE & MTG GP-COUNTERBALANCE(HOPPER HOIST, TOW POINT) | |
| | 336-7897Y | [1] | VALVE & MTG GP-TRACK TENSIONER | |
| | Y | | SEPARATE ILLUSTRATION |
