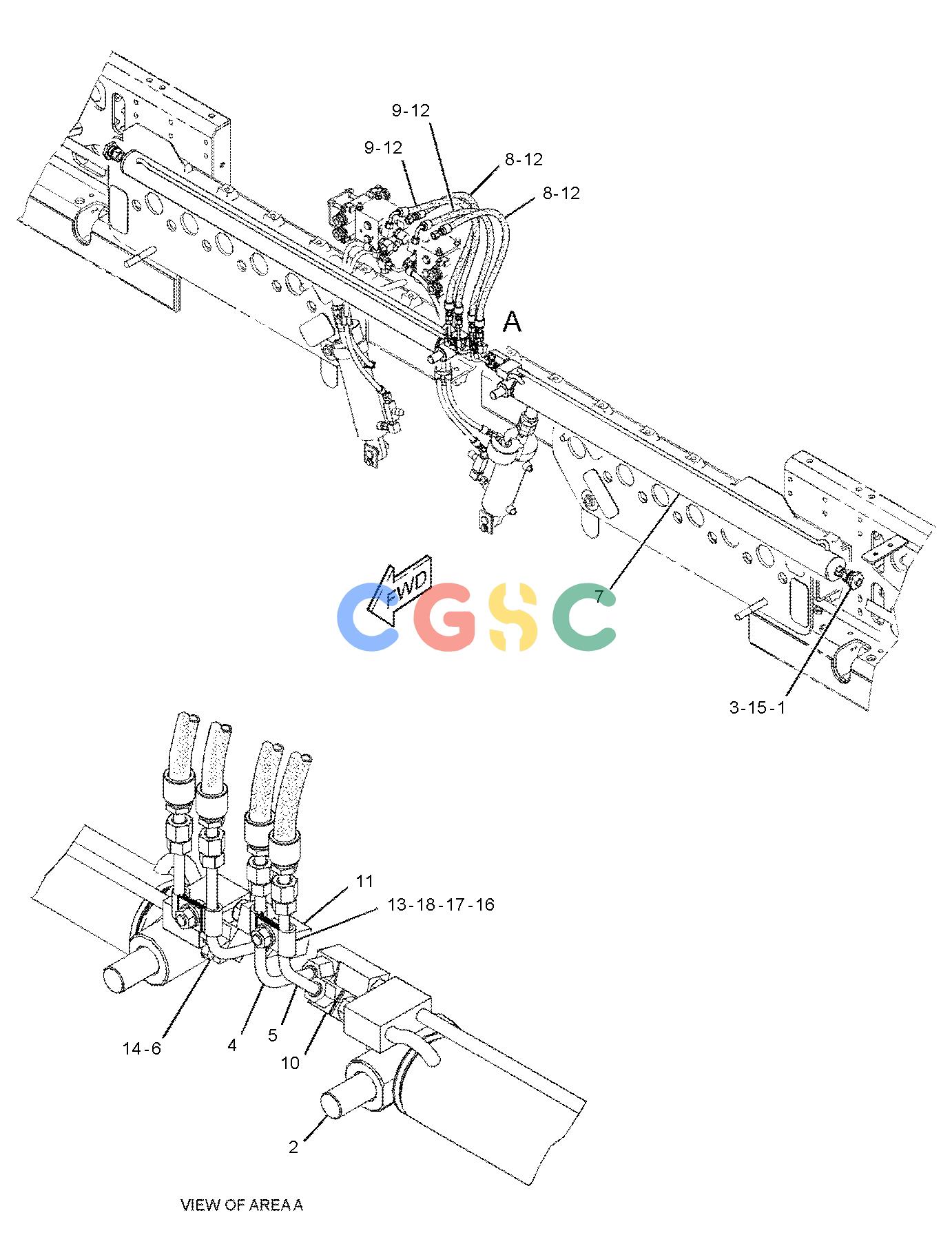

卡特零件查询（BG1055E） 336-7903: LINES GP-BRAKE & SHIFT
广数供应链运营团队, 16 02月, 2025，浏览：
751 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8705 | [6] | PLATE(TOP) | |
| 2. | 376-9470I | [1] | HOSE AS | |
| 3. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 4. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 5. | 204-2281 | [4] | STRAP-CABLE | |
| 6. | 204-4410I | [1] | HOSE AS | |
| 7. | 206-0451M | [1] | BOLT-STACKING(M8X1.25X44-MM) | |
| 8. | 239-4824I | [1] | HOSE AS | |
| 9. | 339-3638I | [1] | HOSE AS | |
| 10. | 339-3639I | [1] | HOSE AS | |
| 11. | 339-3640I | [1] | HOSE AS | |
| 12. | 339-3641I | [1] | HOSE AS | |
| 13. | 339-3642I | [1] | HOSE AS | |
| 14. | 339-3643I | [1] | HOSE AS | |
| 15. | 341-1049I | [1] | HOSE AS | |
| 16. | 358-0761I | [1] | HOSE AS | |
| 17. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 18. | 148-8377 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 19. | 148-8433 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 20. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 21. | 4V-0611 | [14] | CLAMP | |
| 22. | 6V-9168 | [5] | NUT(11/16-16-THD) | |
| 23. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 24. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
