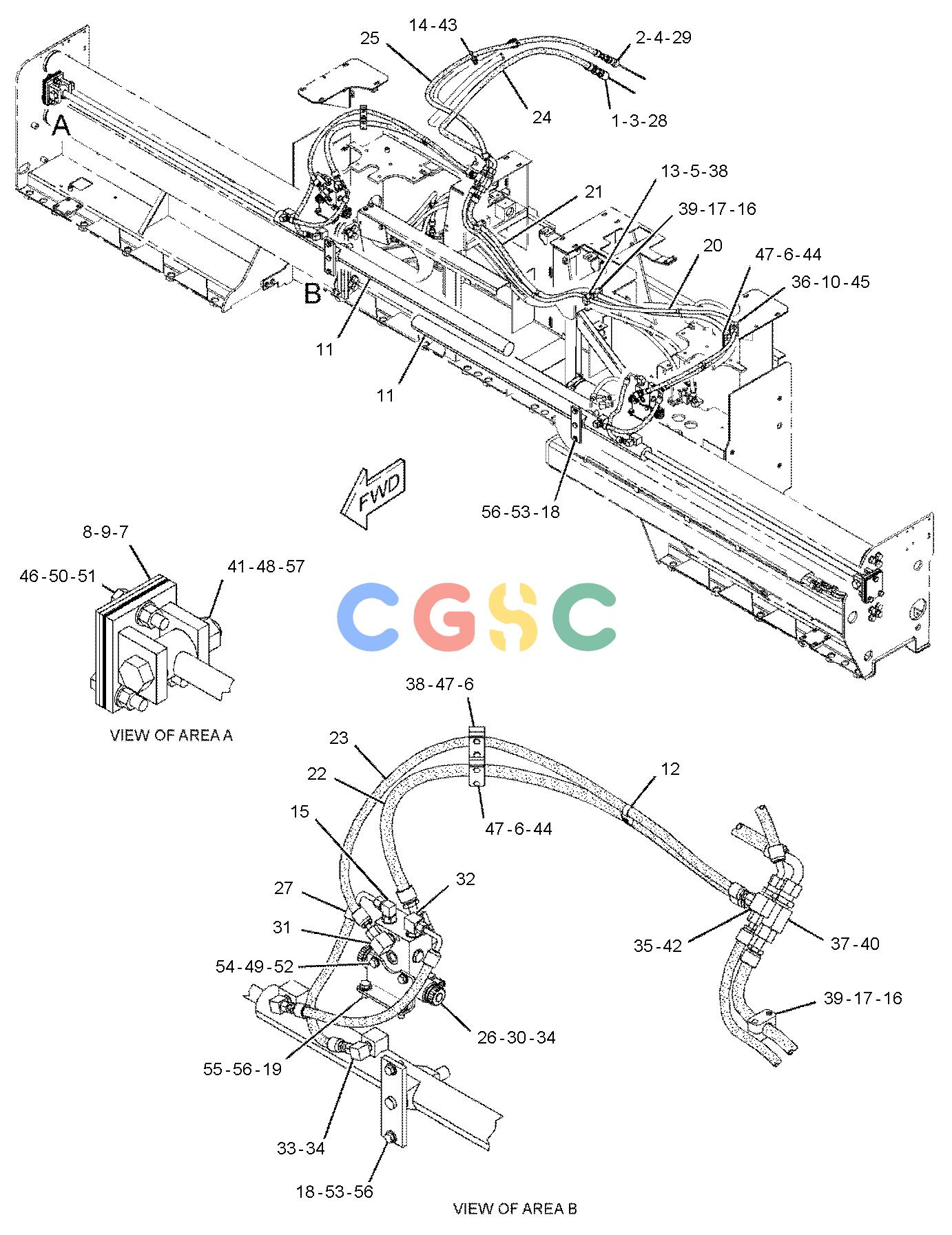

卡特零件查询（BG1055E） 328-3600: LINES GP-EXTENSION
广数供应链运营团队, 16 02月, 2025，浏览：
241 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5719 | [1] | CAP-DUST | |
| 2. | 5R-6301 | [1] | PLUG-DUST | |
| 3. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 4. | 5R-6307 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| 5. | 7R-7954 | [1] | PLATE | |
| 6. | 7V-5628 | [3] | PLATE(TOP) | |
| 7. | 8I-0694 | [2] | BRACKET AS | |
| 8. | 8I-0695B | [4] | SHIM(6.4-MM THK) | |
| 9. | 8I-0696B | [6] | SHIM(1.5-MM THK) | |
| 10. | 102-8705 | [1] | PLATE(TOP) | |
| 11. | 135-0217Y | [2] | CYLINDER GP-HYDRAULIC(EXTENDER) | |
| 12. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 13. | 196-4205M | [2] | BOLT-STACKING(M6X1X44-MM) | |
| 14. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 15. | 205-7202 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 168-4988 | [1] | ELBOW | |
| 16. | 207-2386M | [4] | BOLT-STACKING(M6X1.25X49-MM) | |
| 17. | 207-2387 | [2] | PLATE | |
| 18. | 279-7396 | [2] | PLATE | |
| 19. | 308-3079 | [2] | BRACKET | |
| 20. | 328-3566I | [1] | HOSE AS | |
| 21. | 328-3567I | [1] | HOSE AS | |
| 22. | 328-3591I | [1] | HOSE AS | |
| 23. | 328-3592I | [1] | HOSE AS | |
| 24. | 328-3593I | [1] | HOSE AS | |
| 25. | 328-3594I | [1] | HOSE AS | |
| 26. | 332-1452 | [2] | VALVE GP-SOLENOID(EXTENDER, SLOPE) | |
| 27. | 336-9193I | [4] | HOSE AS | |
| 28. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 29. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 30. | 148-8359 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9877 | [1] | ELBOW | |
| 31. | 148-8365 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 32. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 33. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 34. | 148-8407 | [6] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 35. | 148-8427 | [1] | TEE AS | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 36. | 154-6583 | [2] | CLAMP-HALF | |
| 37. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 38. | 1G-9959 | [4] | CLAMP | |
| 39. | 208-0075 | [4] | CLAMP-HALF | |
| 40. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 41. | 6V-8190 | [2] | NUT(1-8-THD) | |
| 42. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 43. | 7K-1181 | [4] | STRAP-CABLE | |
| 44. | 7V-6089 | [4] | CLAMP | |
| 45. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 46. | 7X-2554M | [6] | BOLT(M16X2X70-MM) | |
| 47. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 48. | 8C-8844 | [2] | BOLT(1-8X5-IN) | |
| 49. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 50. | 8T-4122 | [6] | WASHER-HARD(17X32X3.5-MM THK) | |
| 51. | 8T-4132M | [6] | NUT(M16X2-THD) | |
| 52. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 53. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 54. | 8T-4178M | [4] | BOLT(M10X1.5X90-MM) | |
| 55. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 56. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 57. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
