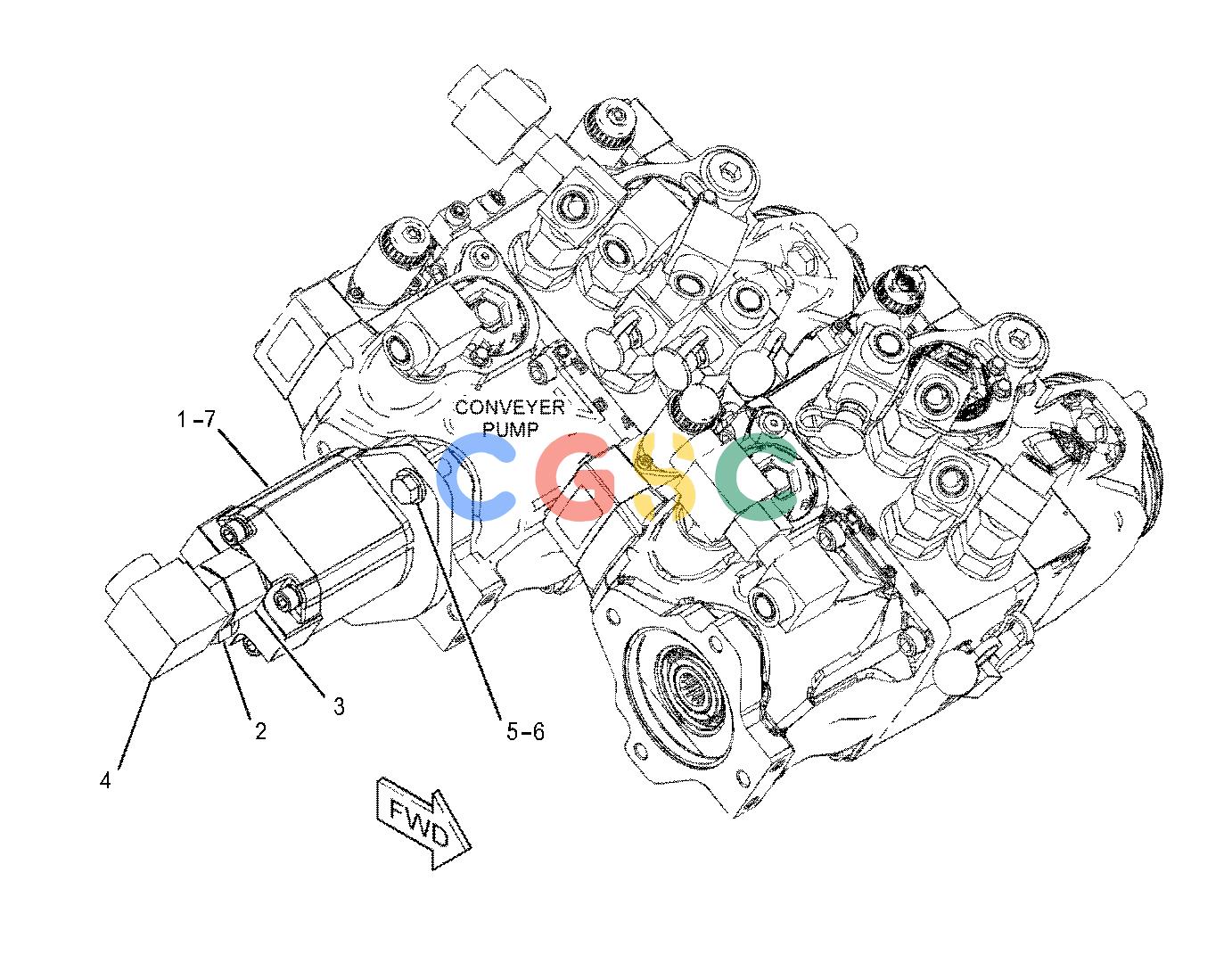

卡特零件查询（BG1055E） 457-7570: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
675 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 354-6935Y | [1] | PUMP GP-GEAR(CONVEYOR) | |
| 2. | 148-8322 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 304-8018 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-5258 | [1] | ADAPTER | |
| 4. | 341-0086 | [1] | ELBOW AS | |
| | 8C-3364 | [1] | ELBOW | |
| | 228-7094 | [1] | SEAL-O-RING | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 5. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 7. | 8T-5049 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
