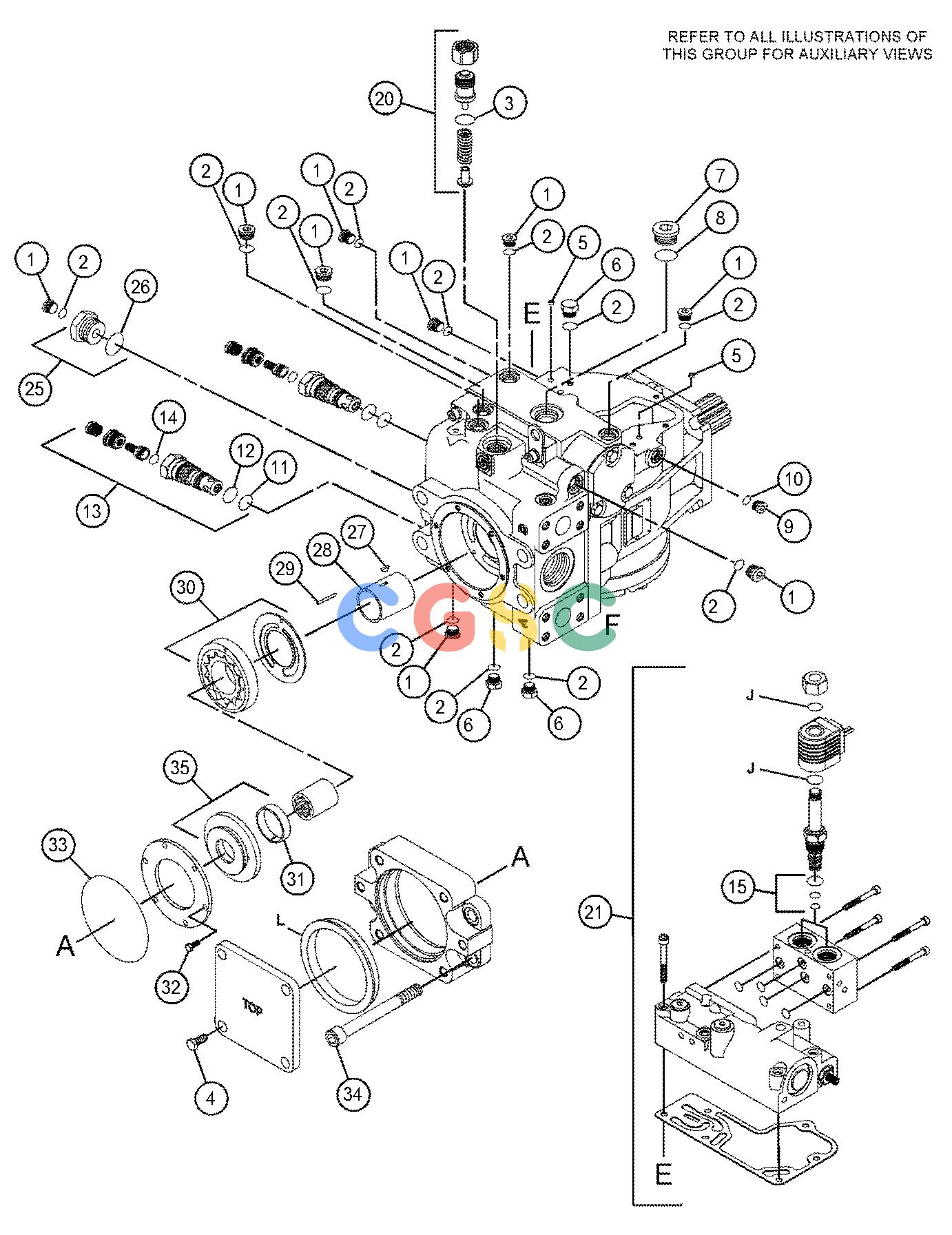

卡特零件查询（BG1055E） 339-9906: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-8004 | [9] | PLUG(9/16-18-THD) | |
| 2. | 3J-1907H | [12] | SEAL-O-RING | |
| 3. | 2M-9780HP | [1] | SEAL-O-RING | |
| 4. | 6H-1717 | [4] | BOLT(1/2-13X1.125-IN) | |
| 5. | 7X-9232H | [3] | PLUG-VENT(PISTON PUMP) | |
| 6. | 9S-4191 | [3] | PLUG(9/16-18-THD) | |
| 7. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 8. | 3D-2824H | [2] | SEAL-O-RING | |
| 9. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 10. | 3J-7354H | [1] | SEAL-O-RING | |
| 11. | 5E-9816HN | [2] | SEAL-O-RING | |
| 12. | 8J-2413HN | [2] | SEAL-O-RING | |
| 13. | 229-8393N | [2] | KIT-VALVE(PROPEL PUMP) | |
| 14. | 1S-8947N | [2] | SEAL-O-RING | |
| 15. | 266-3051 | [2] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 095-1750 | [1] | SEAL-O-RING | |
| 16. | 319-5222T | [1] | SCREW(M8X35-MM) | |
| 18. | 5E-8774T | [1] | PIN | |
| 19. | 5E-8791T | [1] | WASHER(3.53X6.86X1.52-MM THK) | |
| 20. | 7R-3825 | [1] | KIT-RELIEF VALVE(PISTON PUMP) | |
| | | | (ALSO INCLUDES PLUG AS, SPRING, POPPET CHARGE & NUT) |
| 21. | 426-4845Y | [1] | VALVE GP-PUMP CONTROL(PROPEL) | |
| 23. | 319-5221Y | [1] | ROTATING GP-PUMP | |
| 24. | 148-6892 | [1] | SEAL | |
| 25. | 7R-3394 | [1] | FITTING | |
| 26. | 7M-8485H | [1] | SEAL-O-RING | |
| 27. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 28. | 109-5165 | [1] | SHAFT-CHARGE | |
| 29. | 1G-9196 | [1] | PIN | |
| 30. | 108-8537 | [1] | PUMP GP-GEROTOR(CHARGE) | |
| 31. | 5E-8743 | [2] | BUSHING-TERMINAL | |
| 32. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 33. | 5E-8771H | [1] | SEAL-O-RING | |
| 34. | 7X-2557M | [4] | BOLT(M16X2X140-MM) | |
| 35. | 109-5166 | [1] | COVER-CHARGE | |
| 36. | 6V-5215M | [6] | BOLT(M8X1.25X16-MM) | |
| 37. | 364-0736 | [2] | CYLINDER AS | |
| 38. | 6V-8676 | [2] | SEAL-O-RING | |
| 39. | 1G-9192H | [2] | SEAL-O-RING | |
| 40. | 8T-0269M | [4] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 41. | 229-8396 | [1] | PLATE-RETAINER | |
| 42. | 319-5224S | [1] | KIT-SEAL(SHAFT) | |
| | | | (ALSO INCLUDES CARRIER SEAL) |
| 43. | 319-5223HS | [1] | SEAL-LIP TYPE | |
| 44. | 1G-9188HS | [1] | SEAL-O-RING | |
| 45. | 6V-7700 | [1] | RING-RETAINING | |
| 46. | 1G-9185 | [1] | BEARING-ROLLER | |
| 47. | 126-6643 | [1] | SHAFT-PUMP | |
| 48. | 4L-7711H | [2] | SEAL-O-RING | |
| 49. | 1G-9182H | [1] | SEAL-O-RING | |
| 50. | 132-6697HM | [6] | BOLT(M8X1.25X20-MM) | |
| 51. | 5E-8765H | [2] | NUT | |
| 52. | 319-5225 | [1] | COVER | |
| 53. | 319-5226T | [1] | KIT-SWASHPLATE | |
| | | | (ALSO INCLUDES SERVO ARM & SWASHPLATE) |
| 54. | 1G-9177T | [1] | LINK | |
| 55. | 199-7051T | [1] | PIN | |
| 56. | 319-5219 | [1] | KIT-BEARING | |
| 57. | 077-8353 | [2] | PIN(SPRING) | |
| 58. | 203-8509T | [1] | LINK-FEEDBACK | |
| 59. | 366-0724 | [1] | BLOCK-SLIDER | |
| 60. | 8T-0338TM | [3] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 61. | 5E-8747 | [2] | VALVE-CHECK(PISTON PUMP) | |
| 62. | 1G-9193 | [1] | BEARING-JOURNAL | |
| 63. | 5E-8777 | [2] | PLUG | |
| 64. | 126-6638H | [1] | GASKET-END CAP | |
| | | | |
| | | | AVAILABLE GASKET KIT(S): |
| | 276-6043 | [2] | KIT-SEAL(SOLENOID VALVE) | |
| | | | (INCLUDES PARTS MARKED 'J' IN GRAPHIC) |
| | 1G-9205H | [1] | KIT-OVERHAUL SEAL | |
| | | | (ALSO INCLUDES PARTS MARKED 'L' IN GRAPHIC) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Y | | SEPARATE ILLUSTRATION |
