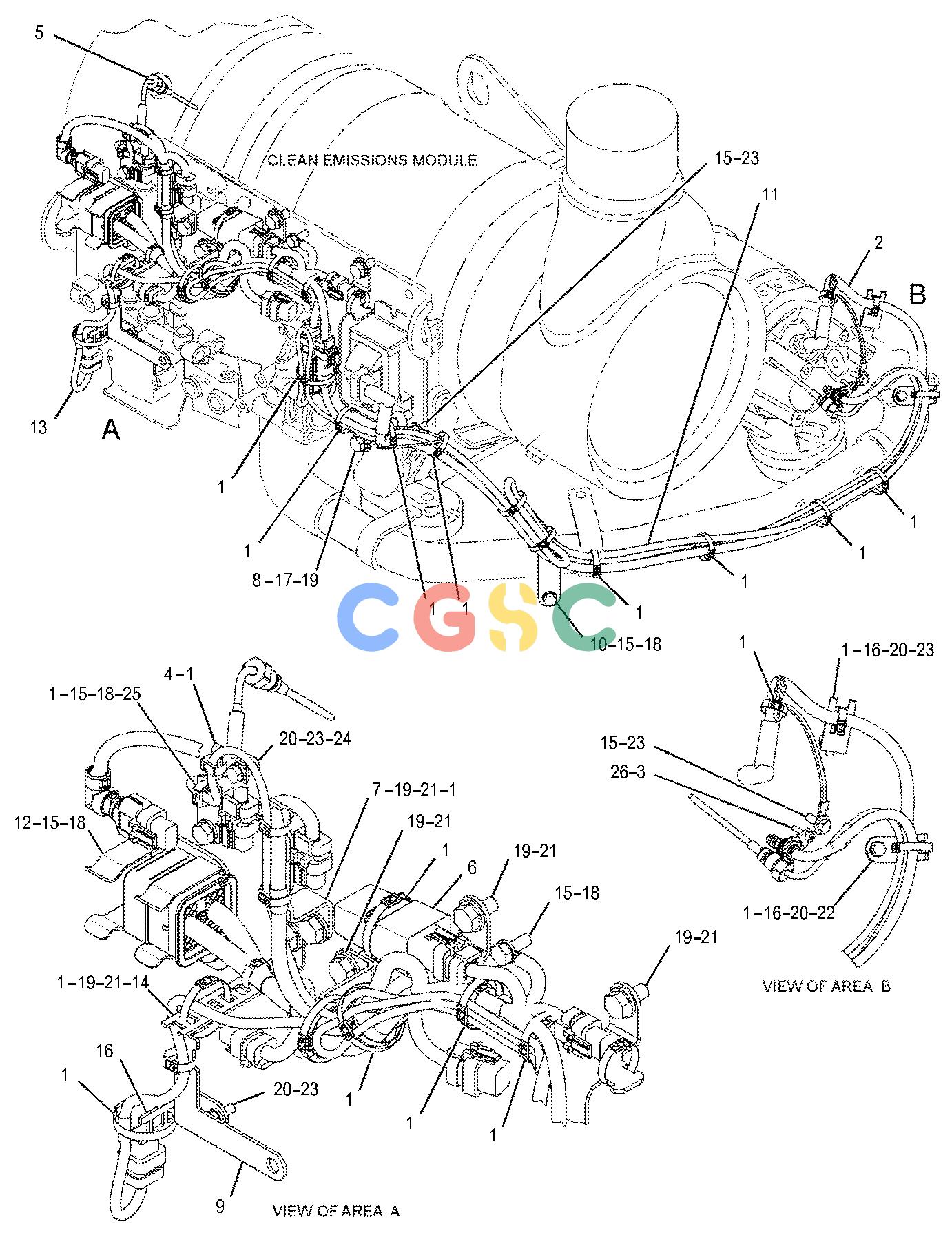

卡特零件查询（BG1055E） 363-0647: WIRING GP-CEM
广数供应链运营团队, 16 02月, 2025，浏览：
218 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 290-1993 | [27] | STRAP-CABLE | |
| 2. | 295-6244 | [1] | WIRE AS-IGNITION | |
| 3. | 315-0225 | [1] | CLAMP-WIRE | |
| 4. | 318-9355 | [1] | MOUNTING-CABLE TIE | |
| 5. | 341-4176 | [1] | SENSOR GP-TEMPERATURE(DUAL SENSOR- DPF, FLAME DETECT) | |
| 6. | 342-9070 | [1] | RECEPTACLE AS(AFTERTREATMENT IDENTIFICATION) | |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.2-M) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 281-8812 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| 7. | 347-3880 | [1] | BRACKET | |
| 8. | 347-9210 | [1] | SPACER(11X26X60-MM THK) | |
| 9. | 348-2666 | [1] | BRACKET | |
| 10. | 349-9457 | [1] | BRACKET | |
| 11. | 352-4756 | [1] | HARNESS AS-CEM(NOZZLE HEATER) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9X-3401 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 296-3295 | [1] | RECEPTACLE AS-CONNECTOR | |
| | 317-7377 | [1] | CONNECTOR AS | |
| | 9N-1756 | [1] | SEAL-O-RING | |
| | 317-0808 | [2] | SEAL-O-RING | |
| | 348-1879E | | SLEEVE(132-CM) | |
| | 369-9841 | [1] | STRAP-CABLE | |
| 12. | 364-8334 | [1] | PLATE AS | |
| 13. | 366-6037Y | [1] | WIRING GP-ENGINE | |
| 14. | 294-3313 | [1] | CLIP | |
| 15. | 311-8366 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 341-3624 | [3] | CLIP | |
| 17. | 344-1190 | [1] | BOLT(M10X1.5X80-MM) | |
| 18. | 344-1192M | [5] | BOLT(M8X1.25X20-MM) | |
| 19. | 344-1199 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 344-1200 | [5] | WASHER-HARD(6.6X12X2-MM THK) | |
| 21. | 344-1201 | [5] | BOLT(M10X1.5X20-MM) | |
| 22. | 344-1205 | [1] | BOLT(M6X1X12-MM) | |
| 23. | 344-1206M | [5] | BOLT(M6X1X16-MM) | |
| 24. | 344-5673M | [1] | NUT(M6X1-THD) | |
| 25. | 4P-5918 | [1] | CLIP | |
| 26. | 8T-9405M | [1] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
