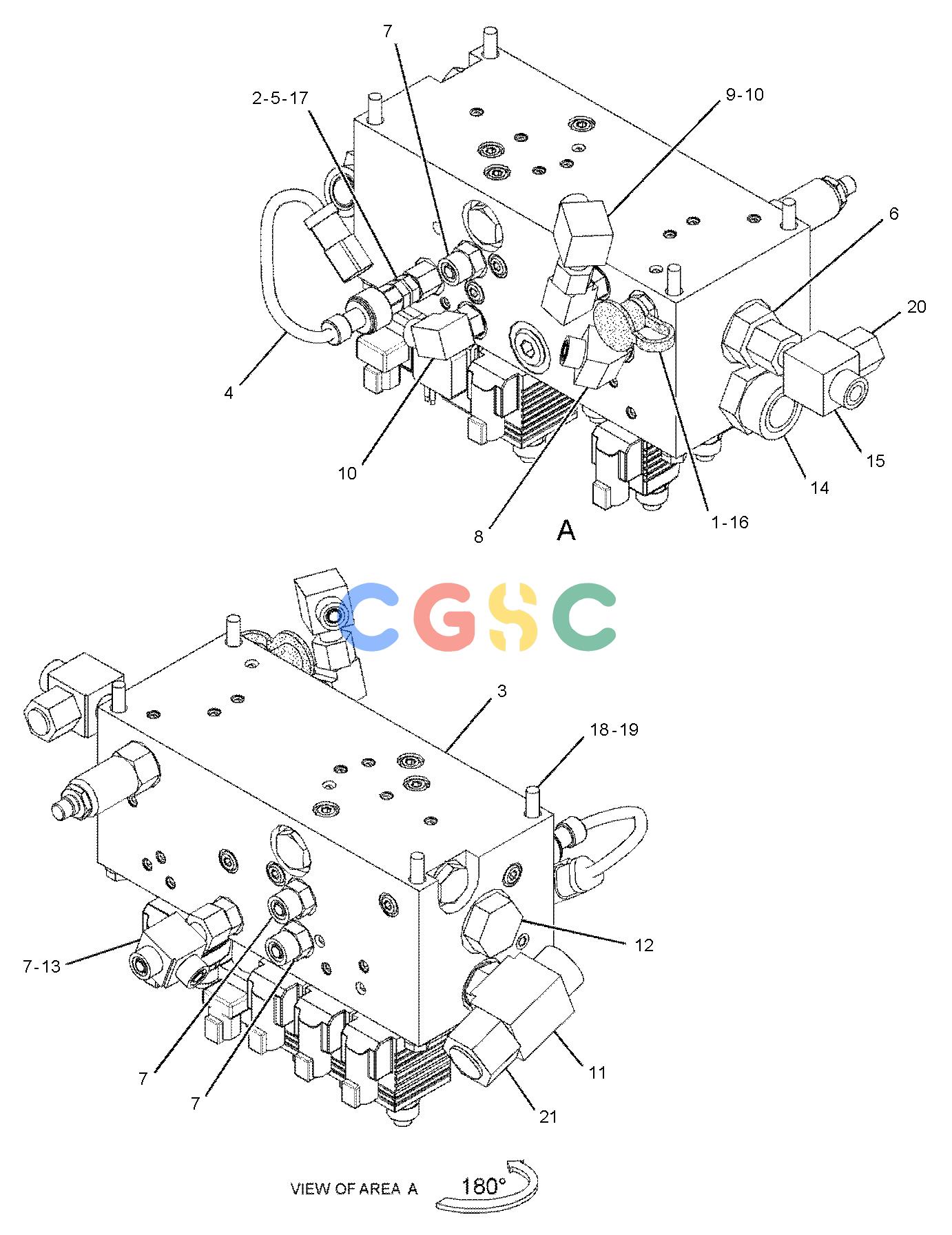

卡特零件查询（BG1055E） 336-7920: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
452 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 108-5678 | [1] | UNION | |
| 3. | 269-0535Y | [1] | VALVE GP-CONTROL(AUXILIARY) | |
| 4. | 290-5825 | [1] | SENSOR GP-PRESSURE(HYDRAULIC OIL) | |
| | 9X-1813E | | SLEEVE(34-CM) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 5. | 148-8305 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-9617 | [1] | ADAPTER | |
| 6. | 148-8328 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8633 | [1] | CONNECTOR | |
| 7. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 8. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 9. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 10. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 11. | 153-6260 | [1] | TEE AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 8T-8984 | [1] | TEE-O-RING PORT | |
| 12. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 13. | 148-8433 | [1] | TEE AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 14. | 153-6230 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-9386 | [1] | CONNECTOR | |
| 15. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 16. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 17. | 3J-7354 | [2] | SEAL-O-RING | |
| 18. | 7X-0457M | [4] | BOLT(M8X1.25X130-MM) | |
| 19. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 6V-9830 | [1] | CAP(ORFS) | |
| 21. | 6V-9832 | [1] | CAP | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
