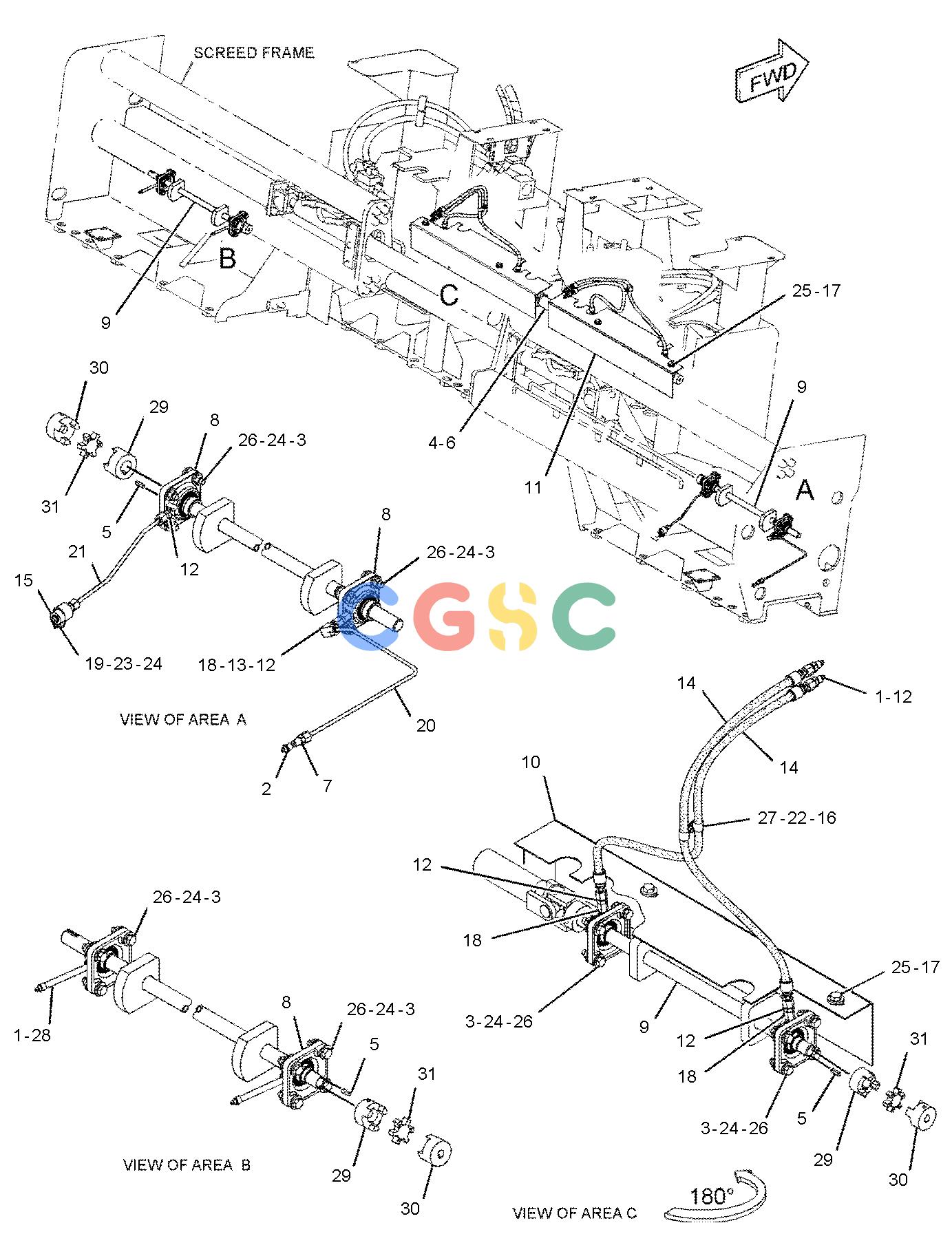

卡特零件查询（BG1055E） 276-4572: VIBRATORY GP
广数供应链运营团队, 16 02月, 2025，浏览：
121 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9982 | [6] | FITTING-GREASE(HYDRAULIC) | |
| 2. | 098-2599 | [2] | FITTING-GREASE(HYDRAULIC) | |
| 3. | 7X-7729 | [64] | WASHER(11X25X3-MM THK) | |
| 4. | 102-2735 | [2] | KEY-SQUARE | |
| 5. | 105-1533 | [4] | KEY-SQUARE | |
| 6. | 112-1276Y | [1] | SHAFT GP-DRIVE(ECCENTRIC WEIGHT) | |
| 7. | 148-8337 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6866 | [1] | CONNECTOR | |
| 8. | 258-7574 | [8] | BEARING AS | |
| 9. | 279-9790 | [4] | SHAFT AS | |
| 10. | 279-9916 | [1] | COVER(LH) | |
| 11. | 279-9917 | [1] | COVER(RH) | |
| 12. | 148-8320 | [10] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 13. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 14. | 264-1502I | [4] | HOSE AS | |
| 15. | 4D-0659 | [1] | BOSS | |
| 16. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 17. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 6K-6967 | [5] | ADAPTER-PIPE | |
| 19. | 7C-4354 | [1] | CLIP | |
| 20. | 8I-0968 | [1] | TUBE AS | |
| 21. | 8I-0969 | [1] | TUBE AS | |
| 22. | 8J-1256 | [4] | CLIP | |
| 23. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4133M | [33] | NUT(M10X1.5-THD) | |
| 25. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 26. | 8T-4186M | [32] | BOLT(M10X1.5X40-MM) | |
| 27. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 28. | 9S-1812 | [2] | FITTING(NIPPLE-PIPE) | |
| 29. | 310-6052 | [4] | COUPLER | |
| 30. | 310-6046 | [4] | COUPLER | |
| 31. | 310-6051 | [4] | SPIDER | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
