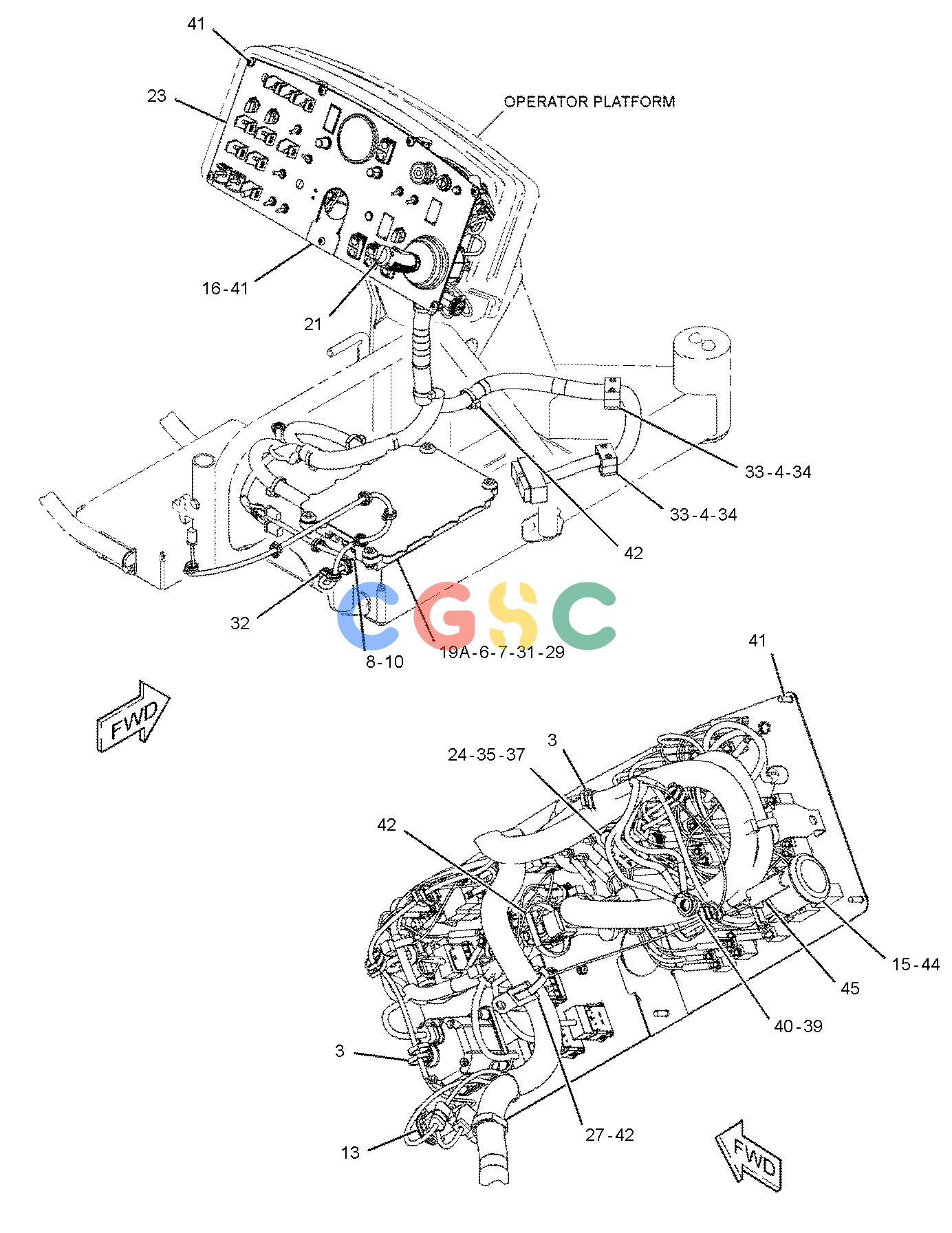

卡特零件查询（BG1055E） 340-4343: CONSOLE GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
620 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-9090 | [1] | S-HOOK | |
| 2. | 3E-5239 | [1] | RELAY AS(24-VOLT)(HORN) | |
| 3. | 3S-2093 | [20] | STRAP-CABLE | |
| 4. | 7V-5628 | [4] | PLATE(TOP) | |
| 5. | 8C-6354 | [1] | CAP-RECEPTACLE(ET CONNECTOR) | |
| 6. | 8T-9655 | [16] | MOUNT-ISOLATION | |
| 7. | 8T-9658 | [8] | SPACER(8.2X12.7X25.4-MM THK) | |
| 8. | 9X-6772 | [8] | STRAP-CABLE | |
| 9. | 110-7887 | [1] | SWITCH AS-START(KEY) | |
| | 7T-6799 | [1] | NUT-MOUNTING(1-32-THD) | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 10. | 126-1774 | [4] | COVER-CONNECTOR | |
| 11. | 128-8617 | [1] | PLATE AS | |
| 12. | 129-7184 | [1] | FILM-INSTRUCTION(ENGINE START) | |
| 13. | 178-7539 | [1] | RECEPTACLE AS(POWER SUPPLY) | |
| 14. | 248-5563 | [1] | GASKET | |
| 15. | 250-2297 | [1] | METER GP-SERVICE(WHITE BACKLIGHT) | |
| 16. | 262-0719 | [2] | PLATE | |
| 17. | 282-3067 | [4] | PLATE | |
| 18. | 284-8905Y | [1] | CONTROL GP-UNPRGMED MONITOR(ADVISOR) | |
| 19. | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED(OPERATOR CONSOLE, LH) | |
| 19A. | 304-5687 | [1] | CONTROL GP-UNPROGRAMMED(OPERATOR CONSOLE, RH) | |
| 20. | 317-5415 | [1] | PLATE | |
| 21. | 329-1341 | [2] | CONTROL GP-PROPEL | |
| 22. | 370-8998Y | [1] | PANEL GP-CONTROL(LH) | |
| 23. | 371-0340Y | [1] | PANEL GP-CONTROL(RH) | |
| 24. | 130-5300 | [3] | CLIP | |
| 25. | 141-4976 | [4] | SCREW-WASHER HEAD(4-40X0.5-IN) | |
| 27. | 4P-7581 | [2] | CLIP(LADDER) | |
| 28. | 5C-2890M | [3] | NUT(M6X1-THD) | |
| 29. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 30. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 31. | 352-0244 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 7G-7053 | [4] | GROMMET | |
| 33. | 7V-6089 | [8] | CLAMP | |
| 34. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| 35. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 36. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 37. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 38. | 8T-4205 | [10] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 39. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 41. | 9X-2045M | [15] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 42. | 7K-1181 | [20] | STRAP-CABLE | |
| 43. | 1G-9089H | | CHAIN(1-DM) | |
| 44. | 6V-3507 | [1] | SEAL-RECTANGULAR | |
| 45. | 357-6583 | [1] | KIT-BRACKET | |
| | | | (INCLUDES STUDS, NUTS, LOCK WASHERS & BRACKETS) |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
