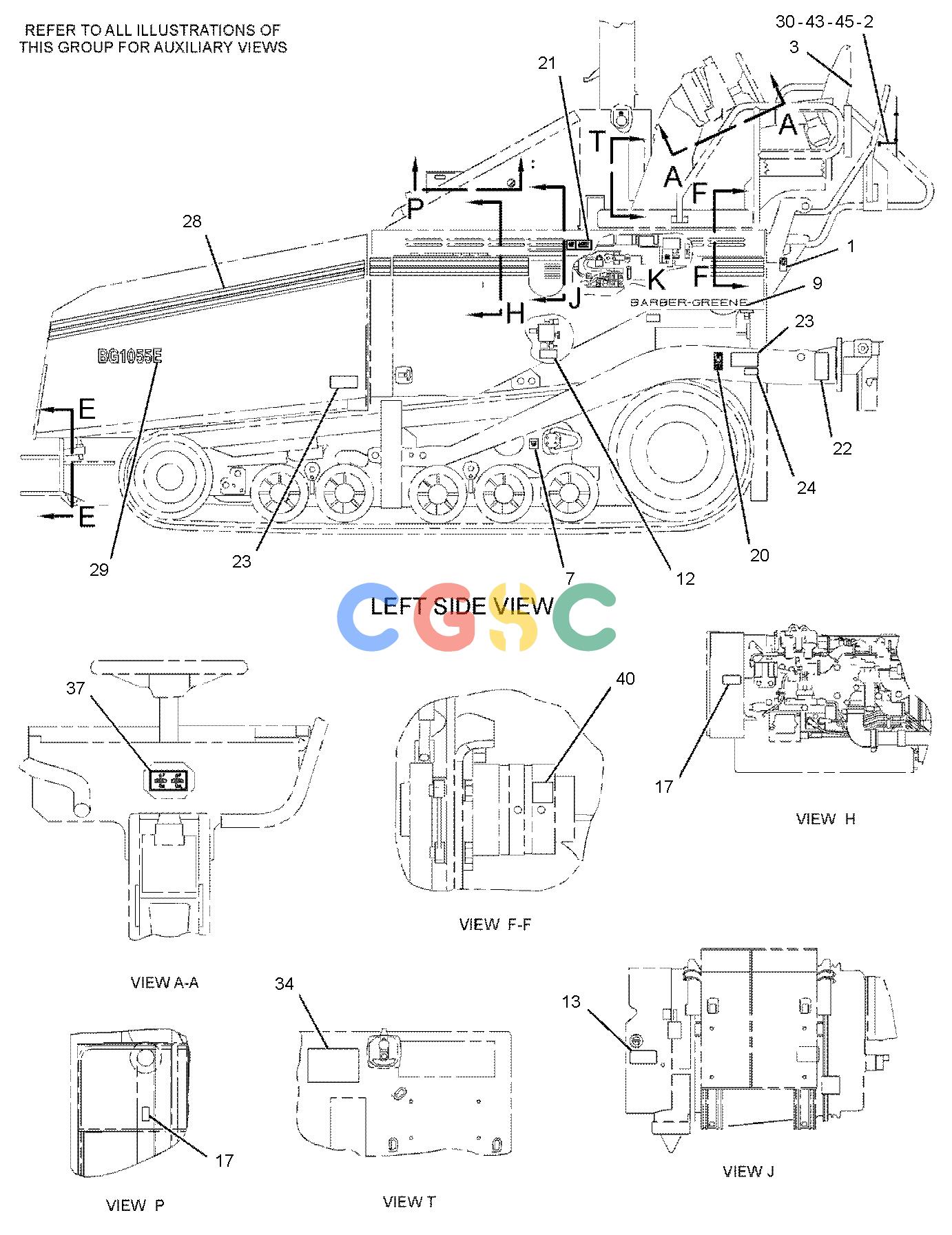

| 1. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 2. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 3. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 4. | 5P-8500 | [2] | KEY | |
| 5. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 6. | 7X-3229 | [2] | FILM-IDENTIFICATION(LIFT EYE, TIE-DOWN LOCATION) | |
| 7. | 7X-7644 | [4] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 8. | 8T-6986 | [1] | PLATE AS-WARNING(SLOW MOVING VEHICLE) | |
| 9. | 116-6175 | [3] | FILM-IDENTIFICATION(BARBER-GREENE) | |
| 10. | 123-4082 | [1] | FILM-INFORMATION(HEIGHT SCALE) | |
| 11. | 146-6747 | [2] | FILM-INFORMATION(24-VOLT) | |
| 12. | 224-7830 | [2] | FILM-WARNING(HIGH PRESSURE, READ OMM, U.S.) | |
| 13. | 224-8945 | [1] | FILM-WARNING(DO NOT USE ETHER, U.S.) | |
| 14. | 224-9828 | [1] | FILM-WARNING(SHOCK HAZARD) | |
| 15. | 225-0313 | [1] | FILM-WARNING(JUMP START, READ OMM, U.S.) | |
| 16. | 225-3305 | [1] | FILM-WARNING(UNIVERSAL, READ OMM) | |
| 17. | 228-7315 | [10] | FILM-WARNING(HOT SURFACE, HANDS CLEAR) | |
| 18. | 230-1340B | [1] | FILM-WARNING(PRODUCT LINK RADIO, U.S.) | |
| 19. | 239-6986 | [1] | PLATE-SERIAL NUMBER(MACHINE) | |
| 20. | 242-5055 | [2] | FILM-WARNING(NO STEP) | |
| 21. | 253-0861 | [2] | FILM-INFORMATION(CAT POWER, ACERT TECHNOLOGY) | |
| 22. | 264-2263 | [2] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 23. | 264-7868 | [4] | FILM-WARNING(CRUSH HAZARD, READ OMM) | |
| 24. | 269-0193 | [2] | FILM-WARNING(CRUSH HAZARD, STAY BACK) | |
| 25. | 279-6497 | [2] | FILM-INSTRUCTION(GREASE, READ OMM) | |
| 26. | 286-1926 | [1] | FILM-WARNING(FASTEN SEAT BELT) | |
| 27. | 307-0047B | [1] | FILM-INFORMATION(PRODUCT LINK, READ OMM) | |
| 28. | | [2] | FILM AS |
| | | | (EACH INCLUDES) |
| | 116-6173E | | FILM-STRIPE(450-CM) | |
| 29. | 333-2698 | [2] | FILM-IDENTIFICATION(BG1055E) | |
| 30. | 335-6190 | [1] | BRACKET | |
| 31. | 340-3553 | [1] | FILM-INSTRUCTION(VACUUM PUMP, READ OMM) | |
| 32. | 340-3569 | [1] | FILM-IDENTIFICATION(PANEL) | |
| 33. | 385-7551 | [1] | FILM-IDENTIFICATION(FUSE PANEL) | |
| 34. | 350-6691 | [1] | FILM-IDENTIFICATION(FUSE PANEL) | |
| 35. | 355-4624 | [1] | FILM-INFORMATION(LOW SULFUR DIESEL FUEL) | |
| 36. | 358-2184 | [1] | FILM-IDENTIFICATION(HYDRAULIC PRESSURE, READ OMM) | |
| 37. | 358-9013 | [1] | FILM-IDENTIFICATION(PROPEL OVERRIDE) | |
| 38. | 360-7593 | [1] | FILM-NOTICE(HYDRAULIC OIL PRESSURE) | |
| 39. | 362-4106 | [1] | FILM-INSTRUCTION(KEEP DOOR CLOSED) | |
| 40. | 349-0996 | [4] | FILM-IDENTIFICATION(OIL, READ OMM) | |
| 41. | 349-8603 | [1] | FILM-INSTRUCTION(FUEL, READ OMM) | |
| 42. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 43. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 44. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 45. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 46. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | | | |
| | 219-3009F | [1] | HOSE AS(TRACK TENSION CYLINDER PURGE) | |
| | 148-1886 | [1] | COUPLING(FEMALE) | |
| | 148-8337 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6866 | [1] | CONNECTOR | |
| | 219-3008I | [1] | HOSE AS | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
