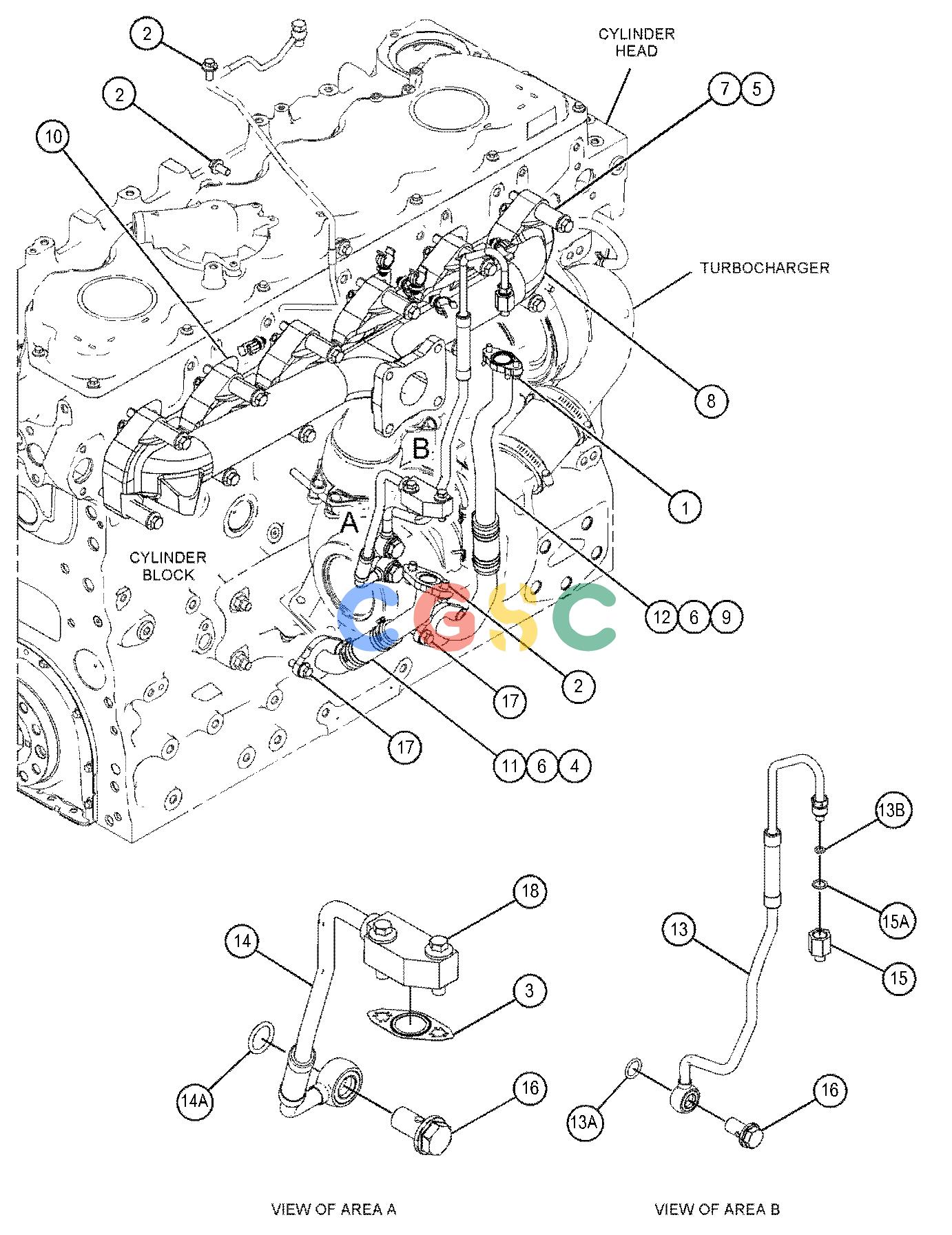

卡特零件查询（BG1055E） 355-1033: MANIFOLD GP-EXHAUST
广数供应链运营团队, 16 02月, 2025，浏览：
242 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 106-8916M | [2] | BOLT(M6X16-MM) | |
| 2. | 124-3815M | [4] | BOLT(M8X1.25X16-MM) | |
| 3. | 197-8418 | [1] | GASKET | |
| 4. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 5. | 238-8292 | [12] | BOLT-FLANGE HEAD | |
| 6. | 278-0017 | [2] | GASKET | |
| 7. | 286-7851 | [12] | SPACER | |
| 8. | 349-9387 | [1] | MANIFOLD | |
| 9. | 357-0617 | [1] | GASKET | |
| 10. | 371-7601 | [2] | GASKET | |
| 11. | 432-2374 | [1] | LINE AS | |
| 12. | 432-2376 | [1] | LINE AS | |
| 13. | 450-8002 | [1] | LINE AS | |
| 13A. | 3P-0647 | [2] | SEAL-O-RING | |
| 13B. | 9N-1756 | [1] | SEAL-O-RING | |
| 14. | 450-8003 | [1] | LINES GP-TURBOCHARGER OIL | |
| 14A. | 3P-0647 | [2] | SEAL-O-RING | |
| 15. | 450-8004 | [1] | ADAPTER AS | |
| 15A. | 033-5879 | [1] | SEAL-O-RING | |
| 16. | 451-0548 | [2] | BOLT | |
| 17. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 18. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
