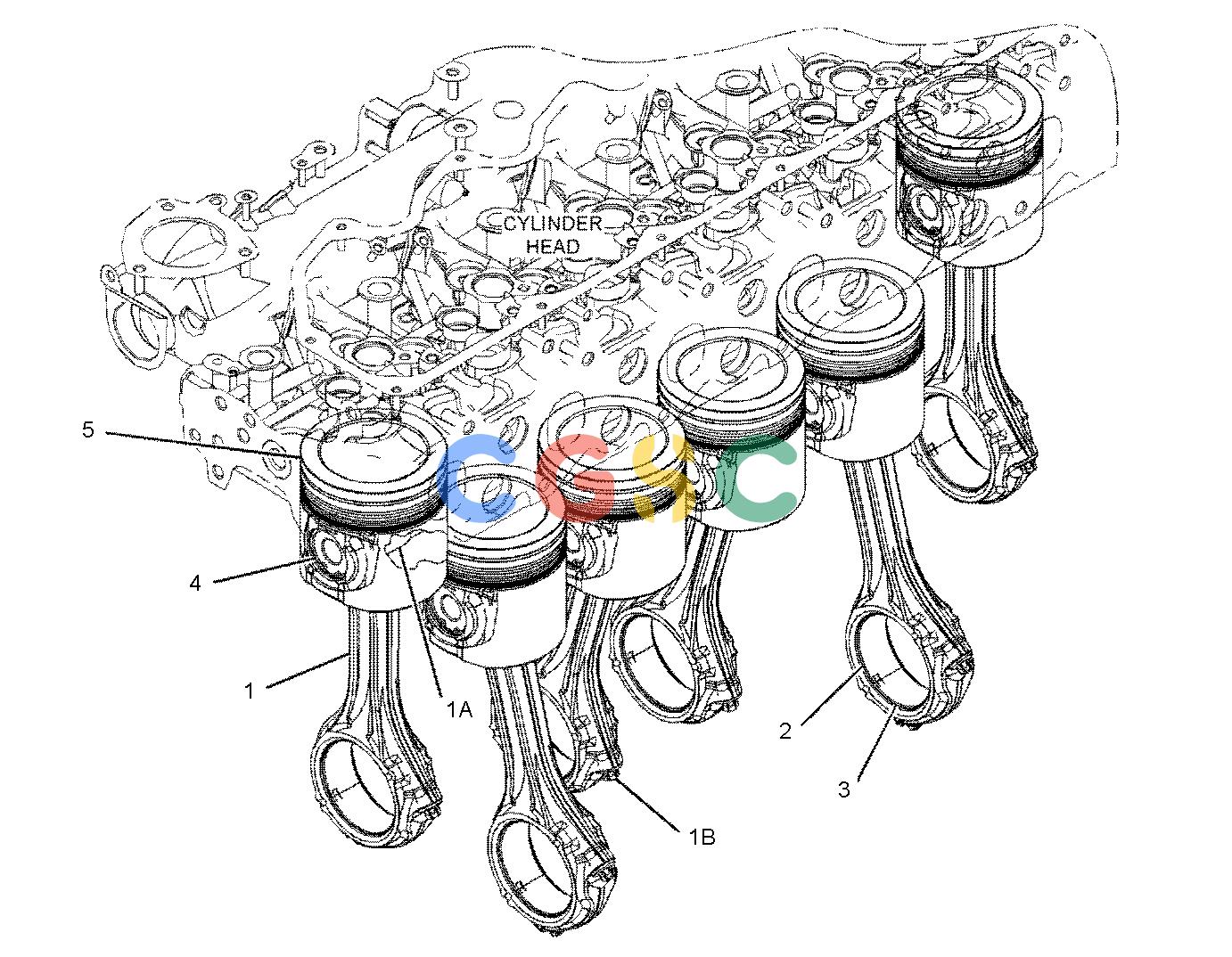

卡特零件查询（BG1055E） 351-1701: PISTON & ROD GP
广数供应链运营团队, 16 02月, 2025，浏览：
956 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 331-0292B | [6] | CONNECTING ROD GP(LENGTH L) | |
| | | | (EACH INCLUDES) |
| 1A. | 276-7478 | [1] | BUSHING | |
| 1B. | 323-9312M | [2] | BOLT(M10X1X50-MM) | |
| 2. | 317-5482J | [6] | BEARING | |
| 3. | 317-5483J | [6] | BEARING | |
| 4. | 124-3536P | [12] | RING-RETAINING | |
| 5. | | [6] | PISTON |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-2028B | [1] | KIT-RING(PISTON) | |
| | | | (INCLUDES PISTON RINGS) |
| | 449-2818B | [1] | KIT-PISTON RING(0.5-MM OS) | |
| | | | (INCLUDES PISTON RINGS) |
| | 449-2819B | [1] | KIT-PISTON RING(1-MM OS) | |
| | | | (INCLUDES PISTON RINGS) |
| | 361-2460BP | [1] | KIT-PISTON | |
| | | | (INCLUDES PISTON, RINGS, & PIN) |
| | 361-5413B | | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES PISTON, RINGS, & PIN) |
| | 361-5414B | [1] | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES PISTON, RINGS, & PIN) |
| | 360-1564BJ | [1] | KIT-BEARING(CONNECTING ROD)(PISTON) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7918B | [1] | KIT-BEARING(0.25-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7939B | [1] | KIT-BEARING(0.50-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 458-7940B | | KIT-BEARING(0.75-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | B | | USE AS REQUIRED |
| | J | | (KIT MARKED J SERVICES KIT MARKED J) |
| | M | | METRIC PART |
| | P | | (KIT MARKED P SERVICES PART MARKED P) |
