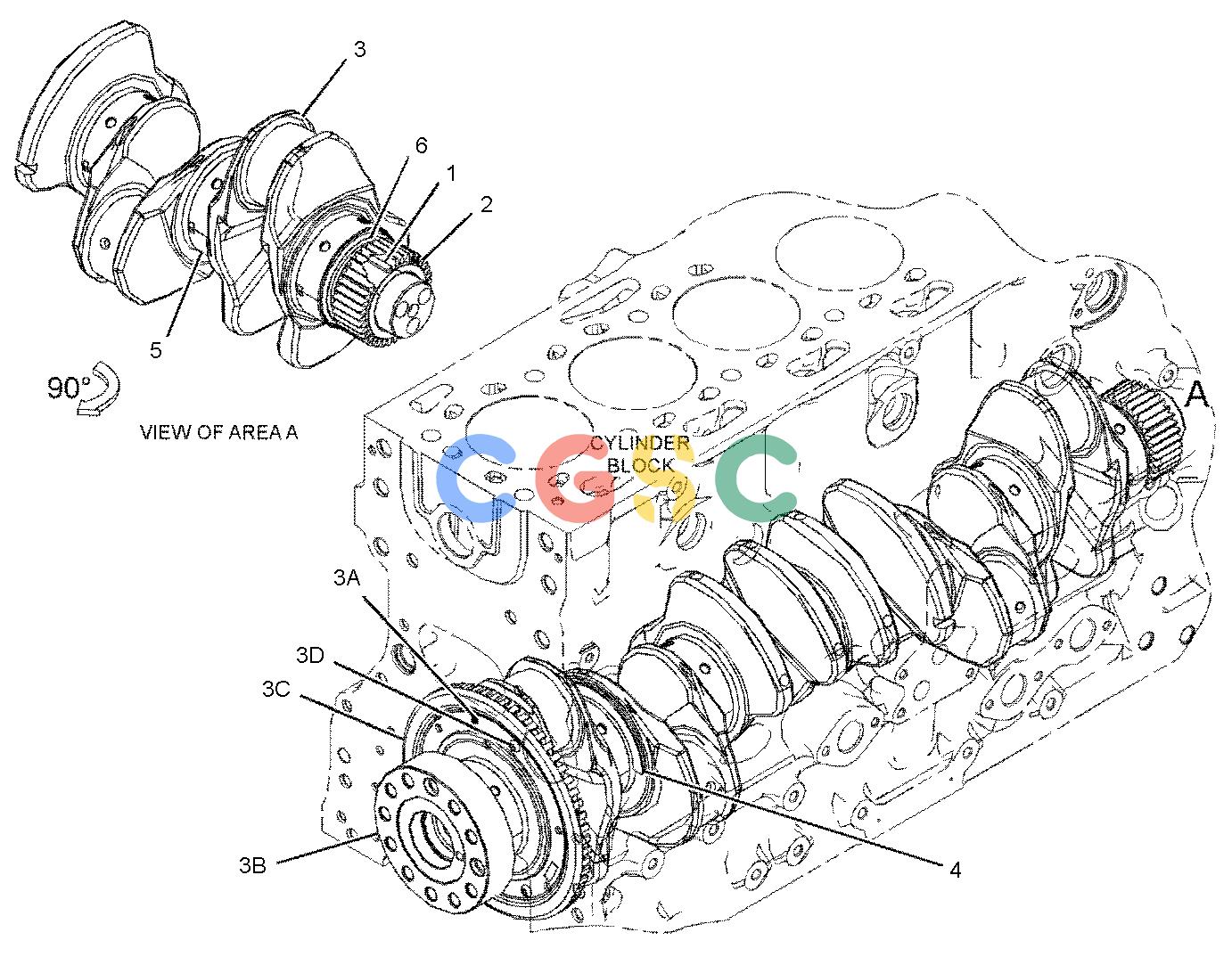

卡特零件查询（BG1055E） 346-4744: CRANKSHAFT GP
广数供应链运营团队, 16 02月, 2025，浏览：
120 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-8736 | [1] | KEY-WOODRUFF | |
| 2. | 338-1402 | [1] | GEAR-CRANKSHAFT(36-TEETH) | |
| 3. | 355-8530 | [1] | CRANKSHAFT GP | |
| 3A. | 339-8780 | [1] | DOWEL | |
| 3B. | 376-4074 | [1] | CRANKSHAFT | |
| 3C. | 376-4078 | [1] | DISC-TIMING | |
| 3D. | 276-7394M | [3] | SCREW(M6X1XX12-MM) | |
| 4. | 363-0559J | [2] | WASHER-THRUST | |
| 5. | 276-7388P | [1] | KIT-BEARING(MAIN) | |
| 6. | 342-6508 | [1] | SHIM(0.1-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-1978P | [1] | KIT-BEARING(STANDARD)(CRANKSHAFT) | |
| | | | (INCLUDES BEARINGS) |
| | 364-5145J | [1] | KIT-WASHER(STANDARD)(CRANKSHAFT) | |
| | | | (INCLUDES WASHERS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES KIT MARKED P |
