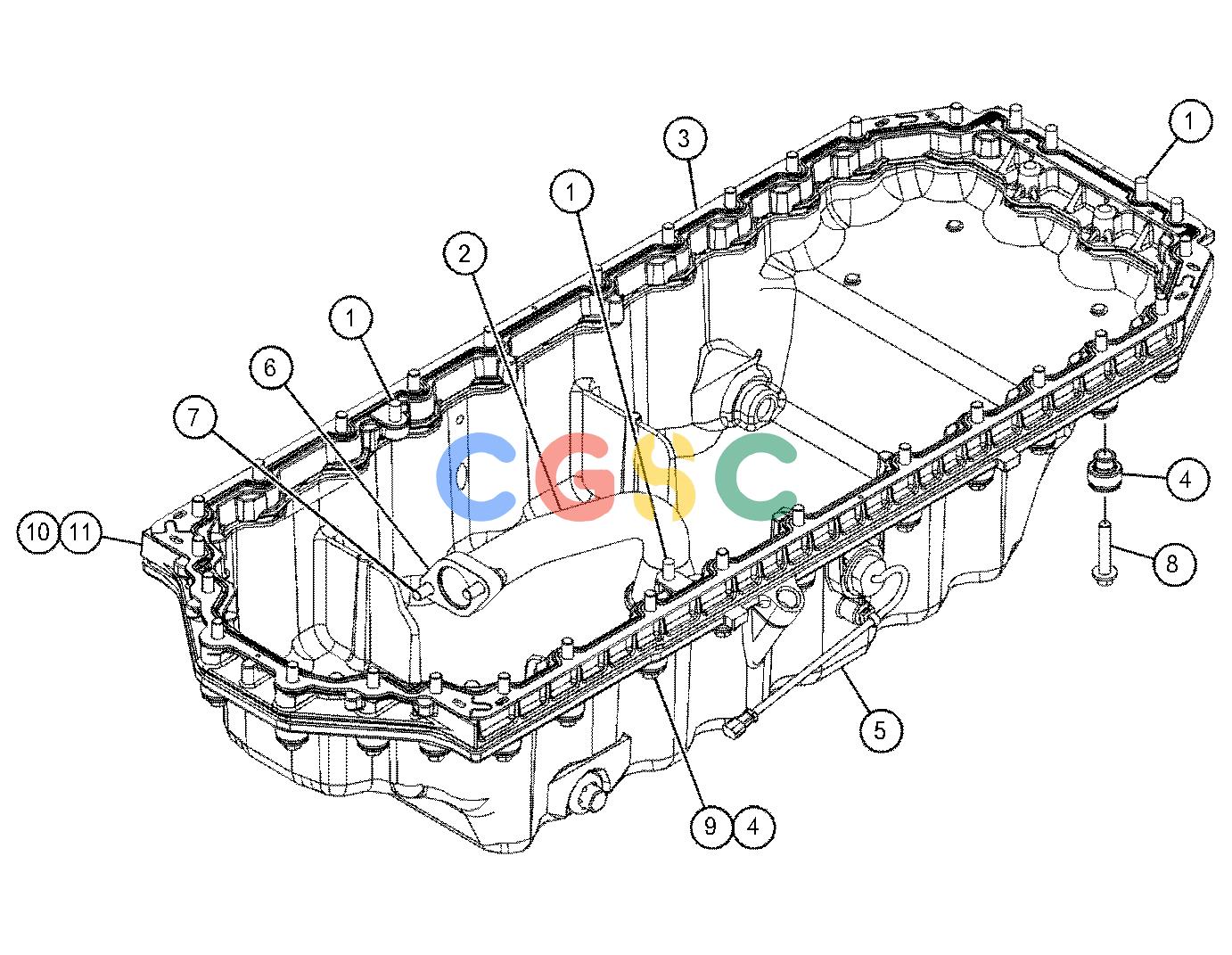

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 276-0142 | [6] | BOLT-SPECIAL(TORX) | |
| 2. | 283-4302 | [1] | TUBE-OIL SUCTION | |
| 3. | 331-4400 | [1] | GASKET(OIL PAN) | |
| 4. | 351-4685 | [30] | LIMITER | |
| 5. | 351-8203Y | [1] | PAN GP-OIL | |
| 6. | 6I-4681 | [1] | GASKET | |
| 7. | 6I-0260M | [2] | BOLT(M8X1.25X25-MM) | |
| 8. | 6I-1090M | [2] | BOLT(M8X1.25X40-MM) | |
| 9. | 6I-4374M | [28] | BOLT(M8X1.25X60-MM) | |
| 10. | 275-9884 | [1] | GASKET | |
| 11. | 351-2090 | [1] | FRAME | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
