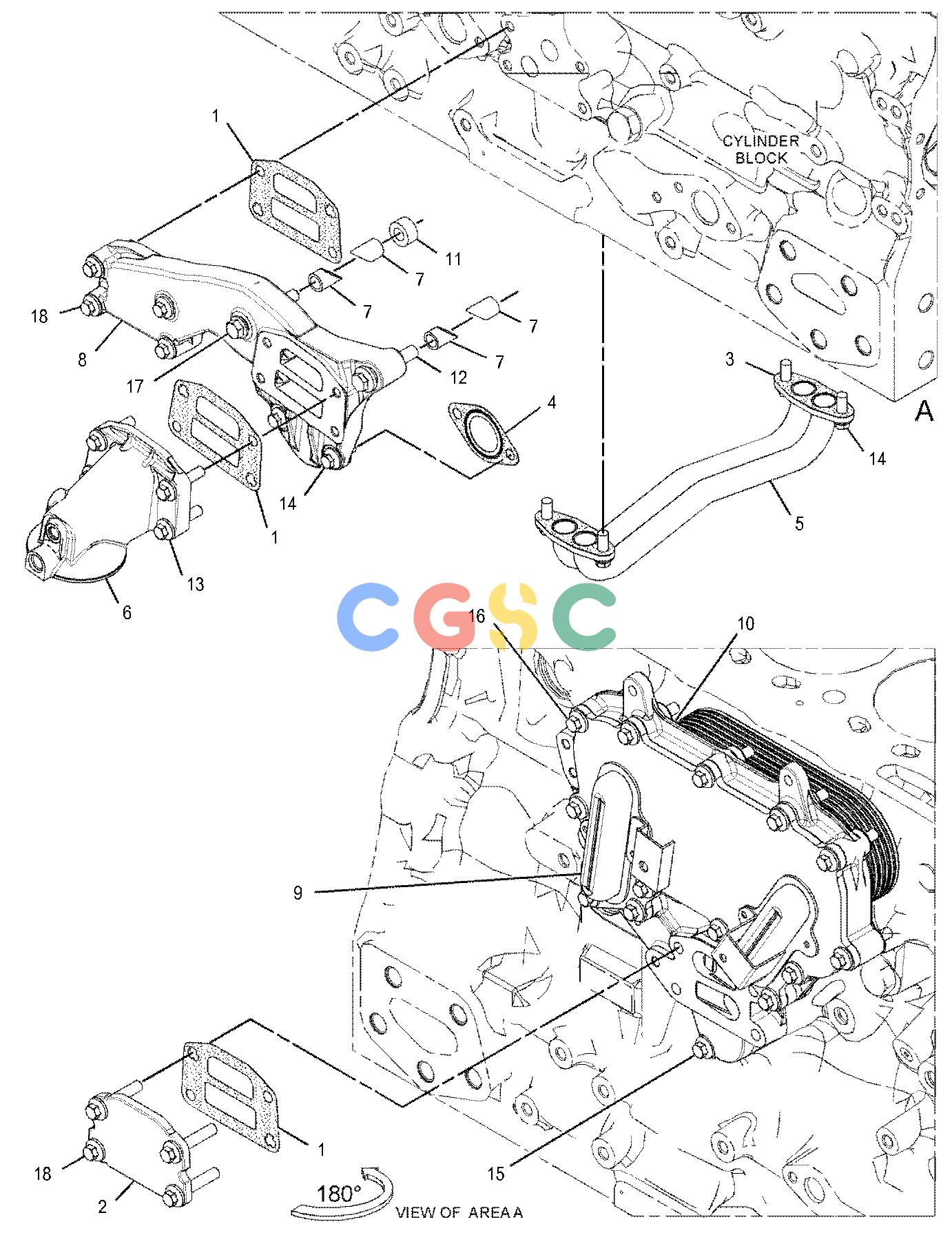

卡特零件查询（BG1055E） 321-8230: COOLER GP-ENGINE OIL
广数供应链运营团队, 16 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 225-7944 | [3] | GASKET | |
| 2. | 232-3751 | [1] | PLATE | |
| 3. | 277-2538 | [2] | GASKET | |
| 4. | 278-0017 | [1] | GASKET | |
| 5. | 281-7280 | [1] | TUBE-OIL | |
| 6. | 283-4559 | [1] | HEAD AS-OIL FILTER | |
| 7. | 292-8520 | [4] | SPACER | |
| 8. | 330-9094 | [1] | EXTENSION | |
| 9. | 444-9675 | [1] | COOLER AS-OIL | |
| 10. | 350-1028 | [1] | GASKET | |
| 11. | 091-0081 | [1] | SPACER(10.5X20X10-MM THK) | |
| 12. | 100-4461M | [1] | BOLT(M10X1.5X50-MM) | |
| 13. | 101-3895M | [4] | BOLT(M8X1.25X35-MM) | |
| 14. | 6I-0217M | [6] | BOLT(M8X1.25X20-MM) | |
| 15. | 6I-0260M | [1] | BOLT(M8X1.25X25-MM) | |
| 16. | 6I-0456M | [11] | BOLT(M8X1.25X45-MM) | |
| 17. | 6I-0789M | [1] | BOLT(M10X1.5X60-MM) | |
| 18. | 6I-1090M | [8] | BOLT(M8X1.25X40-MM) | |
| | M | | METRIC PART |
