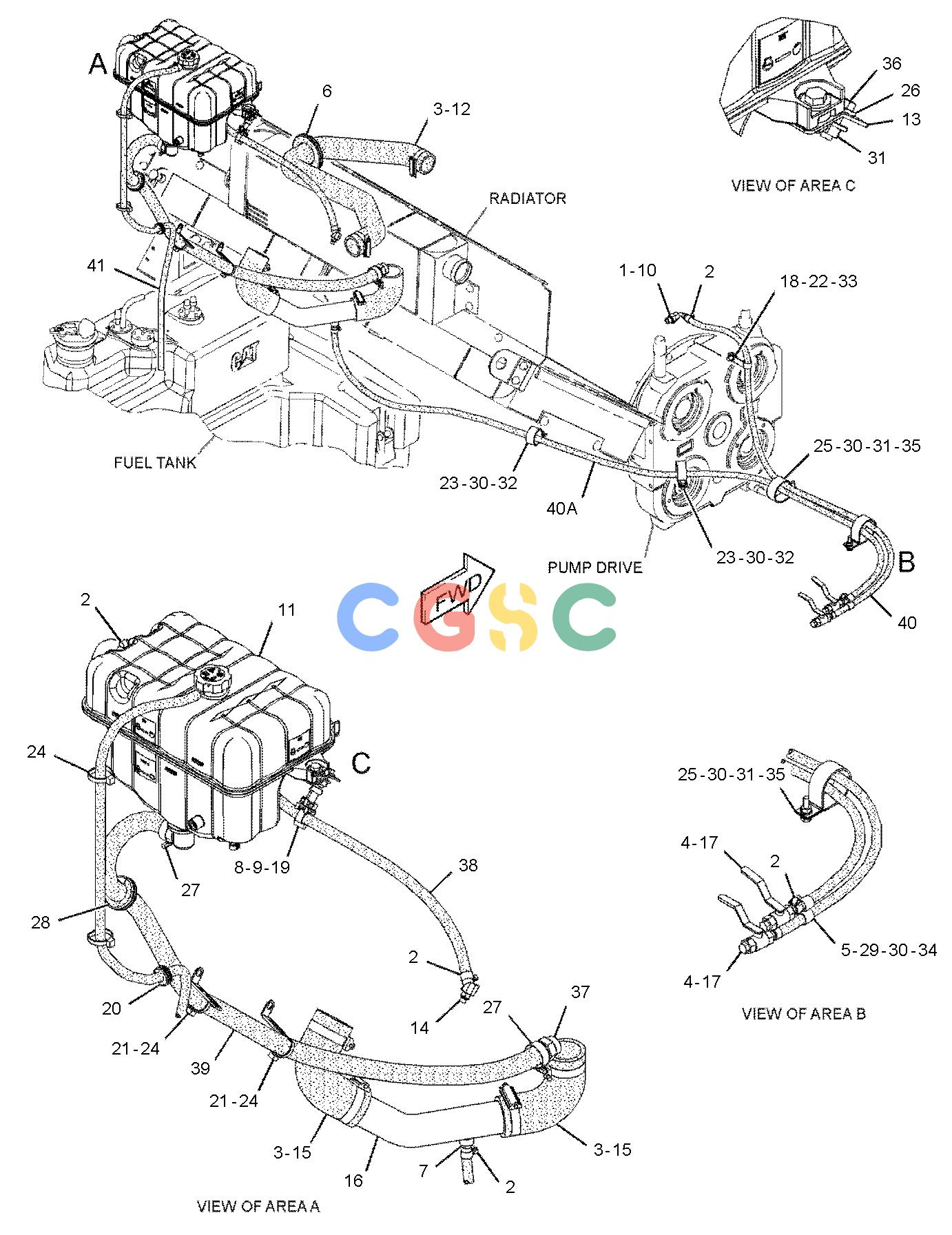

卡特零件查询（BG1055E） 341-1942: LINES GP-WATER
广数供应链运营团队, 16 02月, 2025，浏览：
446 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9313 | [1] | FITTING-HOSE | |
| 2. | 5P-4961 | [6] | CLAMP-HOSE | |
| 3. | 8T-4984 | [6] | CLAMP-HOSE | |
| 4. | 124-6809 | [2] | VALVE-BALL(HYDRAULIC TANK DRAIN) | |
| 5. | 133-6934 | [1] | SPACER(11X20X25-MM THK) | |
| 6. | 138-0167 | [1] | GROMMET | |
| 7. | 164-5562 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-1046 | [1] | CONNECTOR | |
| 8. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 9. | 204-2281 | [2] | STRAP-CABLE | |
| 10. | 268-1555 | [1] | CONNECTOR AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-7524 | [1] | SEAL-O-RING | |
| | 268-1554 | [1] | CONNECTOR | |
| 11. | 370-7829 | [1] | TANK GP-COOLANT(WATER) | |
| | 345-1237 | [1] | CAP AS-COOLANT TANK | |
| 12. | 343-4385 | [1] | HOSE | |
| 13. | 370-7349 | [1] | PLATE AS | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| 14. | 347-4435 | [1] | ELBOW AS | |
| | 347-4434 | [1] | ADAPTER-ELBOW | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| 15. | 354-0839 | [2] | HOSE | |
| 16. | 358-2340 | [1] | TUBE AS | |
| 17. | 148-8407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 18. | 164-4226 | [1] | CLIP | |
| 19. | 1M-4543 | [1] | GROMMET | |
| 20. | 2Y-5429 | [1] | GROMMET | |
| 21. | 4P-7429 | [2] | CLIP(LADDER) | |
| 22. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 23. | 7D-1553 | [2] | CLIP | |
| 24. | 7K-1181 | [4] | STRAP-CABLE | |
| 25. | 7X-0458 | [2] | CLIP | |
| 26. | 7X-7729 | [9] | WASHER(11X25X3-MM THK) | |
| 27. | 7X-7958 | [2] | CLAMP-HOSE | |
| 28. | 8D-1470 | [1] | GROMMET | |
| 29. | 8M-2773 | [2] | CLIP(LOOP) | |
| 30. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 32. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 33. | 8T-4179M | [1] | BOLT(M12X1.75X20-MM) | |
| 34. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 35. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 36. | 8T-4195M | [7] | BOLT(M10X1.5X30-MM) | |
| 37. | 9U-6994 | [1] | ADAPTER AS | |
| | 5P-4362 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 38. | 9X-2133E | | HOSE(116-CM) | |
| 39. | 8I-1362E | | HOSE(146-CM) | |
| 40. | 6V-8523E | | HOSE(167-CM) | |
| 40A. | 6V-8523E | | HOSE(258-CM) | |
| 41. | 8C-3681E | | HOSE(150-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
