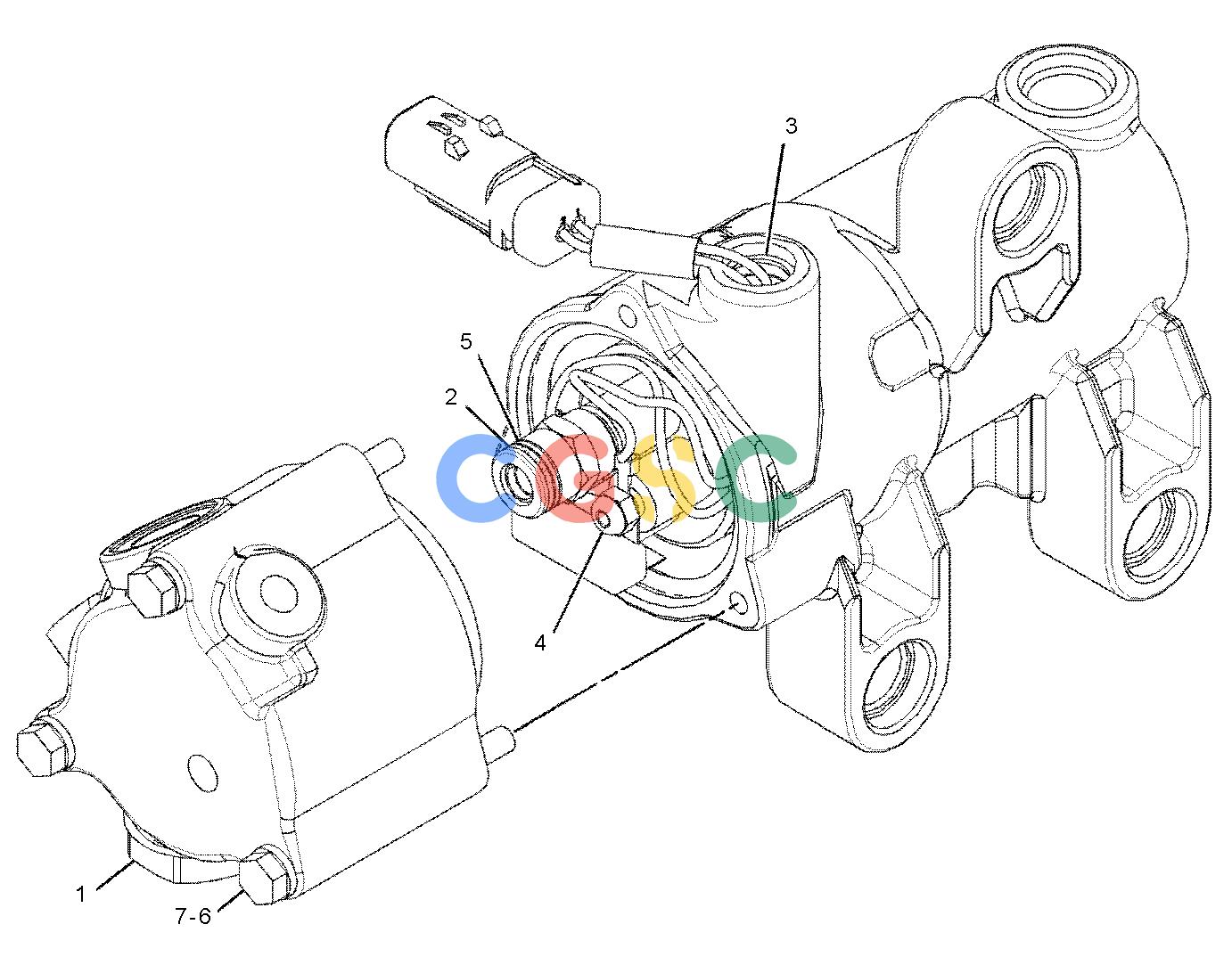

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 445-9452Y | [1] | VALVE GP-CHECK | |
| 2. | 033-6033 | [1] | SEAL-O-RING | |
| 3. | 143-2545 | [1] | RING-RETAINING | |
| 4. | 6D-5801 | [2] | LOCKNUT(8-32-THD) | |
| 5. | 6V-6923 | [1] | RING-BACKUP | |
| 6. | 6V-8359M | [3] | BOLT(M6X1X70-MM) | |
| 7. | 9X-8267 | [3] | WASHER(6.6X12X2-MM THK) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 379-1545 | [1] | KIT-FUEL PUMP | ||
| (INCLUDES RINGS, SEALS, CONNECTOR AS & LOCKNUTS) | ||||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
