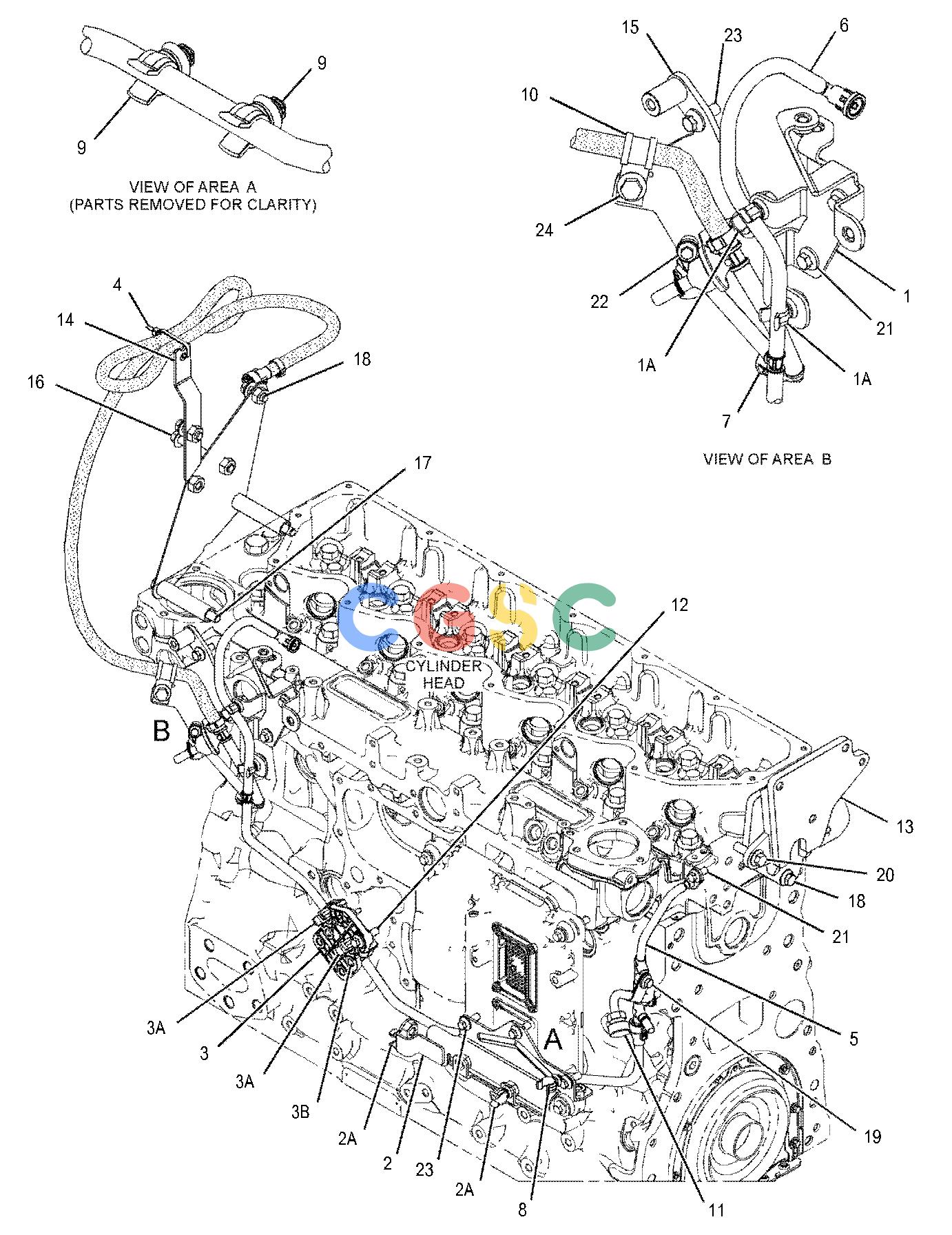

卡特零件查询（BG1055E） 358-4726: SUPPORT GP-LINES
广数供应链运营团队, 16 02月, 2025，浏览：
499 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 357-7473 | [1] | SUPPORT GP-LINES | |
| 1A. | 347-3429 | [2] | CLIP-PIPE | |
| 2. | 358-8893 | [1] | SUPPORT GP-LINES | |
| 2A. | 347-3429 | [2] | CLIP-PIPE | |
| 3. | 359-5208 | [1] | SUPPORT GP-LINES | |
| 3A. | 342-3782 | [2] | CLIP-PIPE | |
| 3B. | 347-3429 | [2] | CLIP-PIPE | |
| 4. | 217-9039 | [1] | STRAP-CABLE | |
| 5. | 376-6892Y | [1] | LINES GP-FUEL | |
| 6. | 359-5219 | [1] | LINE AS-FUEL | |
| 7. | 383-3476 | [1] | LINE AS-FUEL | |
| 8. | 342-3782 | [1] | CLIP-PIPE | |
| 9. | 347-3429 | [2] | CLIP-PIPE | |
| 10. | 344-5360 | [1] | CLIP | |
| 11. | | [1] | CAP-FILTER |
| 12. | 6I-0254M | [1] | BOLT(M8X1.25X30-MM) | |
| 13. | 359-5223 | [1] | BRACKET AS | |
| 14. | 365-3307 | [1] | BRACKET AS | |
| 15. | 365-2981 | [1] | BRACKET AS | |
| 16. | 103-5687M | [1] | BOLT(M10X1.5X85-MM) | |
| 17. | 164-7468M | [2] | BOLT(M10X1.5X95-MM) | |
| 18. | 6I-0654M | [4] | BOLT(M10X1.5X25-MM) | |
| 19. | 100-4458M | [1] | BOLT(M8X1.25X14-MM) | |
| 20. | 111-0859M | [1] | BOLT(M10X1.5X35-MM) | |
| 21. | 124-3815M | [4] | BOLT(M8X1.25X16-MM) | |
| 22. | 6I-0917M | [1] | BOLT(M6X1X25-MM) | |
| 23. | 6I-0217M | [5] | BOLT(M8X1.25X20-MM) | |
| 24. | 6I-4200M | [1] | BOLT(M10X1.5X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
