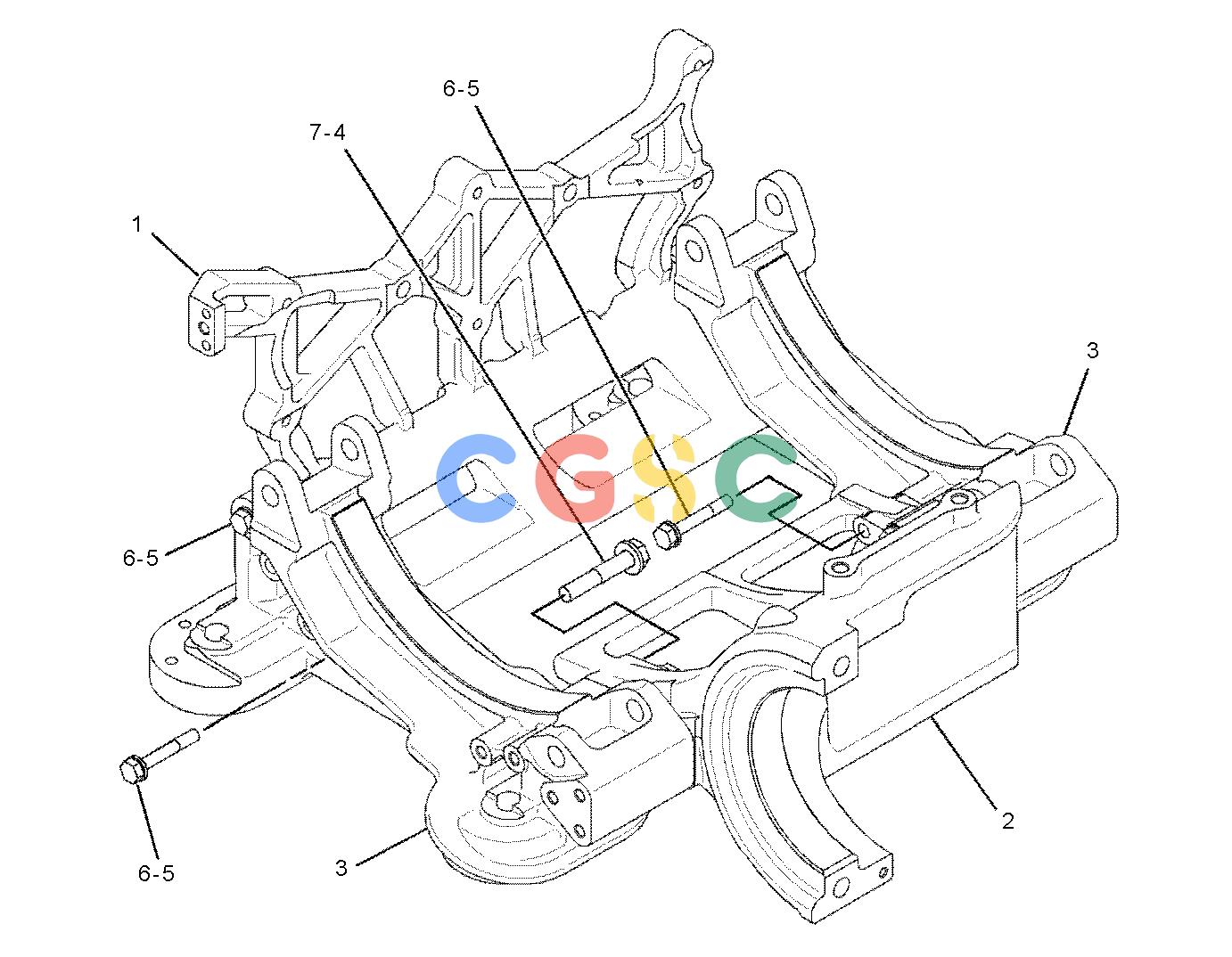

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 352-3844 | [1] | BRACKET AS | |
| 6V-3538 | [4] | DOWEL | ||
| 2. | 365-4742 | [1] | BRACKET | |
| 3. | 365-4743 | [2] | BRACKET | |
| 4. | 276-1326M | [5] | BOLT(M10X1.5X55-MM) | |
| 5. | 305-5385M | [9] | BOLT(M8X1.25X50-MM) | |
| 6. | 311-8366 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 344-1199 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| M | METRIC PART | |||
