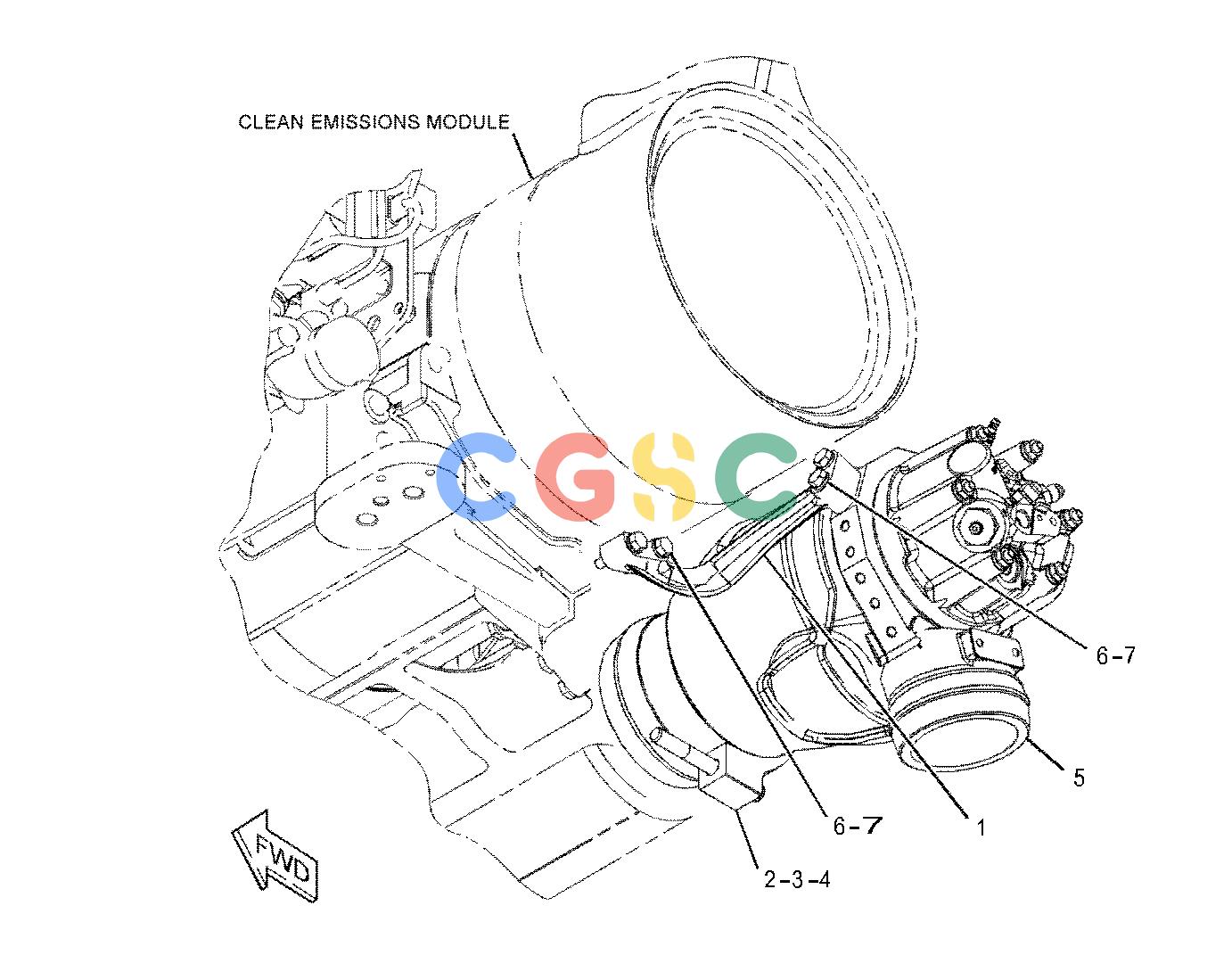

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 348-3376 | [1] | BRACKET-SUPPORT | |
| 2. | 348-3379 | [1] | CLAMP-SUPPORT | |
| 3. | 348-3426M | [2] | BOLT-12 POINT HEAD(M12X1.75X100-MM) | |
| 4. | 348-3427 | [2] | SPACER(14X20X14-MM THK) | |
| 5. | 355-0895Y | [1] | COMBUSTION GP-EXHAUST | |
| 6. | 8T-4197M | [4] | BOLT(M8X1.25X40-MM) | |
| 7. | 311-8366 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
