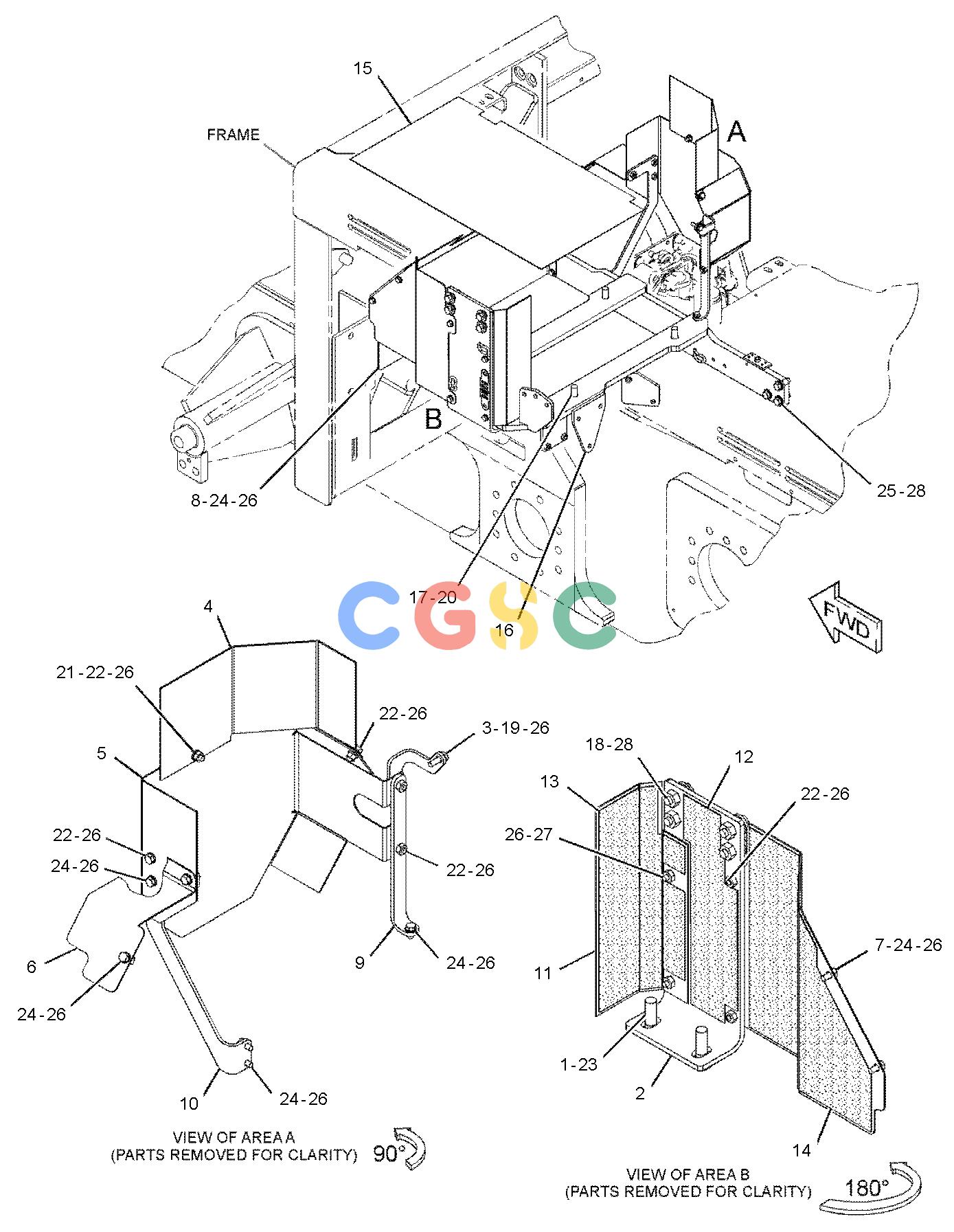

卡特零件查询（BG1055E） 342-7818: FRAME GP-MOUNTING
广数供应链运营团队, 16 02月, 2025，浏览：
681 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 120-5737 | [2] | WASHER(17.5X40X4-MM THK) | |
| 2. | 354-0811 | [1] | BRACKET AS | |
| 3. | 354-0846 | [1] | BRACKET | |
| 4. | 354-7095 | [1] | PLATE | |
| 5. | 354-7096 | [1] | PLATE | |
| 6. | 354-7097 | [1] | SHIELD-HEAT | |
| 7. | 354-7098 | [1] | PLATE | |
| 8. | 354-7099 | [1] | SHIELD AS | |
| 9. | 354-7100 | [1] | BAR AS | |
| 10. | 356-1610 | [1] | BRACKET AS | |
| 11. | 356-1612 | [1] | COVER AS | |
| 12. | 360-6975 | [1] | INSULATION | |
| 13. | 360-6976 | [1] | INSULATION | |
| 14. | 360-6977 | [1] | INSULATION | |
| 15. | 360-6979 | [1] | INSULATION | |
| 16. | 372-5194 | [1] | SUPPORT AS | |
| 17. | 198-4768 | [4] | WASHER-HARD(17.5X32X8-MM THK) | |
| 18. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 19. | 6V-3940M | [2] | BOLT(M8X1.25X25-MM) | |
| 20. | 6V-5686M | [4] | BOLT(M16X2X50-MM) | |
| 21. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 22. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4193M | [2] | BOLT(M16X2X50-MM) | |
| 24. | 8T-4200M | [9] | BOLT(M8X1.25X16-MM) | |
| 25. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-4224 | [22] | WASHER-HARD(8.8X16X2-MM THK) | |
| 27. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 28. | 8T-4956M | [10] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
