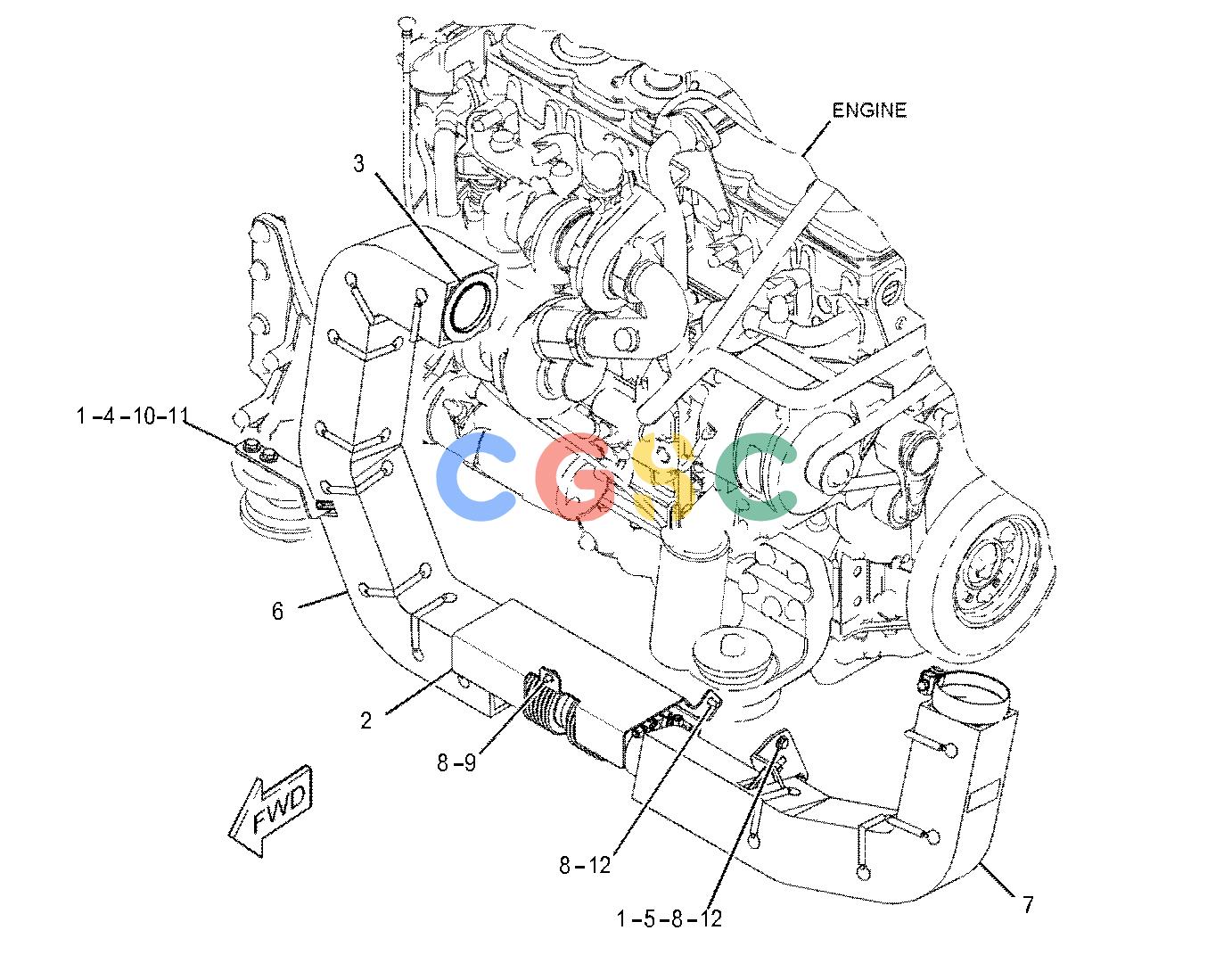

卡特零件查询（BG1055E） 342-7820: LINES GP-EXHAUST
广数供应链运营团队, 16 02月, 2025，浏览：
733 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 137-4499 | [2] | CLAMP AS | |
| 2. | 344-6661 | [1] | SHIELD | |
| 3. | 353-4454Y | [1] | LINES GP-EXHAUST(CLEAN EMISSIONS MODULE) | |
| 4. | 354-0818 | [1] | BRACKET | |
| 5. | 354-0819 | [1] | BRACKET | |
| 6. | 354-0837 | [1] | INSULATION | |
| 7. | 354-0838 | [1] | INSULATION | |
| 8. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 7X-2536M | [1] | BOLT(M8X1.25X14-MM) | |
| 10. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 11. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 12. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
