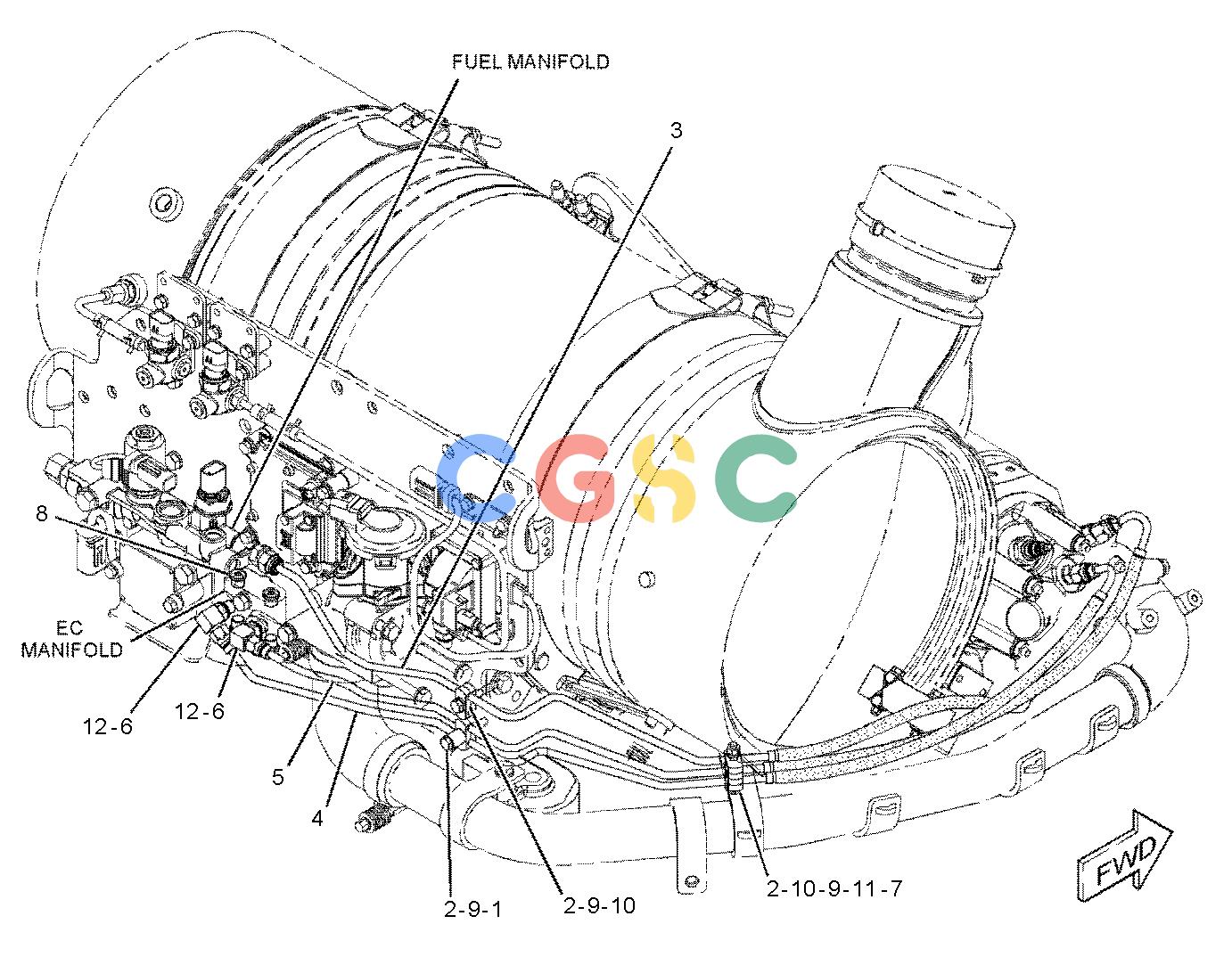

卡特零件查询（BG1055E） 355-8473: LINES GP-EXHAUST COMBUSTION
广数供应链运营团队, 16 02月, 2025，浏览：
438 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 127-1991 | [1] | SPACER(8.2X13X15-MM THK) | |
| 2. | 288-8580 | [8] | CLAMP-FUEL LINE | |
| 3. | 329-7928 | [1] | HOSE AS | |
| 4. | 352-9191I | [1] | HOSE AS | |
| 5. | 352-9192 | [1] | HOSE AS | |
| 6. | 030-7946 | [2] | ELBOW | |
| 7. | 198-4764 | [1] | WASHER-HARD(6.6X15X0.5-MM THK) | |
| 8. | 304-8008 | [4] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 9. | 344-1198 | [3] | BOLT(M6X1X45-MM) | |
| 10. | 344-1200 | [2] | WASHER-HARD(6.6X12X2-MM THK) | |
| 11. | 344-5673M | [1] | NUT(M6X1-THD) | |
| 12. | 6V-9027 | [2] | SEAL-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
