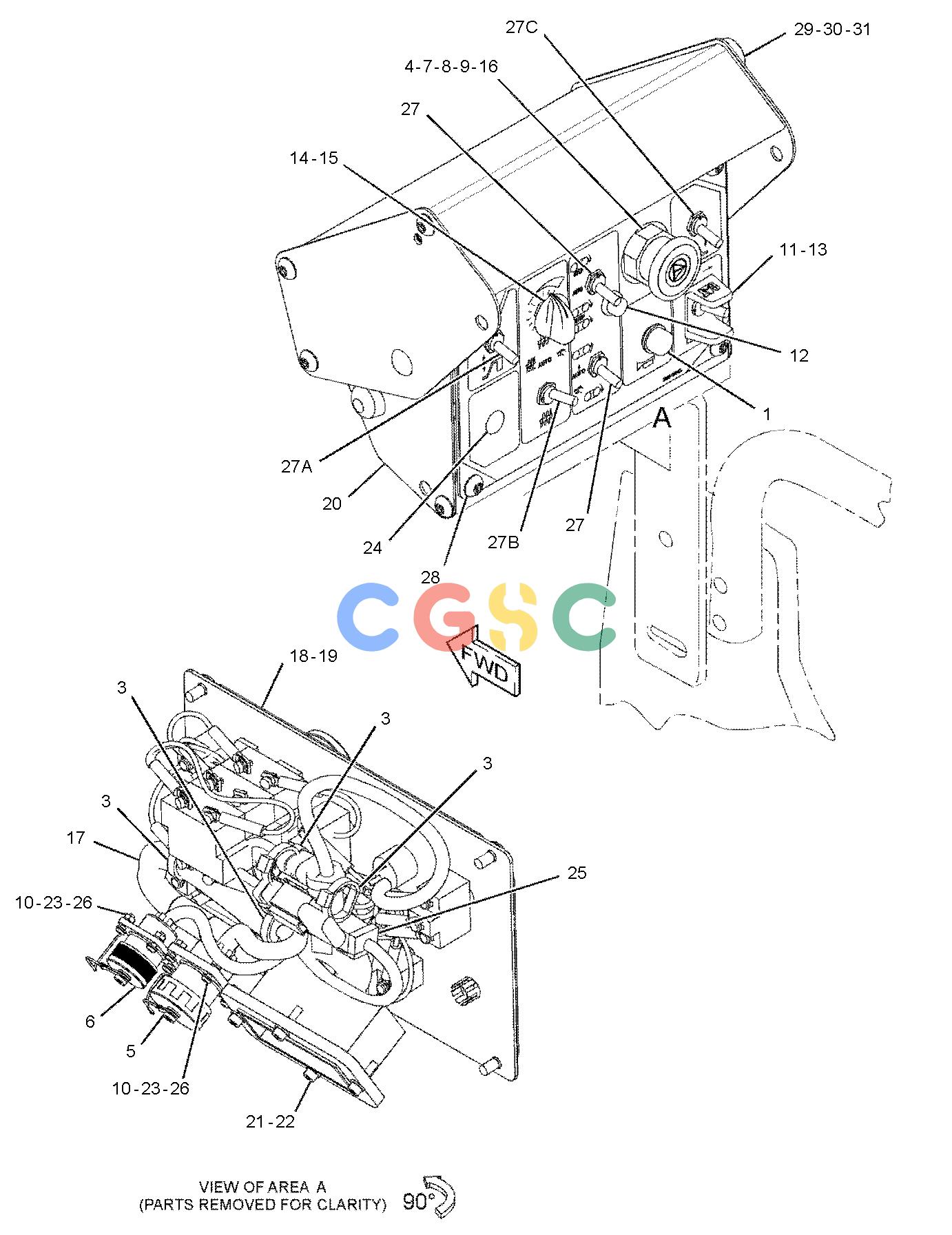

| 1. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 3. | 3S-2093 | [7] | STRAP-CABLE | |
| 4. | 116-5270 | [1] | LAMP(24-VOLT)(EMERGENCY STOP) | |
| 5. | 7R-3029 | [1] | CAP-DUST | |
| 6. | 8D-9537 | [1] | CAP-DUST | |
| 7. | 116-5275 | [1] | SWITCH GP-PUSH BUTTON(OPERATOR)(EMERGENCY STOP) | |
| 8. | 116-5277 | [2] | BLOCK(CONTACT) | |
| 9. | 116-6565 | [1] | BLOCK AS(LIGHT) | |
| | 8L-9801 | [1] | LAMP(12-VOLT) | |
| 10. | 155-4098M | [10] | SCREW-BUTTON HEAD(M3X0.5X1-MM) | |
| 11. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH, RH) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 12. | 250-2299 | [1] | LAMP AS-LED(24-VOLT, GREEN) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 13. | 265-9984 | [1] | BRACKET | |
| 14. | 378-3321 | [1] | POTENTIOMETER AS(AUGER CONTROL) | |
| 15. | 316-5717 | [1] | KNOB AS(POTENTIOMETER) | |
| 16. | 347-8607 | [1] | KNOB(PARKING BRAKE) | |
| 17. | 352-0670 | [1] | HARNESS AS-BOX | |
| | 9X-3401 | [30] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [11] | PLUG-SEAL | |
| | 5S-3657 | [1] | RECEPTACLE AS-CONNECTOR(10-PIN) | |
| | 9X-0481 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| | 9X-1343 | [1] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 180-9340 | [6] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 189-3158 | [1] | SUPPRESSOR-ARC | |
| | 5P-2321 | [3] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 9G-3186 | [2] | TERMINAL-FORK(18-GA TO 22-GA, NO. 8 SCREW) | |
| | 5P-3059 | [23] | TERMINAL-FORK(18-GA TO 22-GA, NO. 6 SCREW) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(15-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 18. | 355-0543 | [1] | FILM-IDENTIFICATION(PANEL) | |
| 19. | 355-0545 | [1] | PLATE | |
| 20. | 360-5622Y | [1] | BOX GP-CONTROL(RH) | |
| 21. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 22. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 23. | 3C-6969M | [10] | NUT(M3X0.5-THD) | |
| 24. | 3D-9872 | [1] | PLUG-BUTTON | |
| 25. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 26. | 9B-1117 | [20] | LOCKWASHER | |
| 27. | 9G-0011 | [2] | SWITCH AS-TOGGLE(CONVEYOR CONTROL) | |
| 27A. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL, LH) | |
| 27B. | 9G-0011 | [1] | SWITCH AS-TOGGLE(AUGER CONTROL) | |
| 27C. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT CONTROL, RH) | |
| | | | (EACH SWITCH AS-TOGGLE INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 28. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 29. | 107-5014 | [1] | KNOB(CONTROL BOX) | |
| 30. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 31. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
