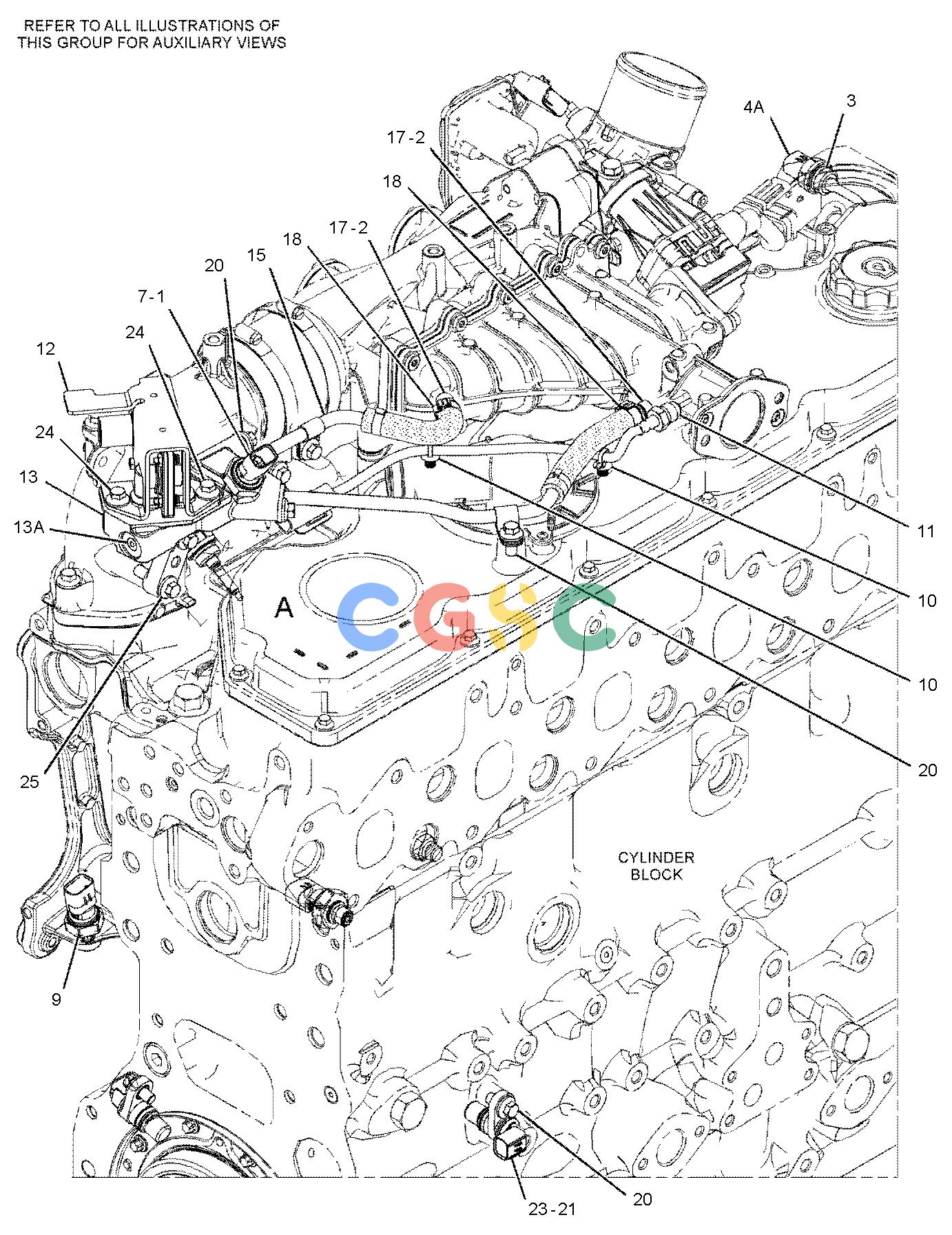

卡特零件查询（BG1055E） 356-1096: SENSOR GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 199-9252 | [2] | SEAL-O-RING | |
| 2. | 199-9267 | [4] | SEAL-O-RING | |
| 3. | 199-9751 | [1] | SEAL-O-RING | |
| 4. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(AIR INLET MANIFOLD) | |
| 4A. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(COOLANT TEMPERATURE) | |
| 5. | 276-5603 | [1] | SEAL-O-RING | |
| 6. | 320-3060 | [1] | SENSOR GP-PRESSURE(ENGINE OIL PRESSURE) | |
| 7. | 320-3061 | [1] | SENSOR GP-PRESSURE(ENGINE OIL, LOW)(COOLED EXHAUST GAS) | |
| 8. | 320-3062 | [1] | SENSOR GP-PRESSURE(BOOST) | |
| 9. | 320-3063 | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 10. | 332-7865 | [2] | TIE-CABLE | |
| 11. | 339-8822 | [1] | SENSOR AS-TEMPERATURE(NOX REDUCTION SYSTEM) | |
| 12. | 397-2874 | [1] | SENSOR GP-PRESSURE(NRS DIFFERENTIAL) | |
| | 341-0643 | [2] | SEAL-RECTANGULAR | |
| 13. | 354-8278 | [1] | MANIFOLD AS | |
| 13A. | 295-6661 | [1] | PLUG | |
| | | [1] | MANIFOLD |
| 14. | 385-4319 | [1] | PIPE AS | |
| 14A. | 330-8196 | [2] | SEAL-O-RING | |
| 15. | 385-4320 | [1] | PIPE AS | |
| 15A. | 330-8196 | [2] | SEAL-O-RING | |
| 16. | 355-9555 | [1] | BRACKET | |
| 17. | 358-9934 | [2] | UNION | |
| 18. | 385-0697 | [2] | CLAMP | |
| 19. | 359-5102 | [1] | BRACKET AS | |
| 20. | 124-3815M | [7] | BOLT(M8X1.25X16-MM) | |
| 21. | 228-4947 | [2] | SEAL-O-RING | |
| 22. | 232-3861 | [1] | PLUG(BLANKING) | |
| 23. | 238-0120 | [1] | SENSOR GP-SPEED(SECONDARY, TIMING) | |
| 23A. | 238-0120 | [1] | SENSOR GP-SPEED(PRIMARY, TIMING) | |
| 24. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| 25. | 6I-0254M | [3] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
